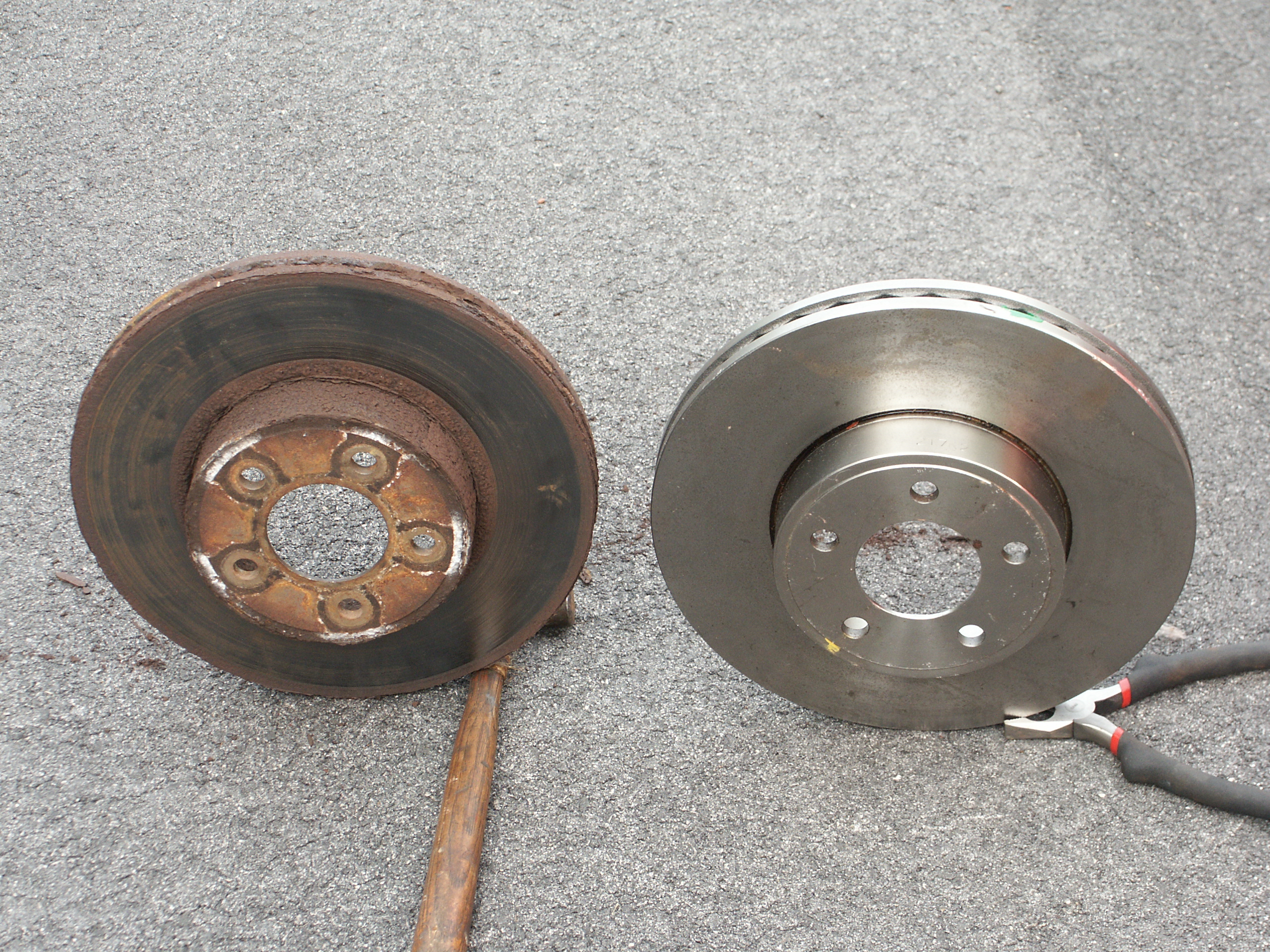

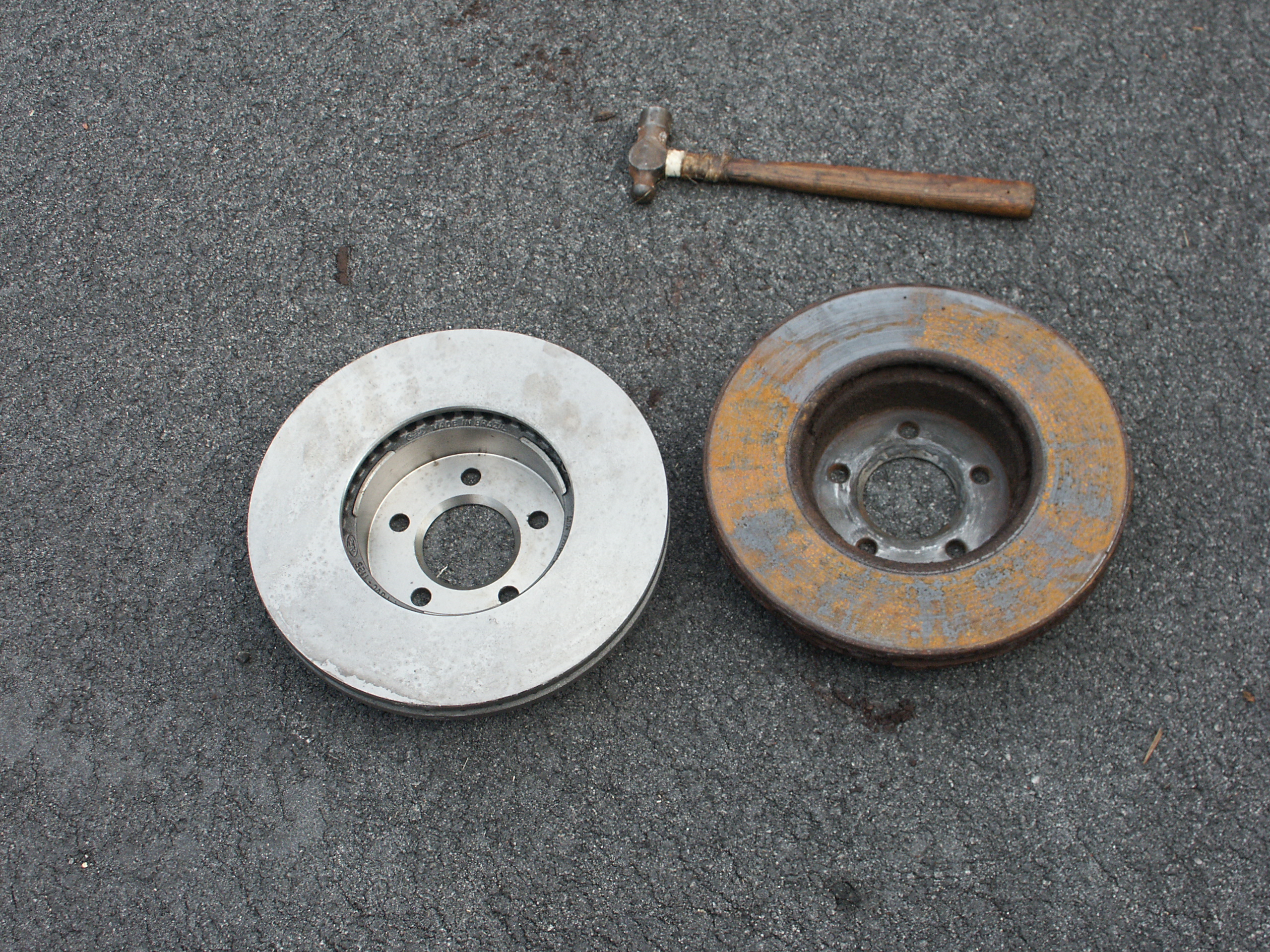

Below are pictures of two brake rotors for a 2000 ford crown victoria.
One is an original equipment ford rotor that has been installed on the

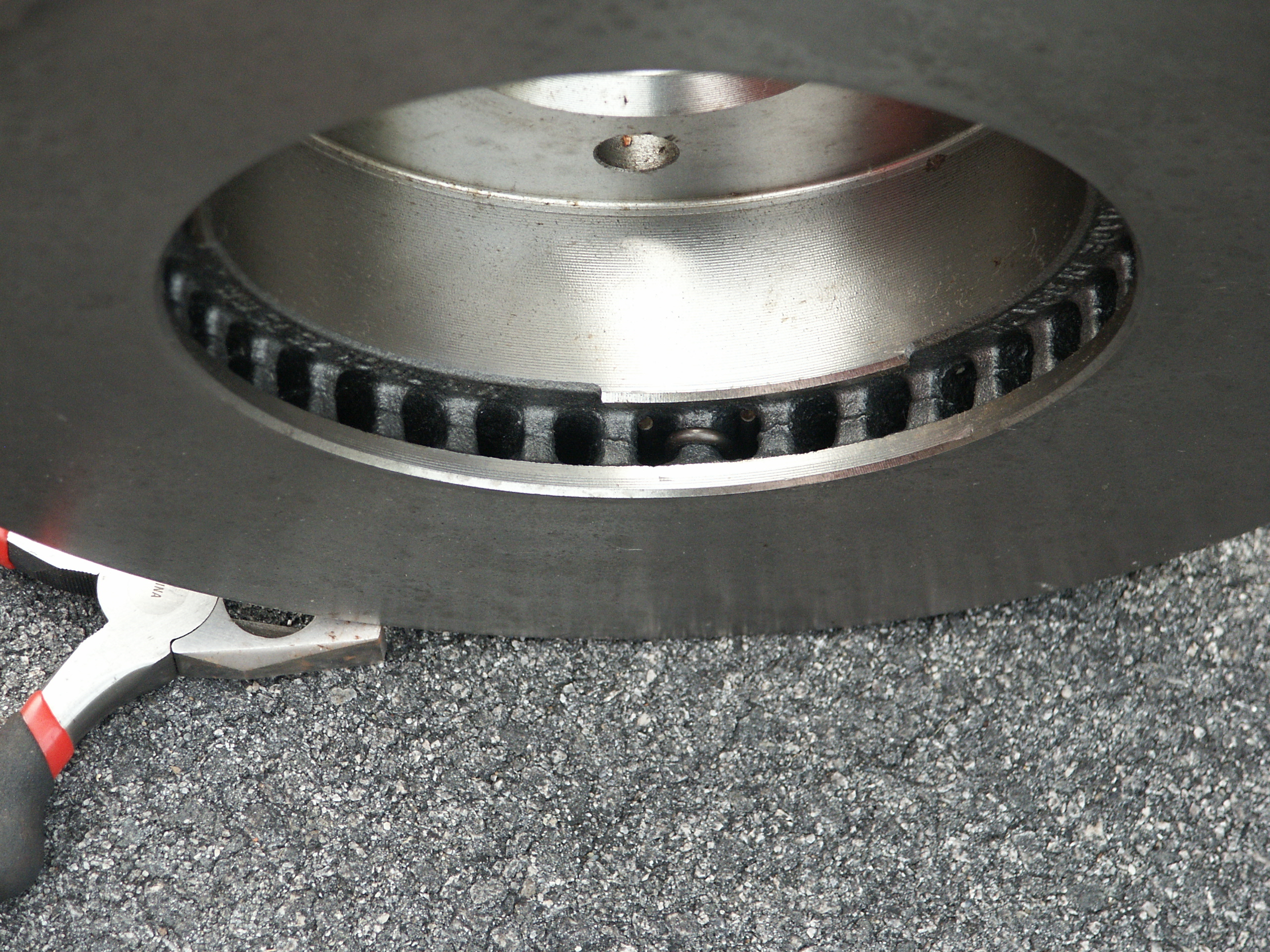

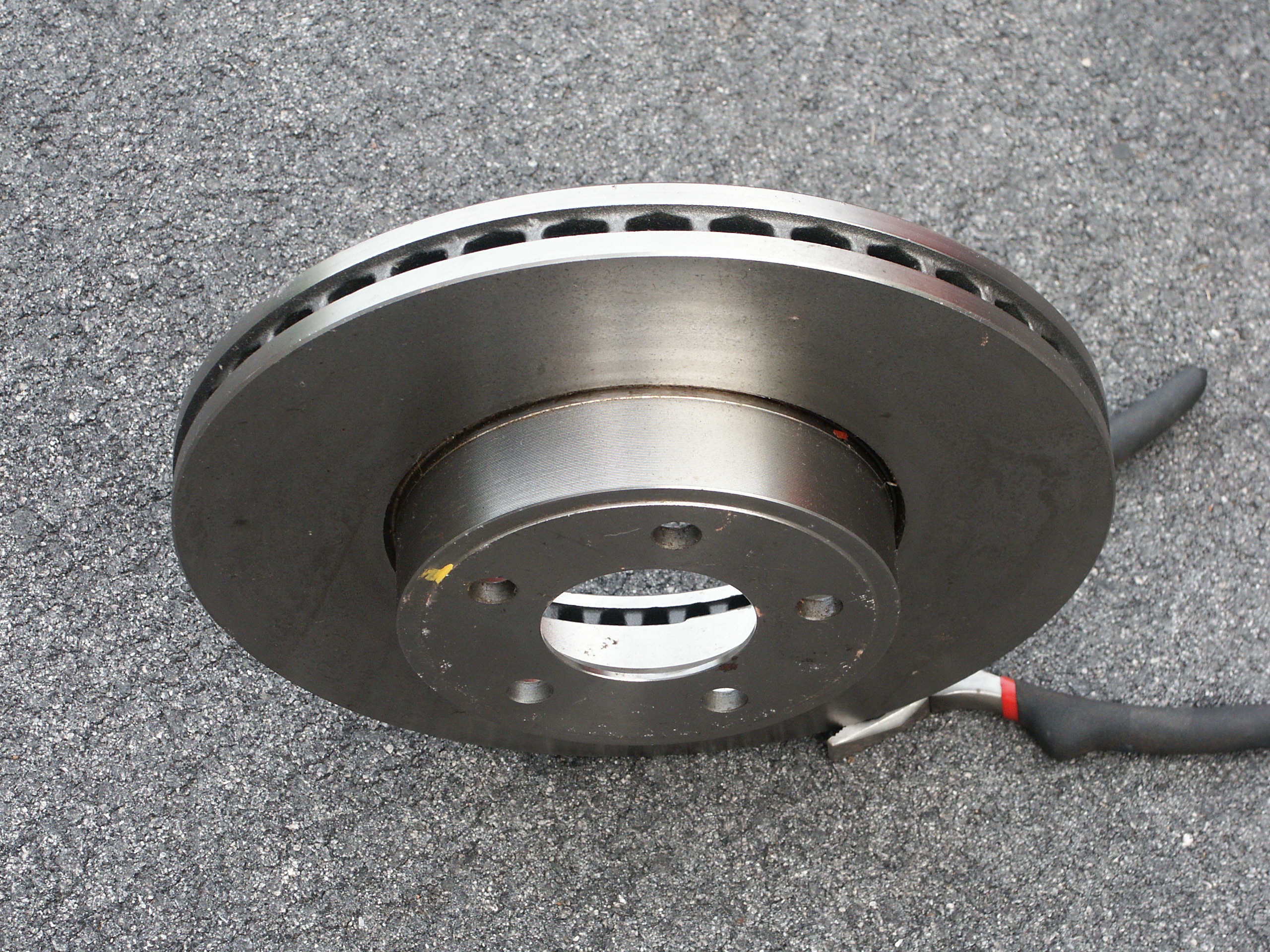

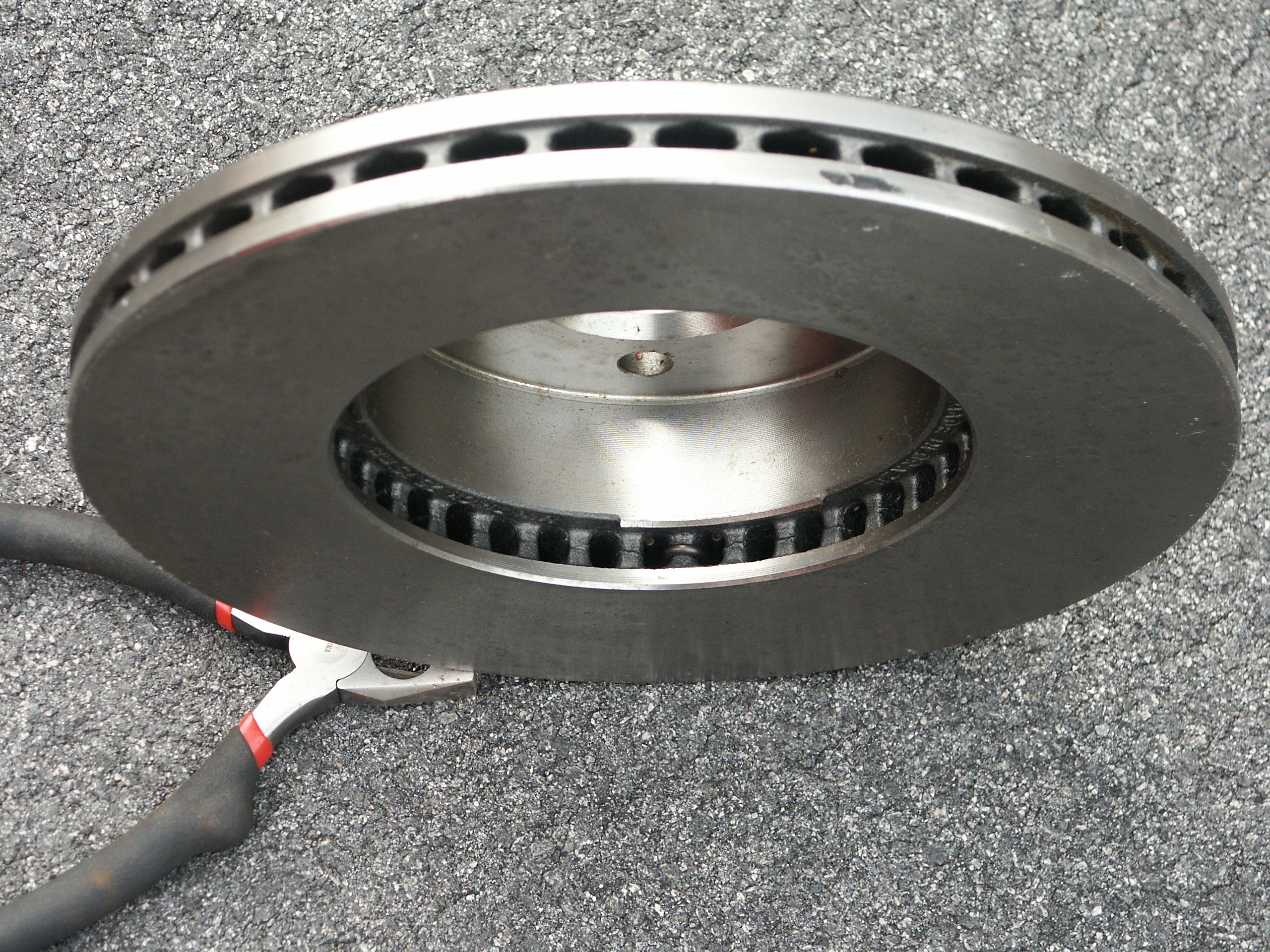

car for about 10 years ago. The other is a New Old Stock (NOS) rotor
that was produced about 10 years ago and has been stored in a humidity
controlled enviroment since manufacture.

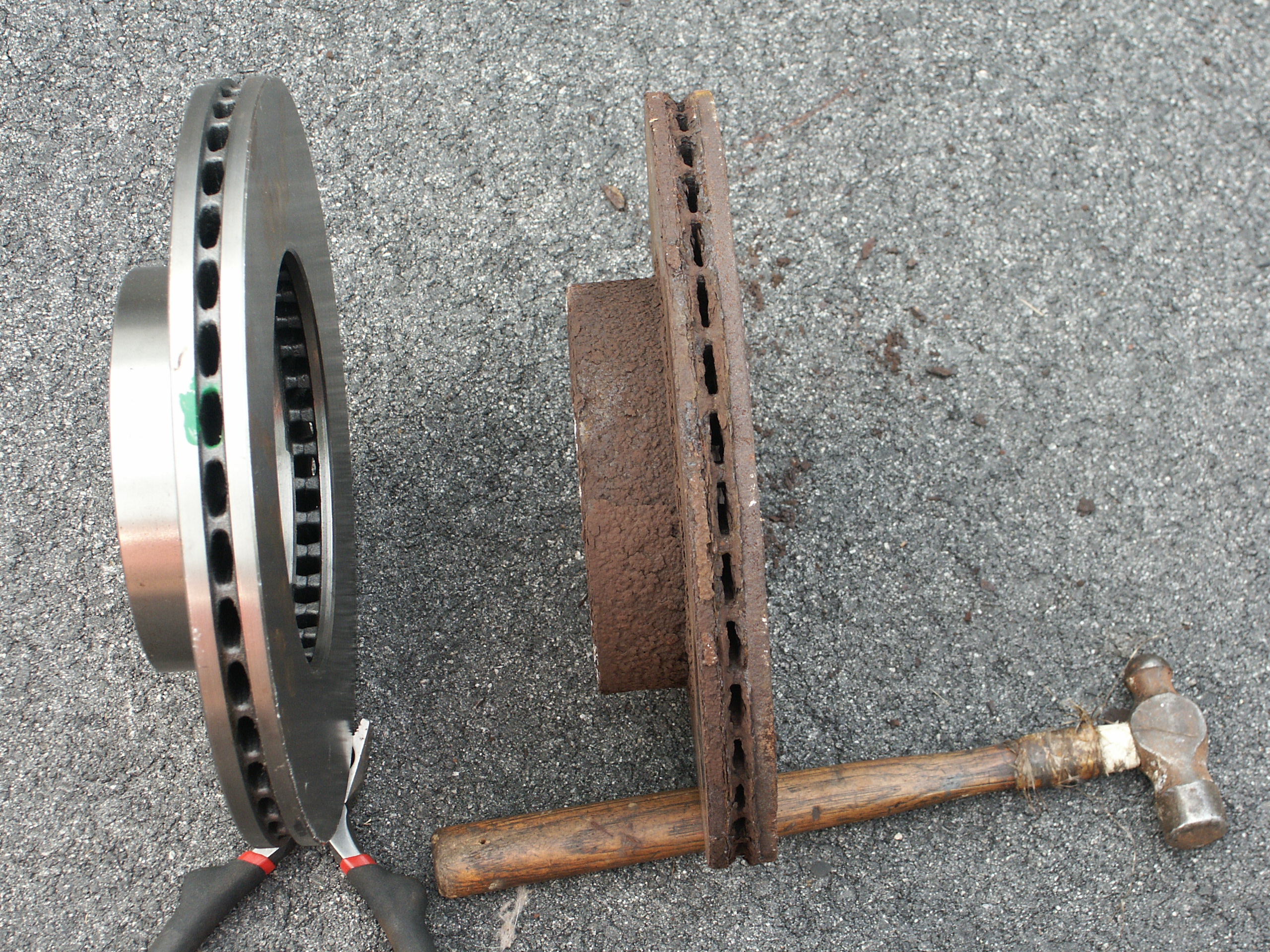

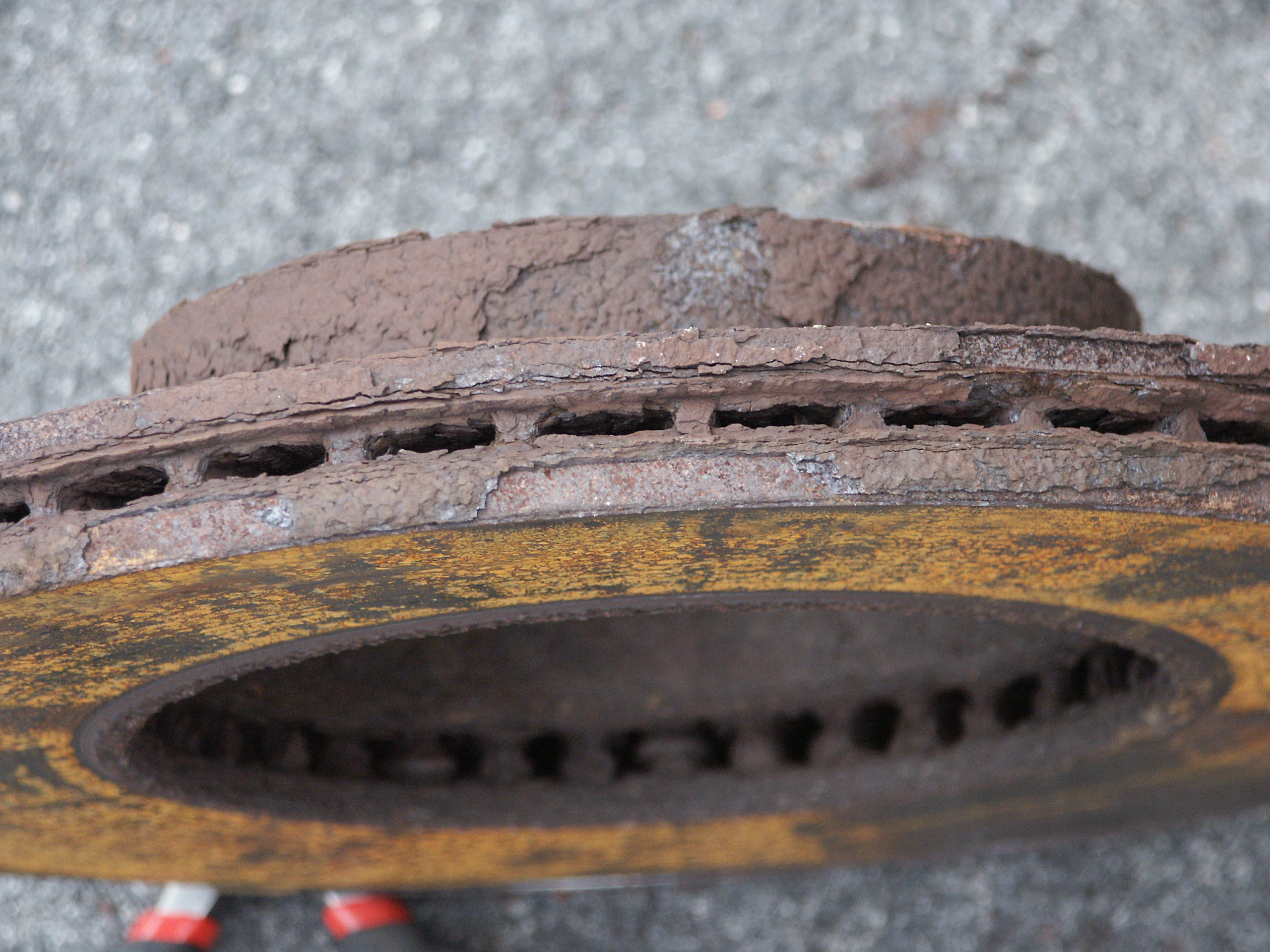

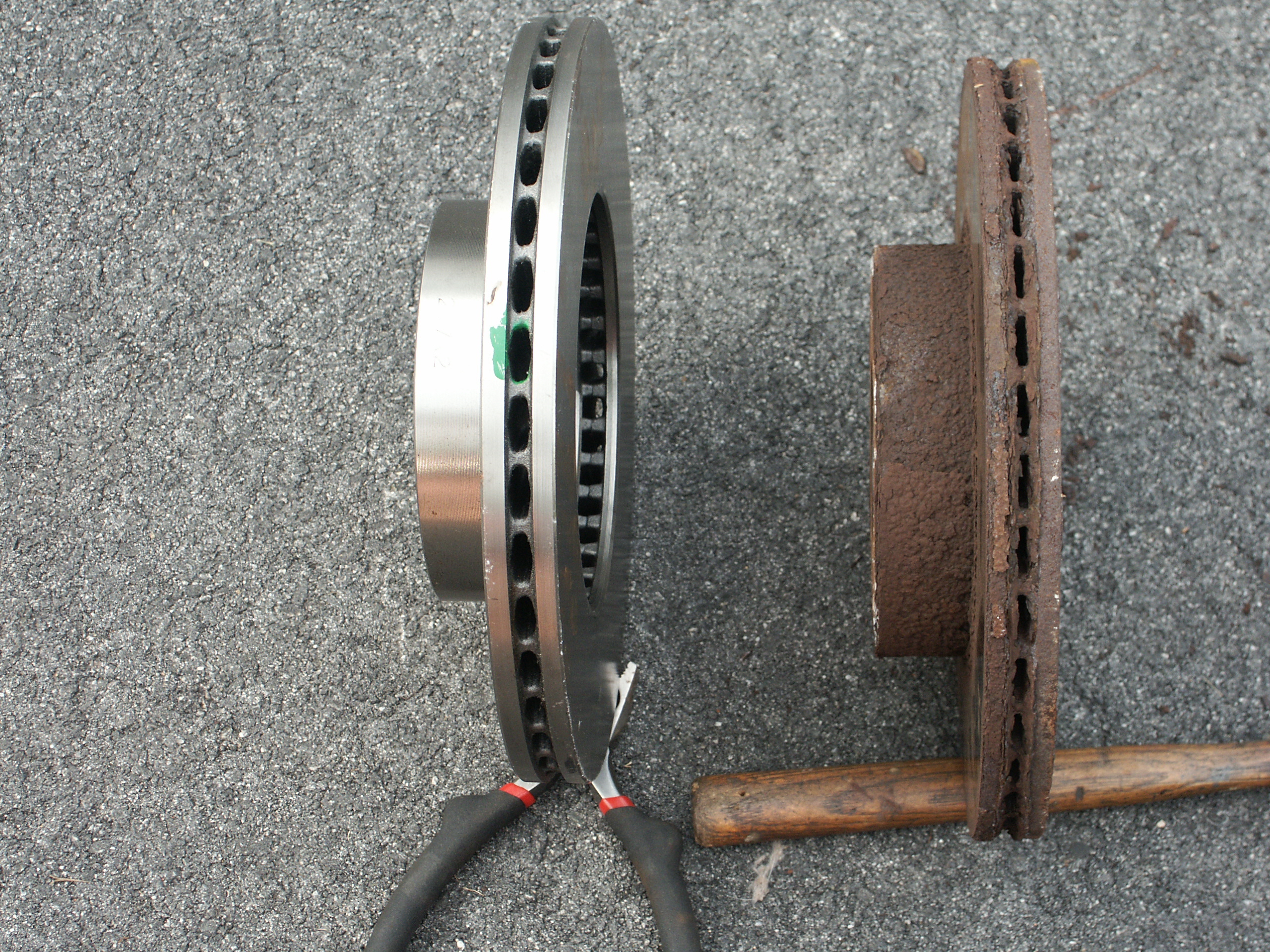

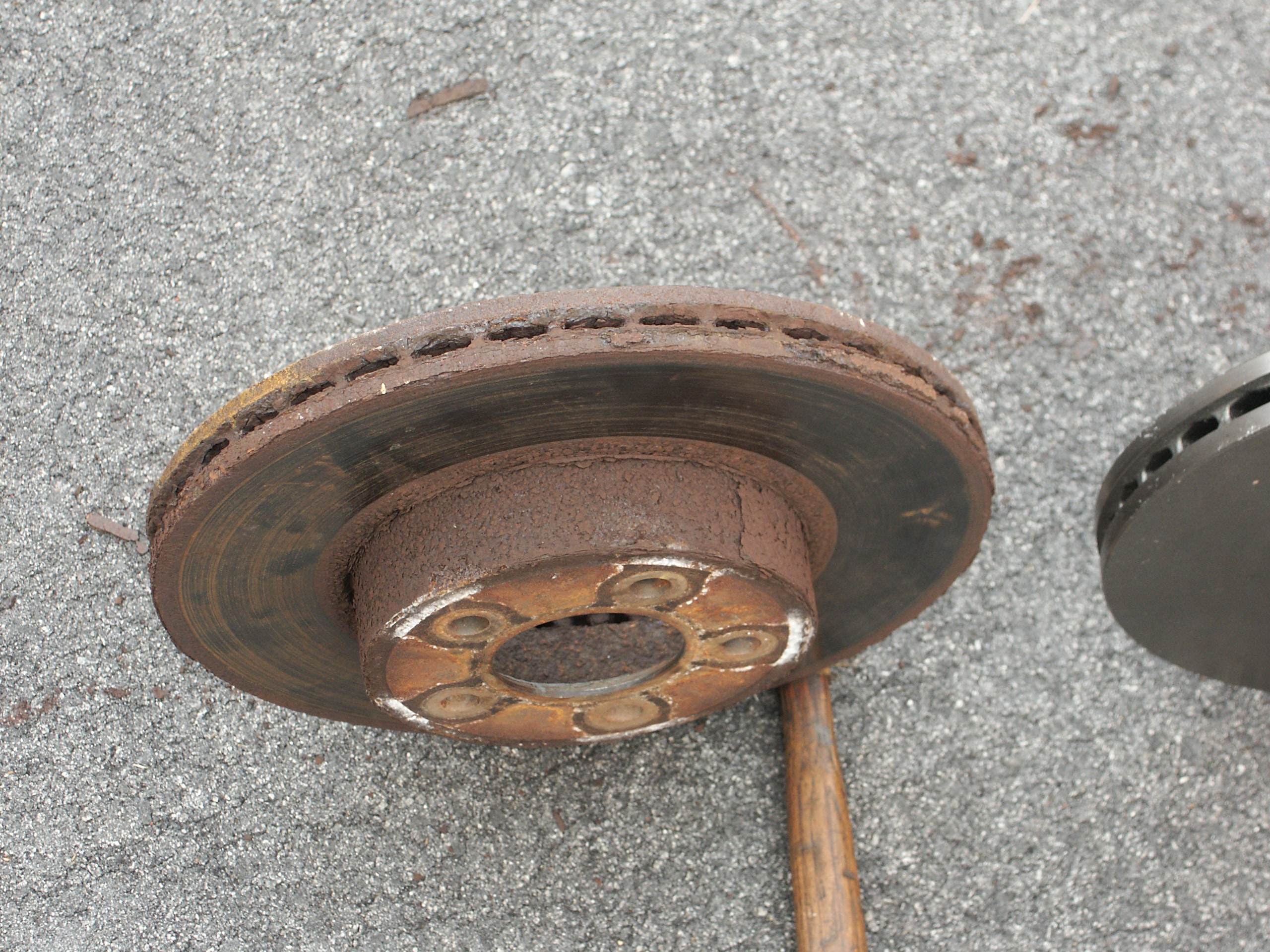

These two rotors were made using the same castings. But do you notice
how the rotor on the right looks very different near the cooling vanes
due to all the thick rust scale?
In the northeastern united states, massive quantities of chloride salts
are applied to the roads during the winter to clear snow and ice. This
makes driving on roads around here similar to a salt water marine

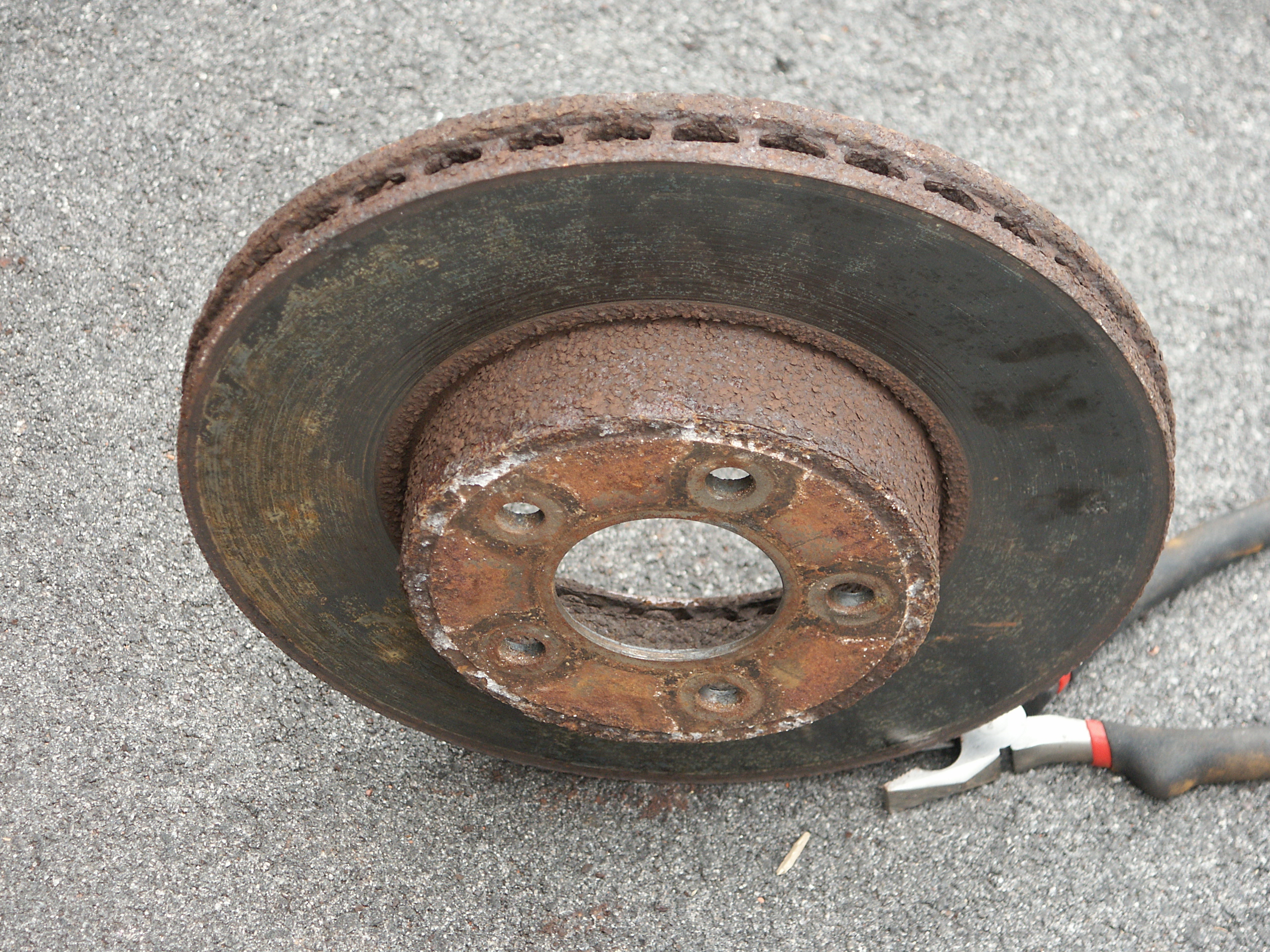

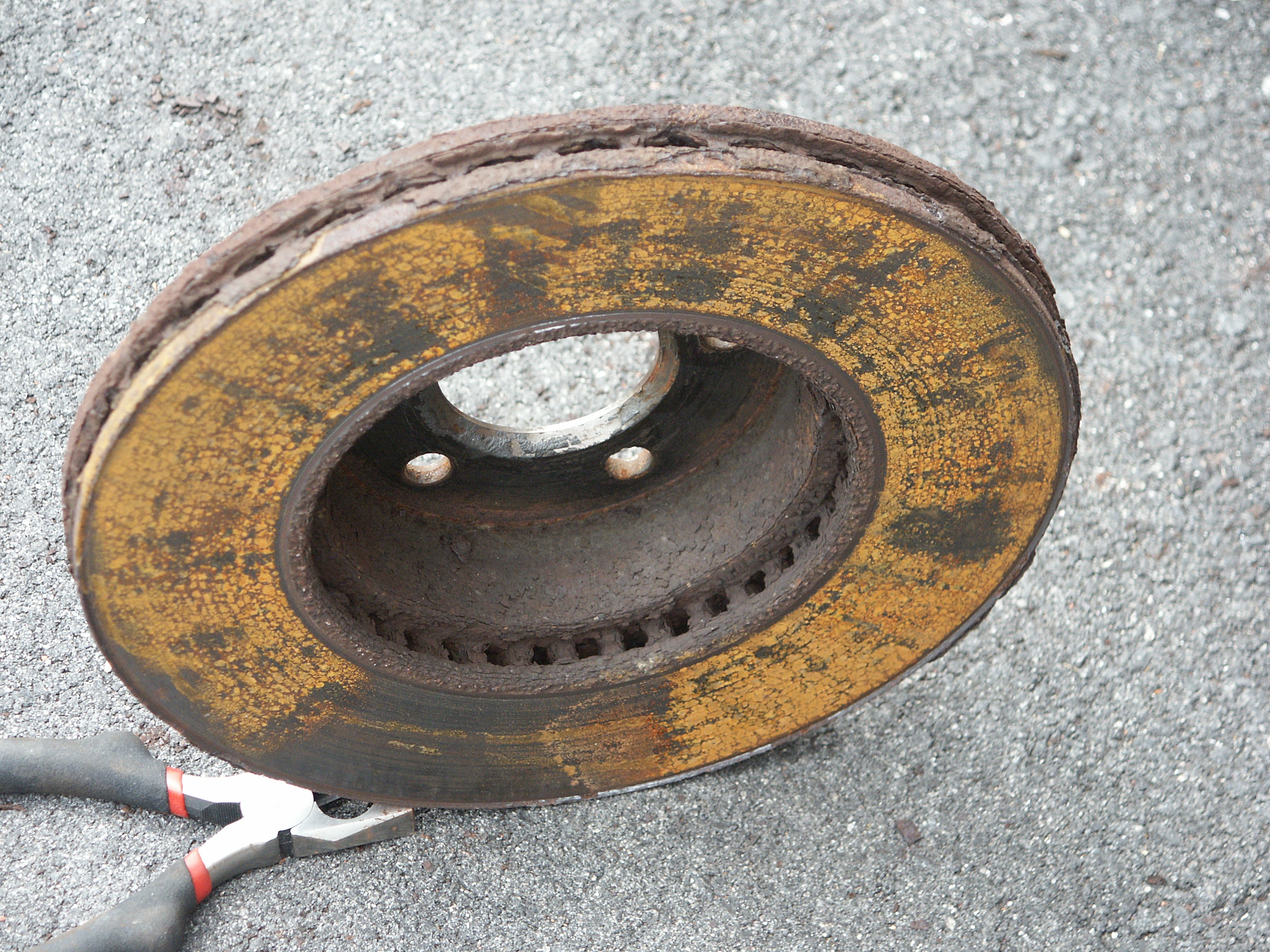

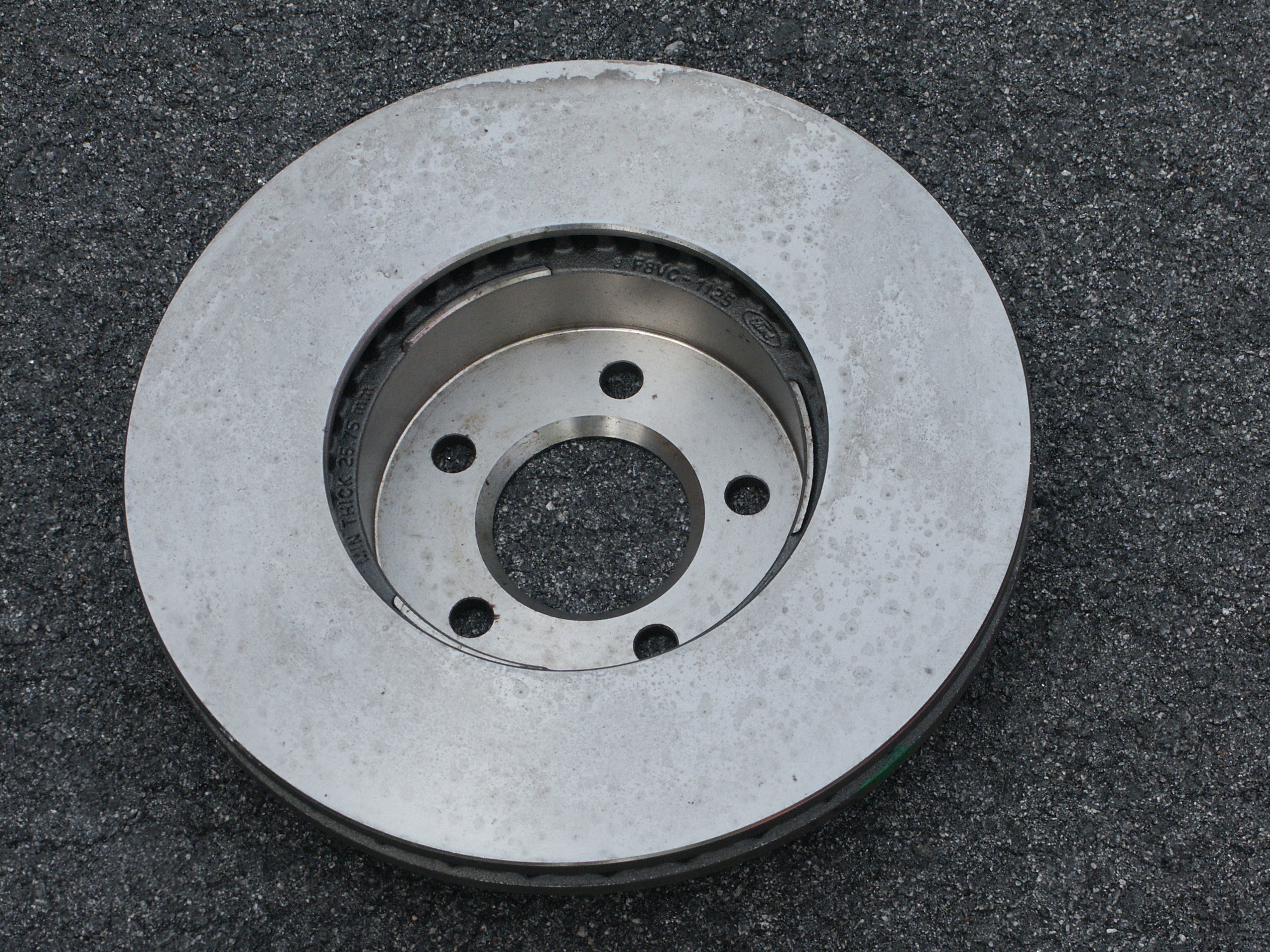

Before the rotor was removed, the car was parked outside overnight. In
the morning, a layer of condensation was present on the car causing
flash rust of the rotor except for where the pad was.

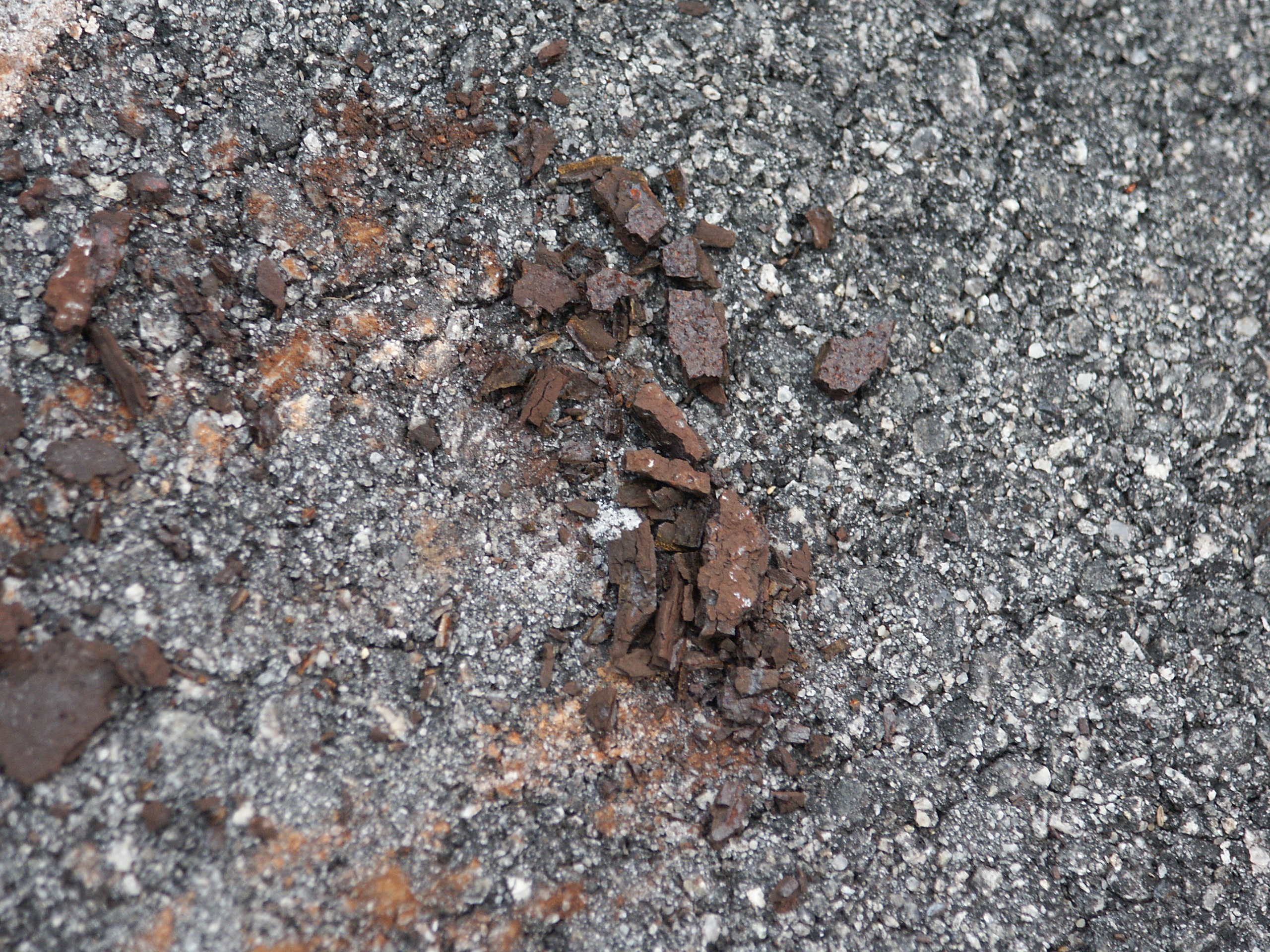

Whenever the rotor with all the thick puffy rust would be moved around,
a layer of rust scale would fall off. Here's a little bit of it.

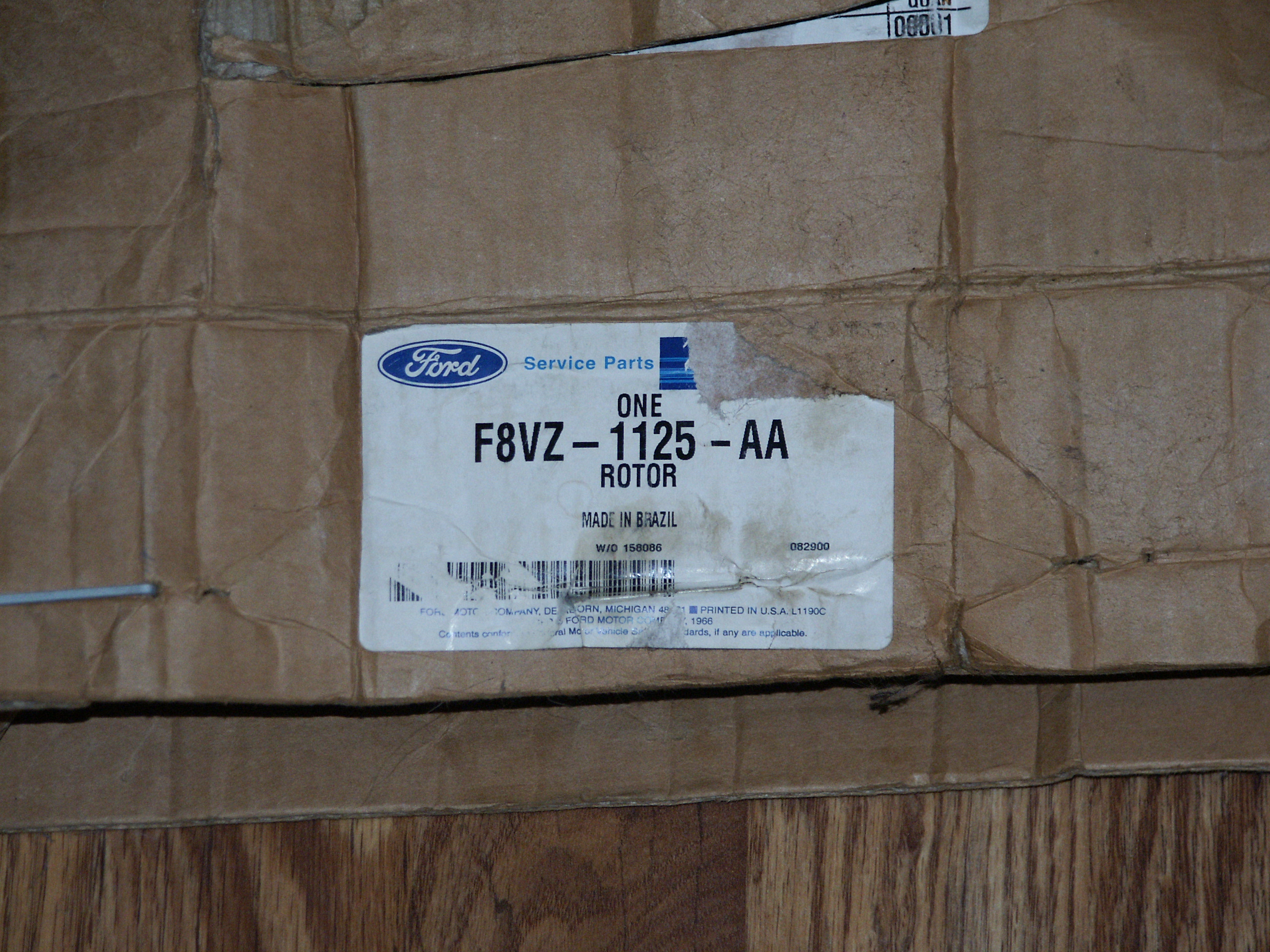

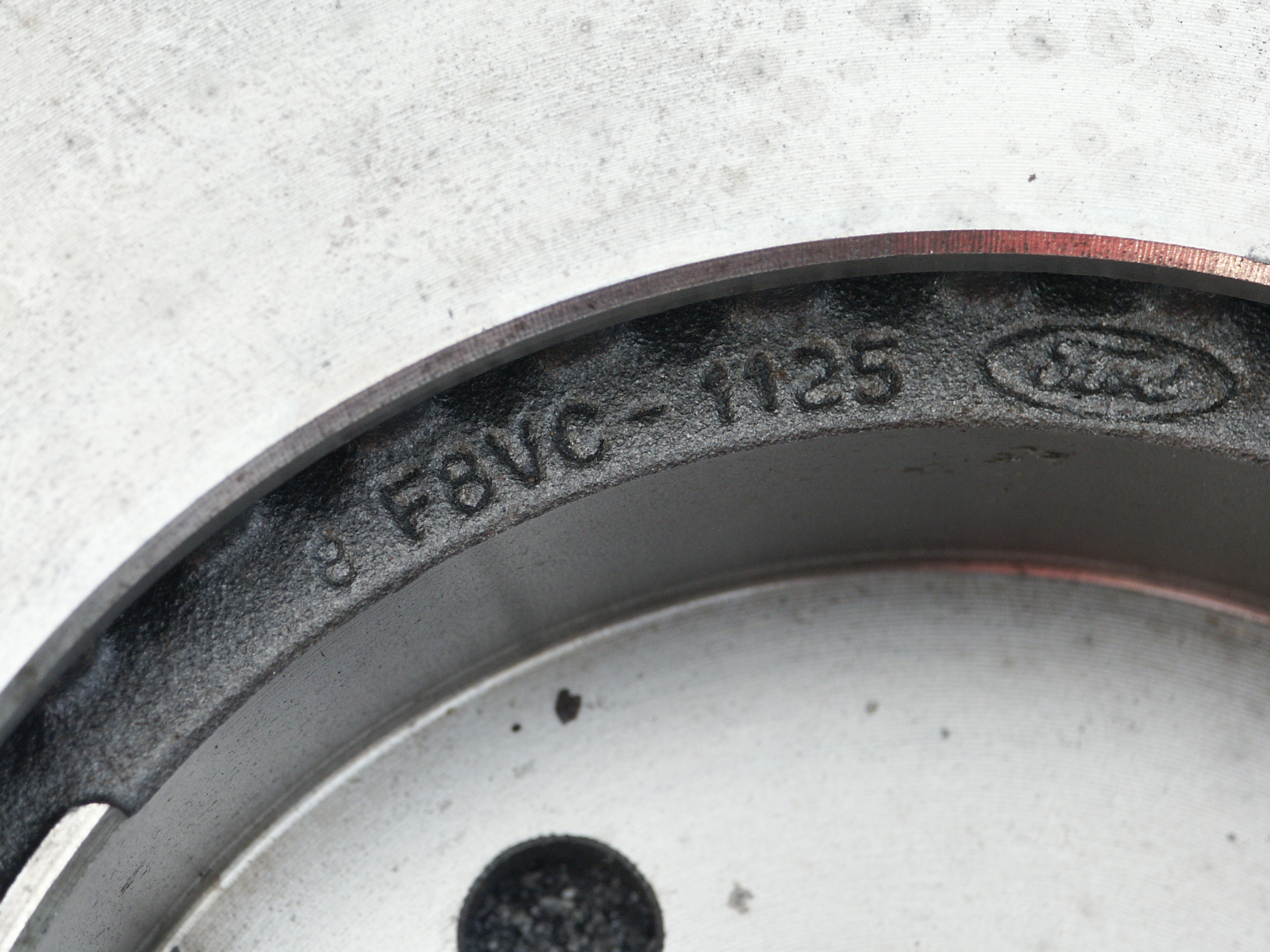

The F8VZ-1125-AA part number tag also has a date code on it of 08/29/00.

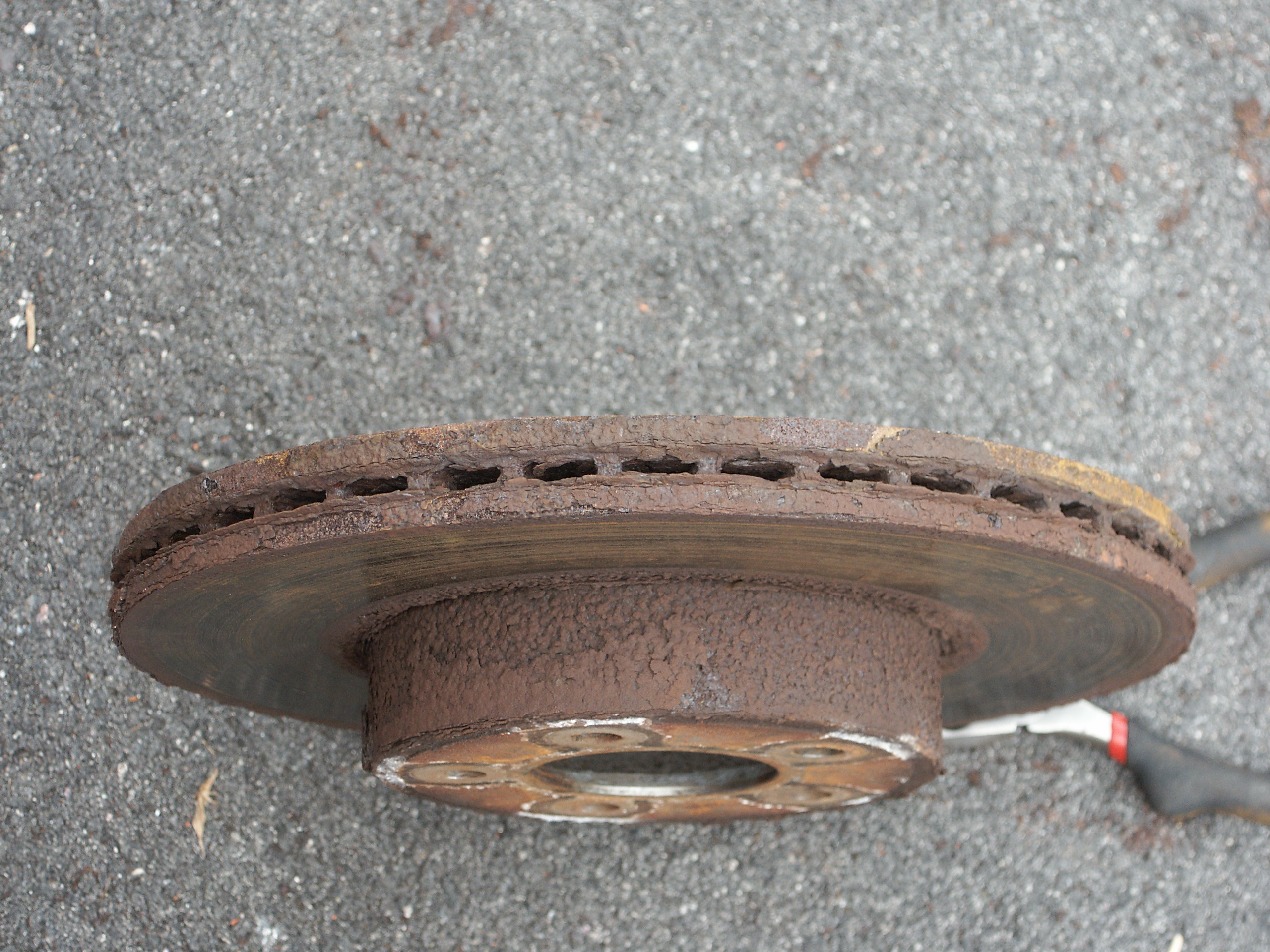

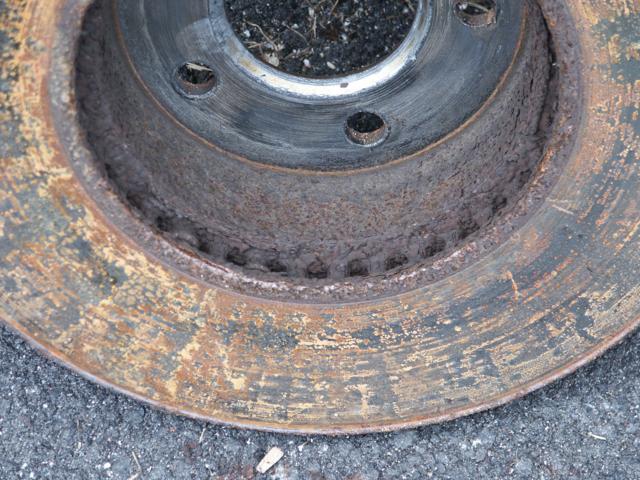

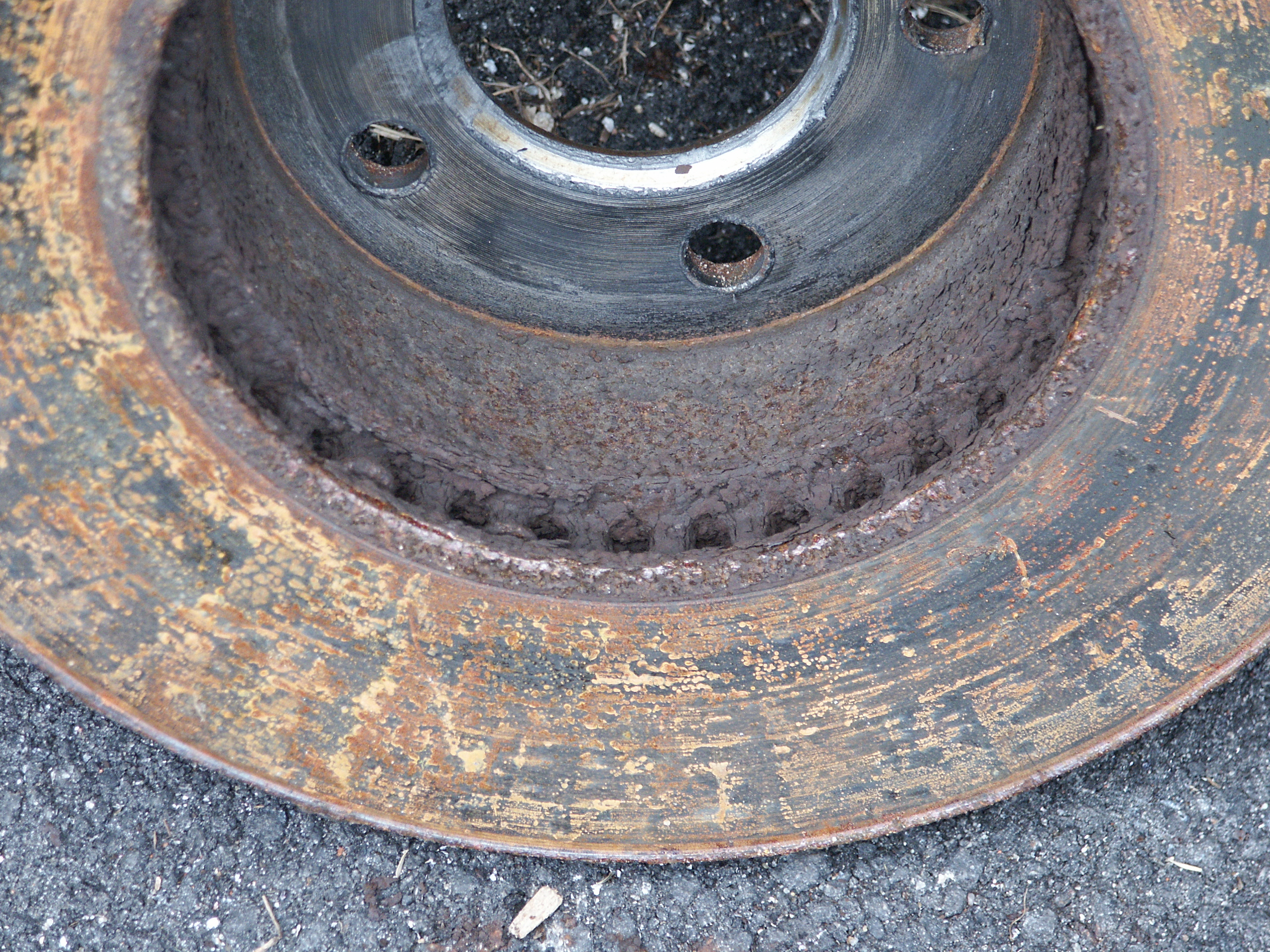

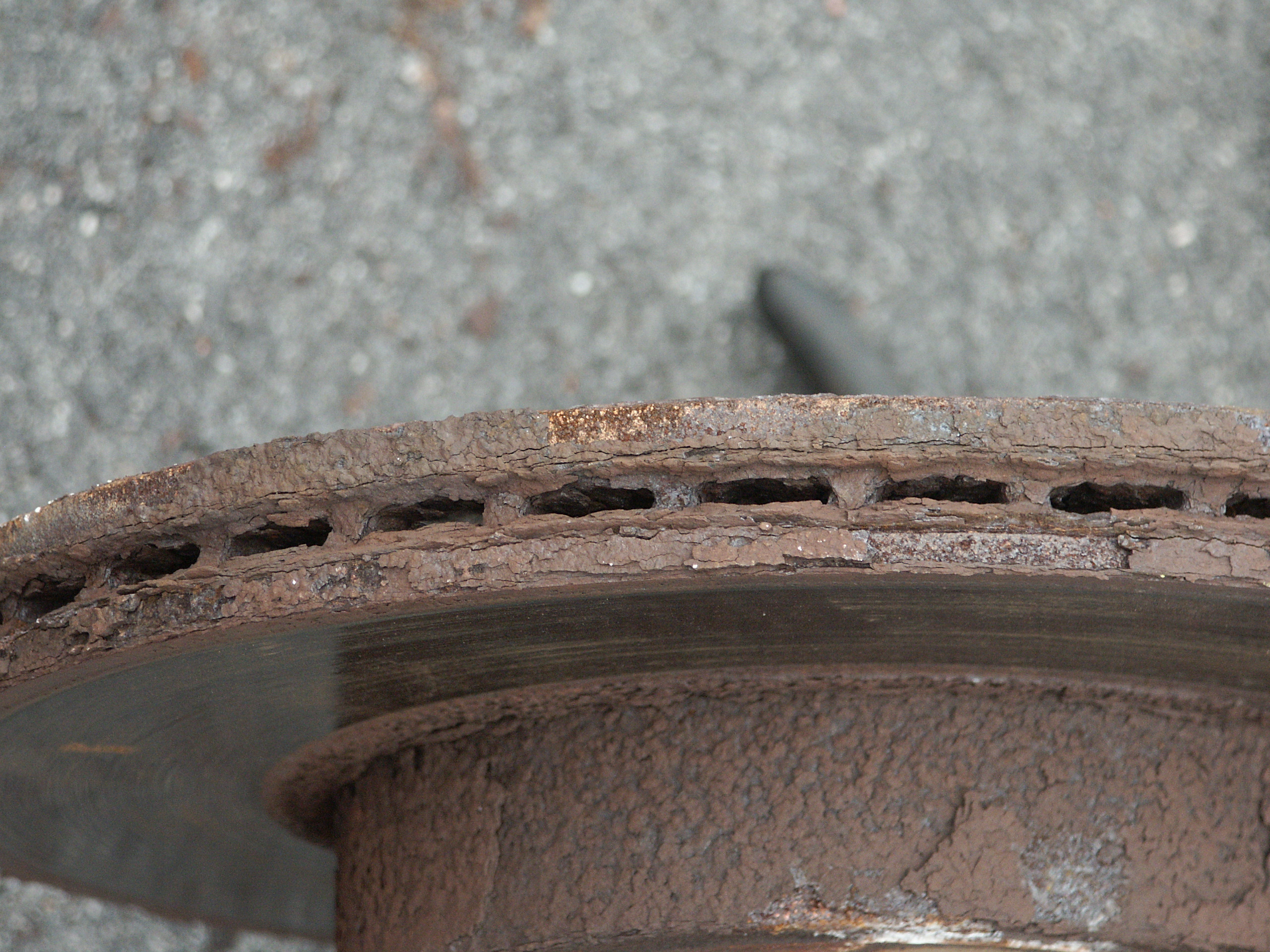

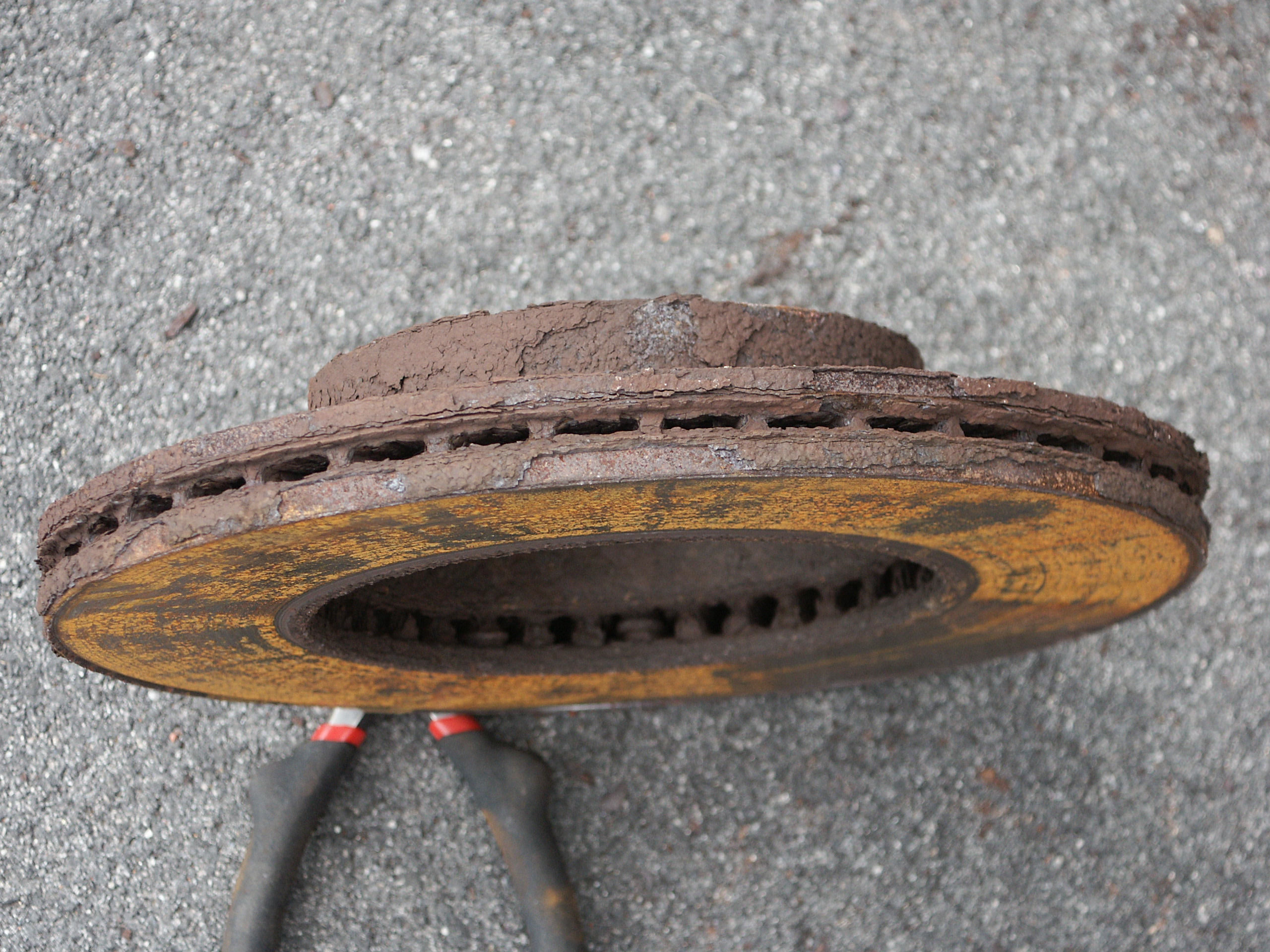

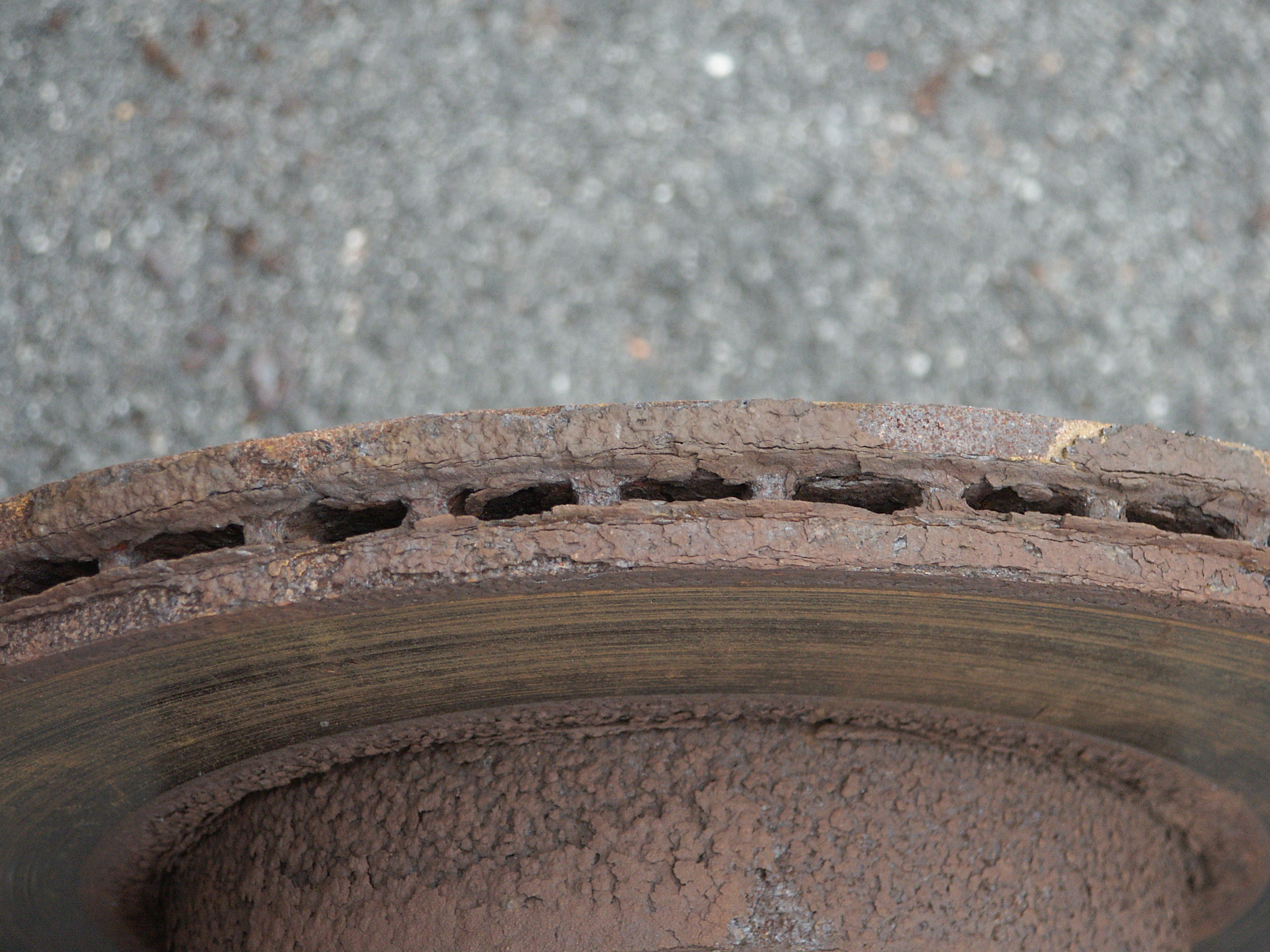

Thick bubbly rust like this restricts airflow through the cooling
vanes. This can cause the rotor to overheat. There have also been reports of aftermarket
"lightweight rotors" breaking in two when they get rusted this bad.
The cooling vanes are designed to move lots of air through. During the
winter months, the air on the roads will have a very high salt
concentration. This stuff builds up and leaves a salt crust layer which
never really evaporates either. So even during the non-salty summer
months, the rotor is still covered in salt from the wintertime.

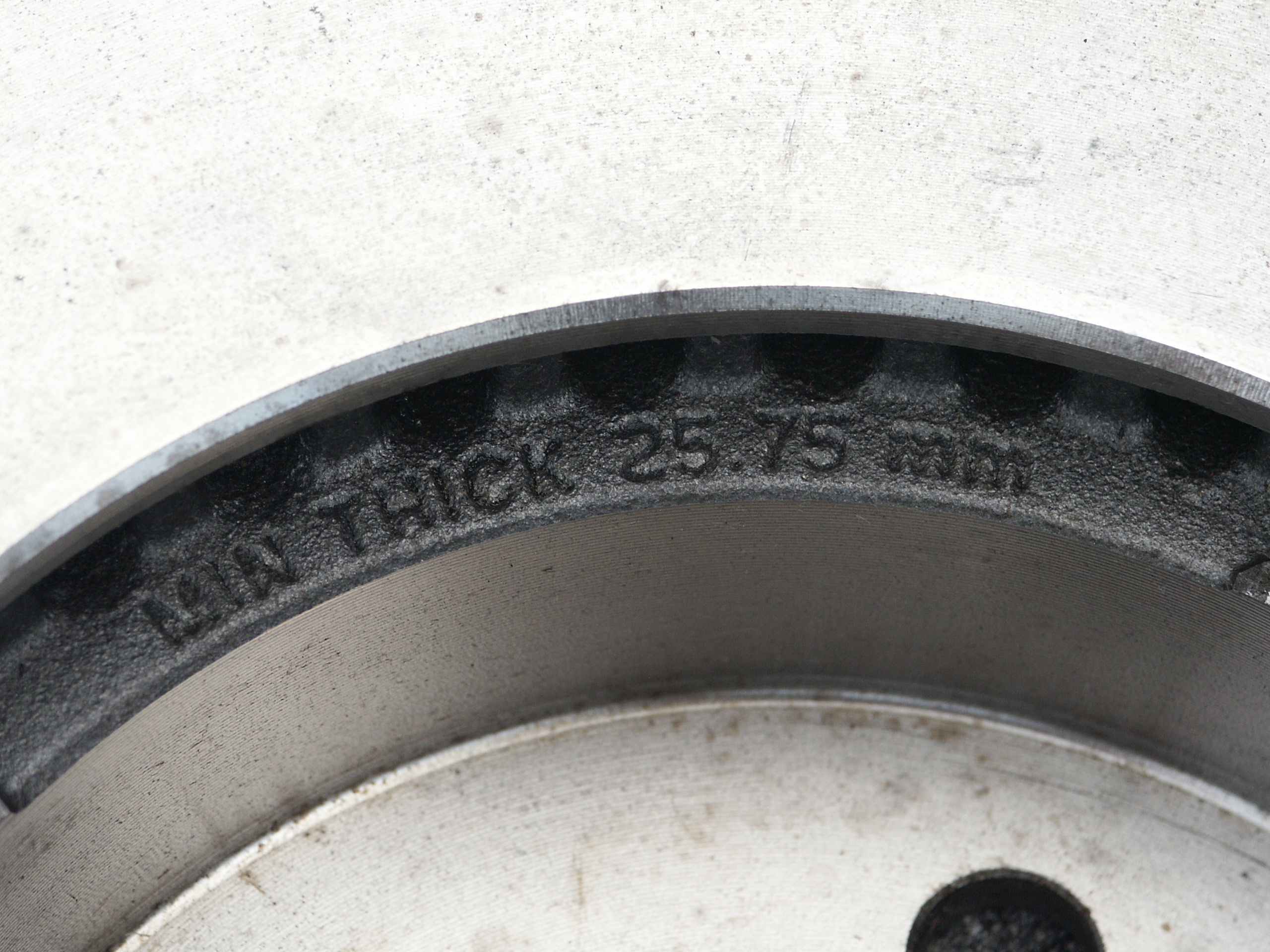

This is an oem ford rotor for the 1998-2002 crownvics

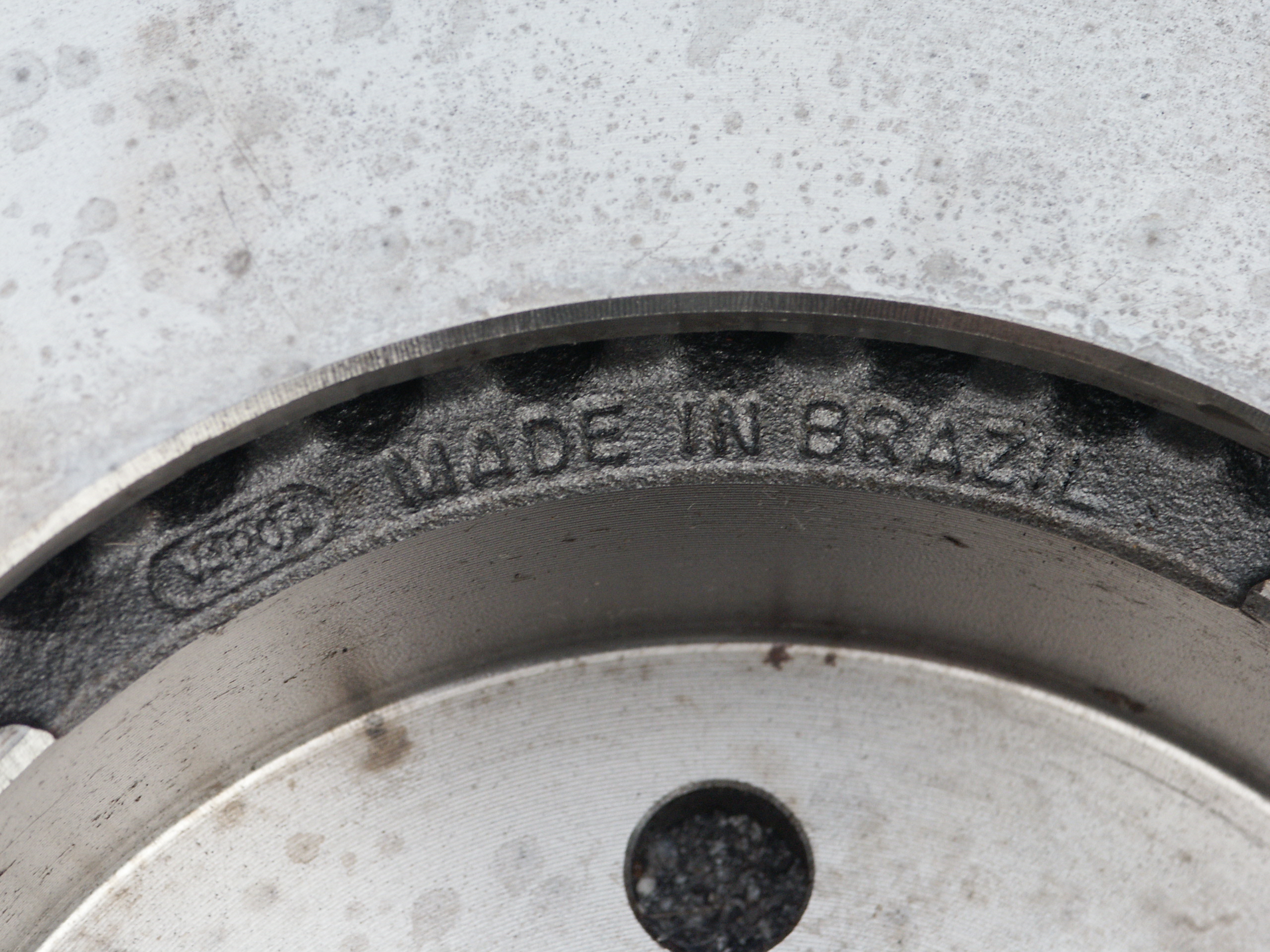

It was made in brazil by Varga
which is currently a division of TRW.

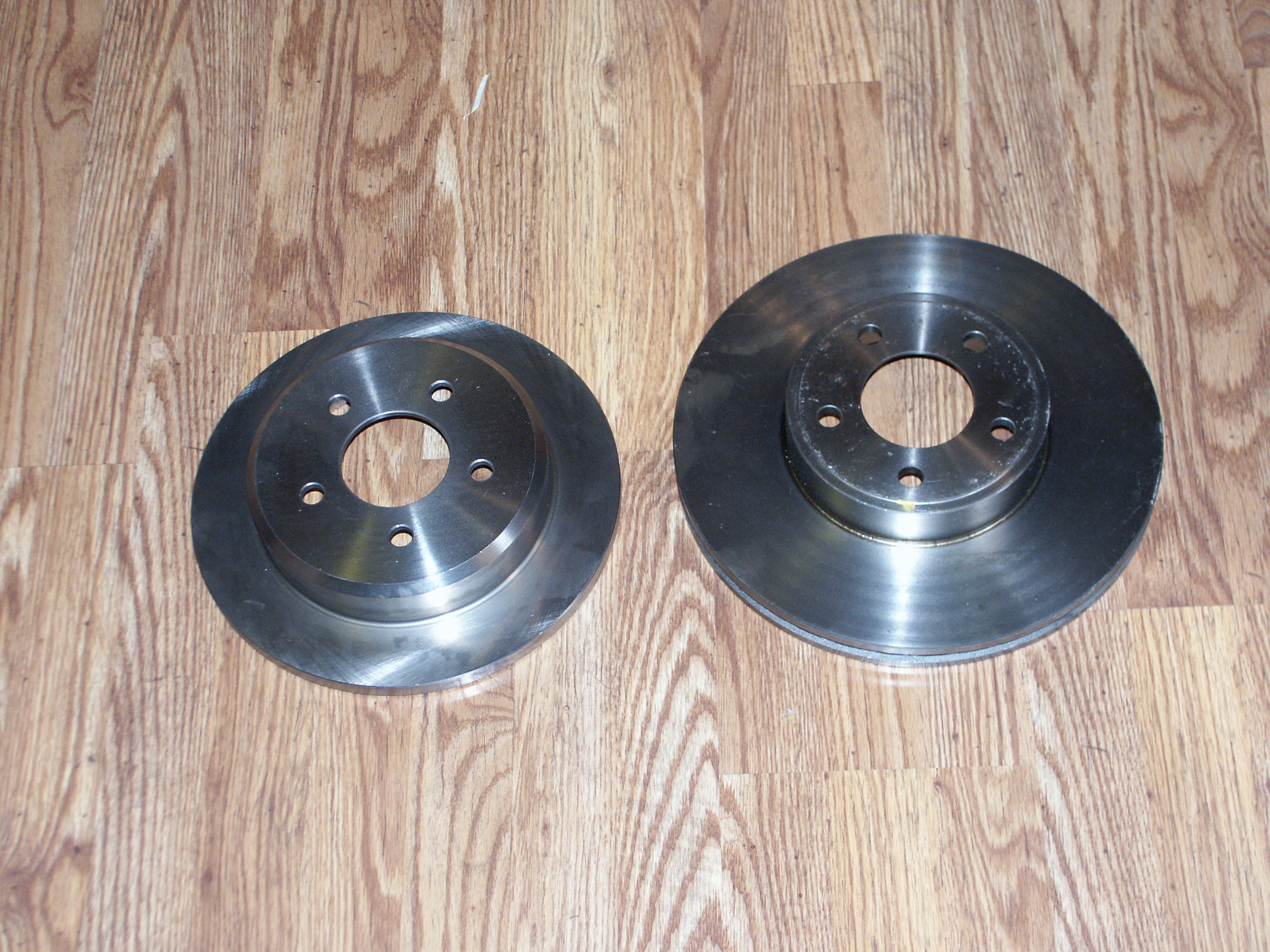

A rear rotor for a 2000 crownvic next to the front rotor. The majority
of the stopping power comes from the front brakes not the rear

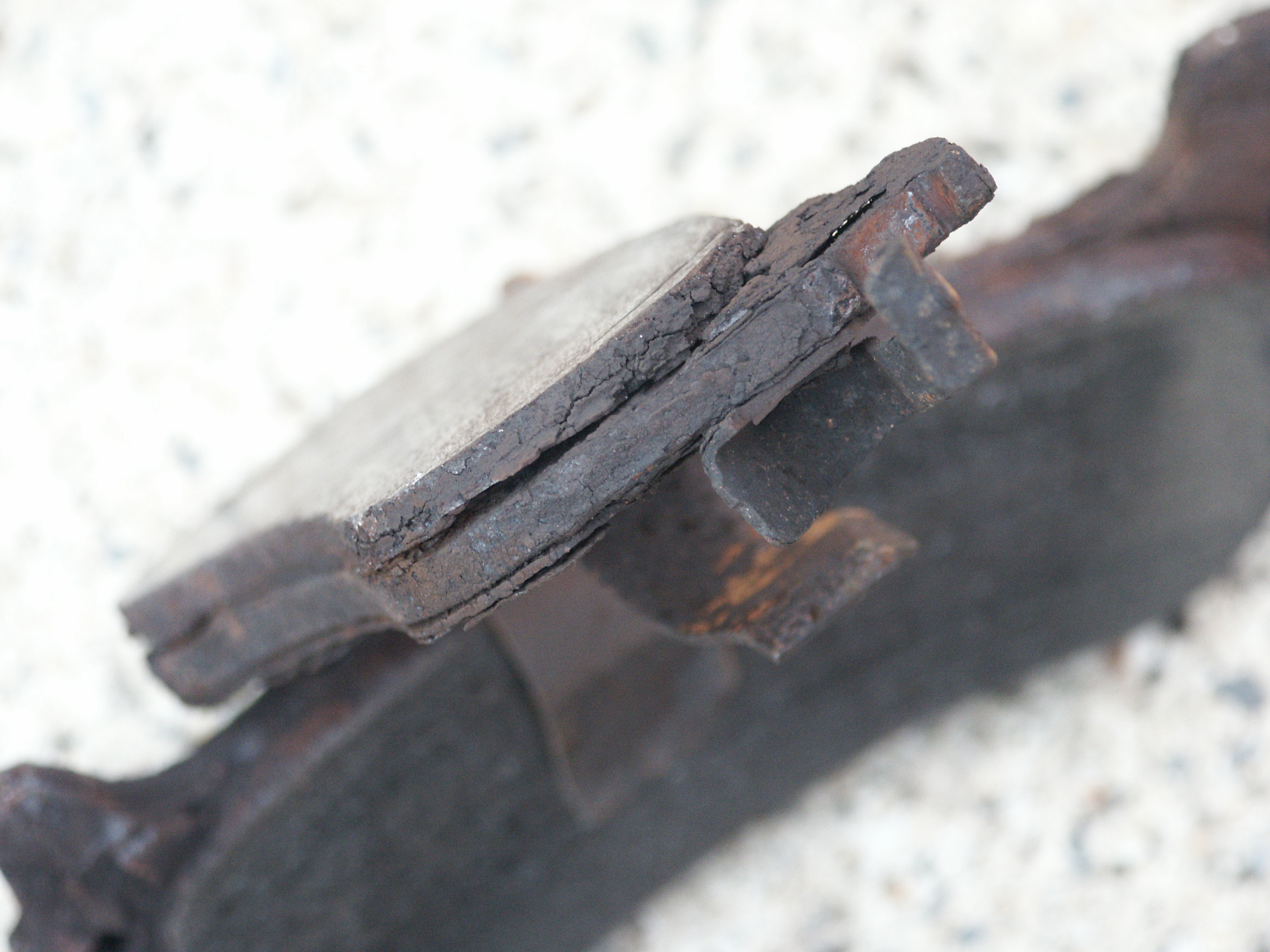

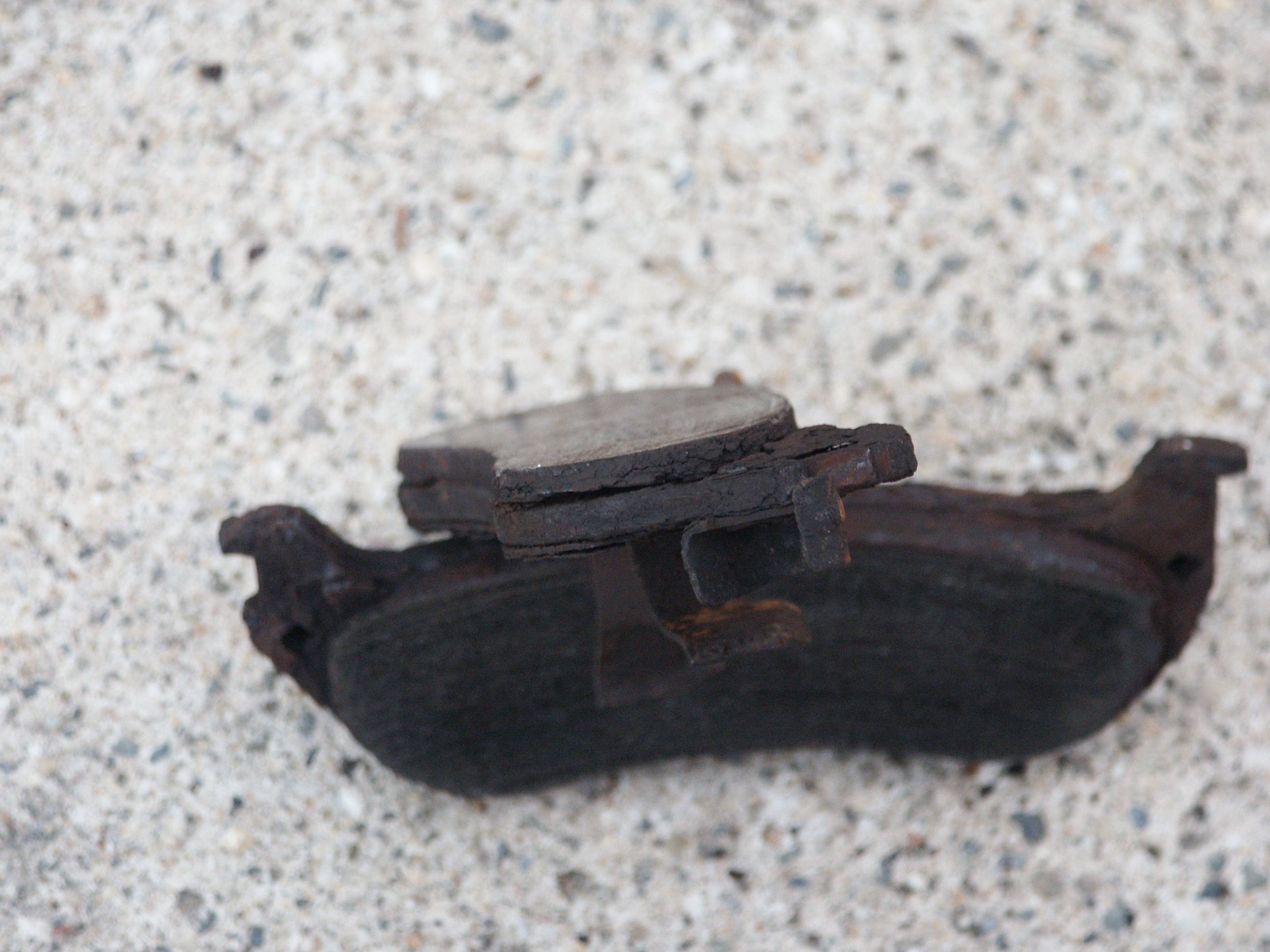

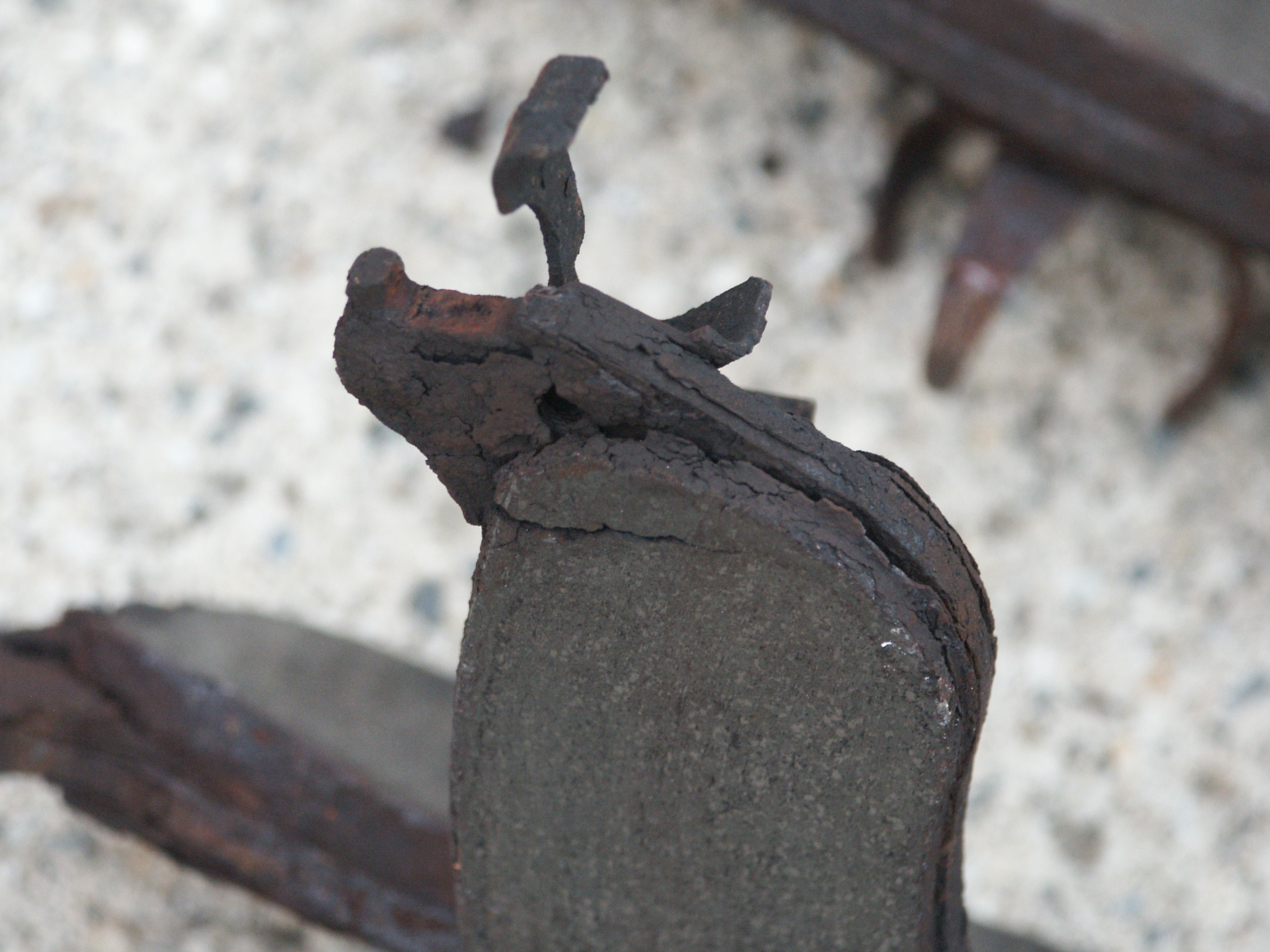

Here are some pictures of the rear brake pads from the car. Besides
being really worn down, another problem with these pads was that there
was thick scaly rust forming in between the backing plate and the
No matter how good you glue the friction material to the metal, it
doesn't do any good if the metal you glued to rusts away
In the industry, there is also a term called "rust-jacking". This
refers to how rust can be incredibly strong and lift away another item
with great force.
Having a nut become rust-jacked onto a nut is really common around
here. But sometimes cars around here get oddball rust-jacking problems
too like having a mounting bracket on a caliper flex hose puff out so
much that it crimps off brake fluid flow through the hose.
Most mechanics in the northeastern united states will have seen rotors
and brake pads like this more times than they can count. But rust this
bad will probably seem foreign to many mechanics in an area of the
country where chloride salts are not used on the roads during the
winter months to clear snow and ice.
