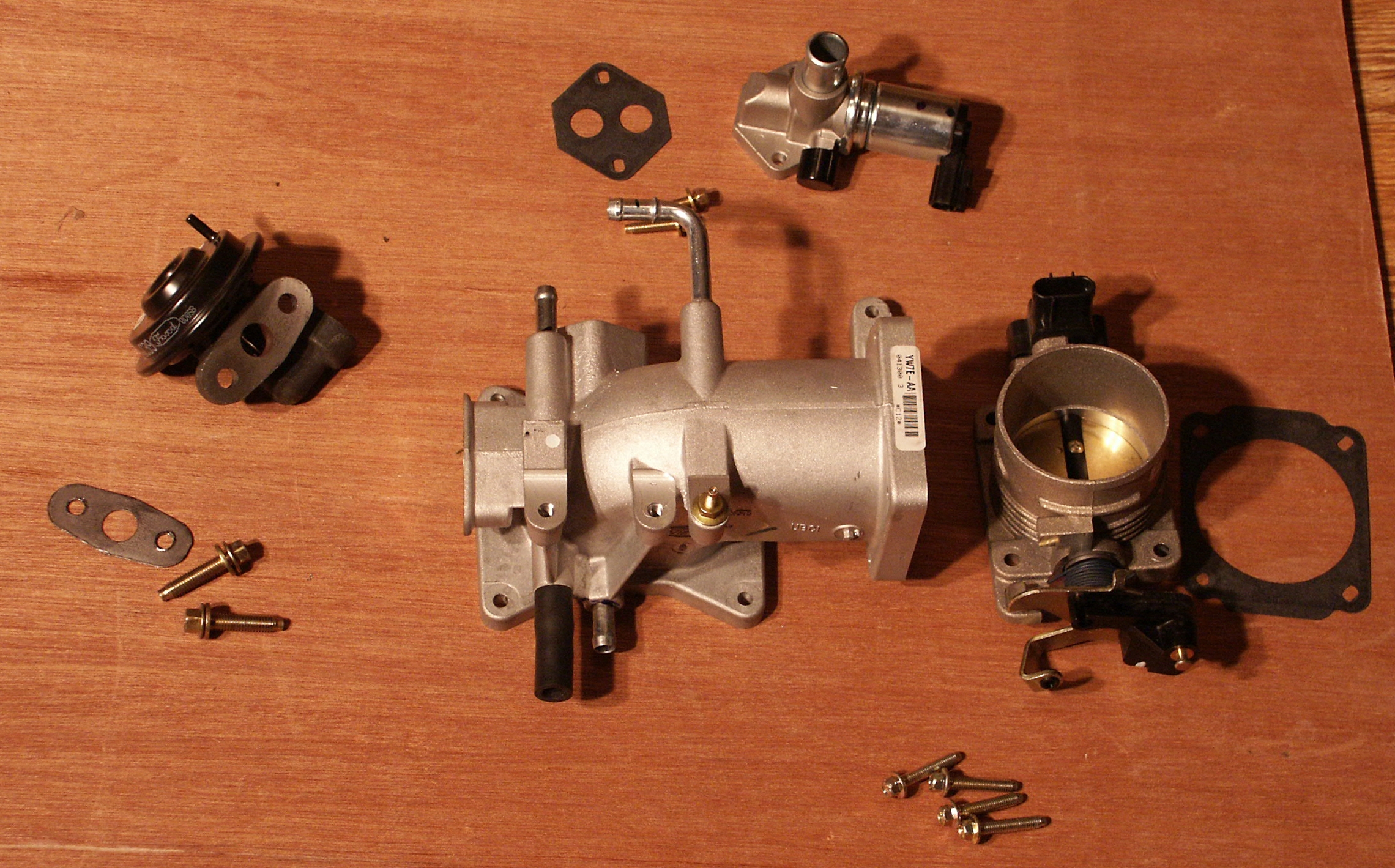

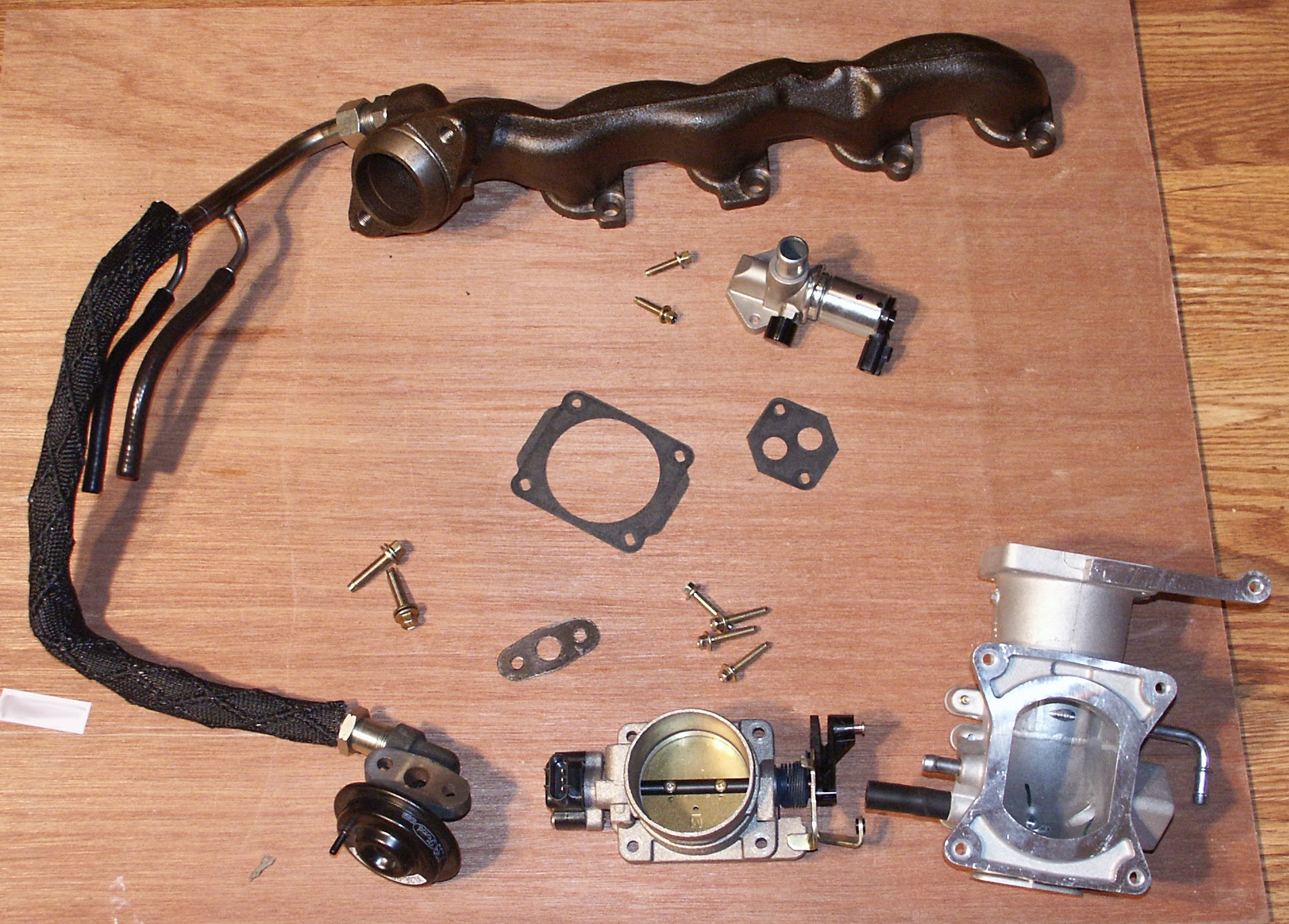

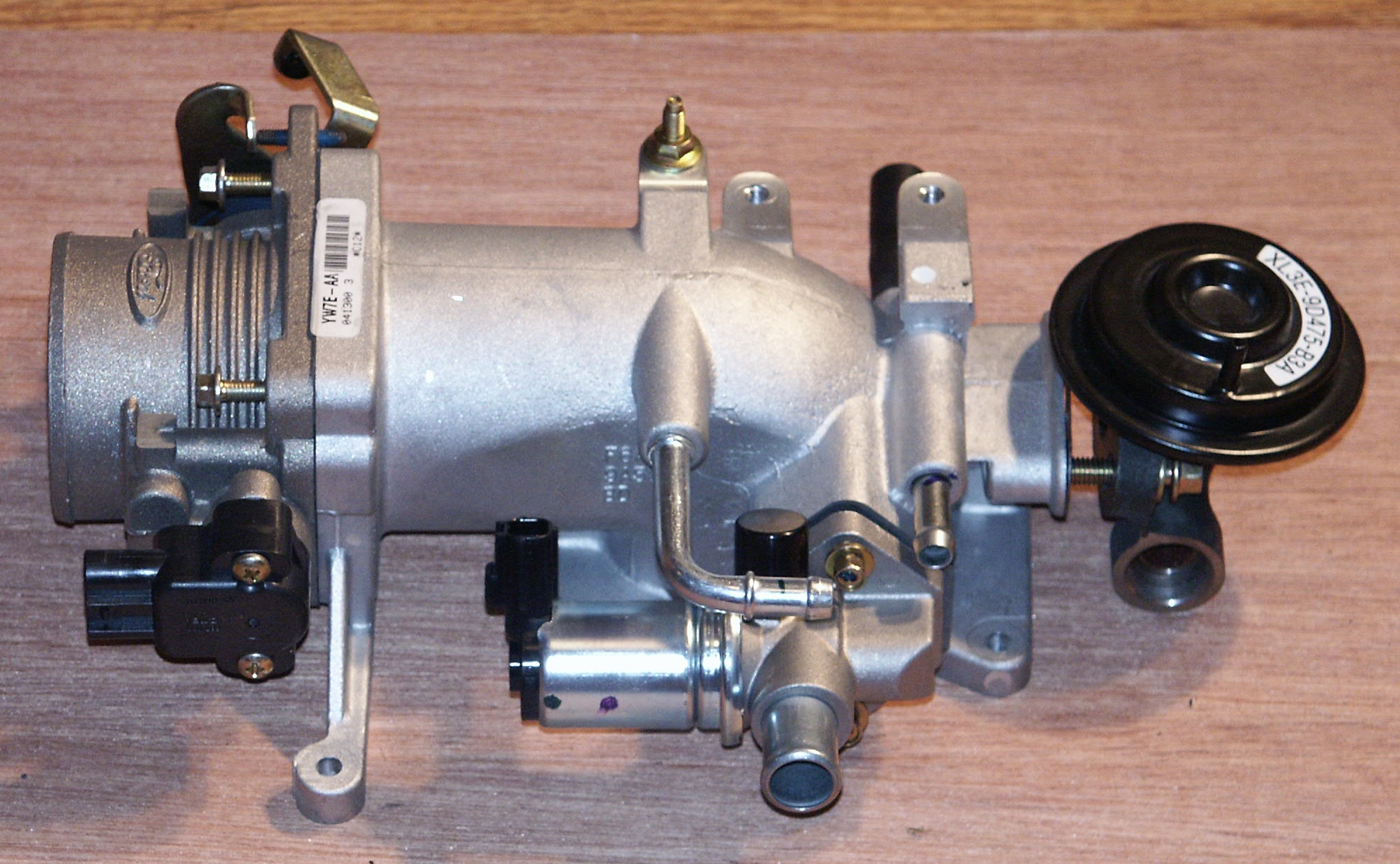

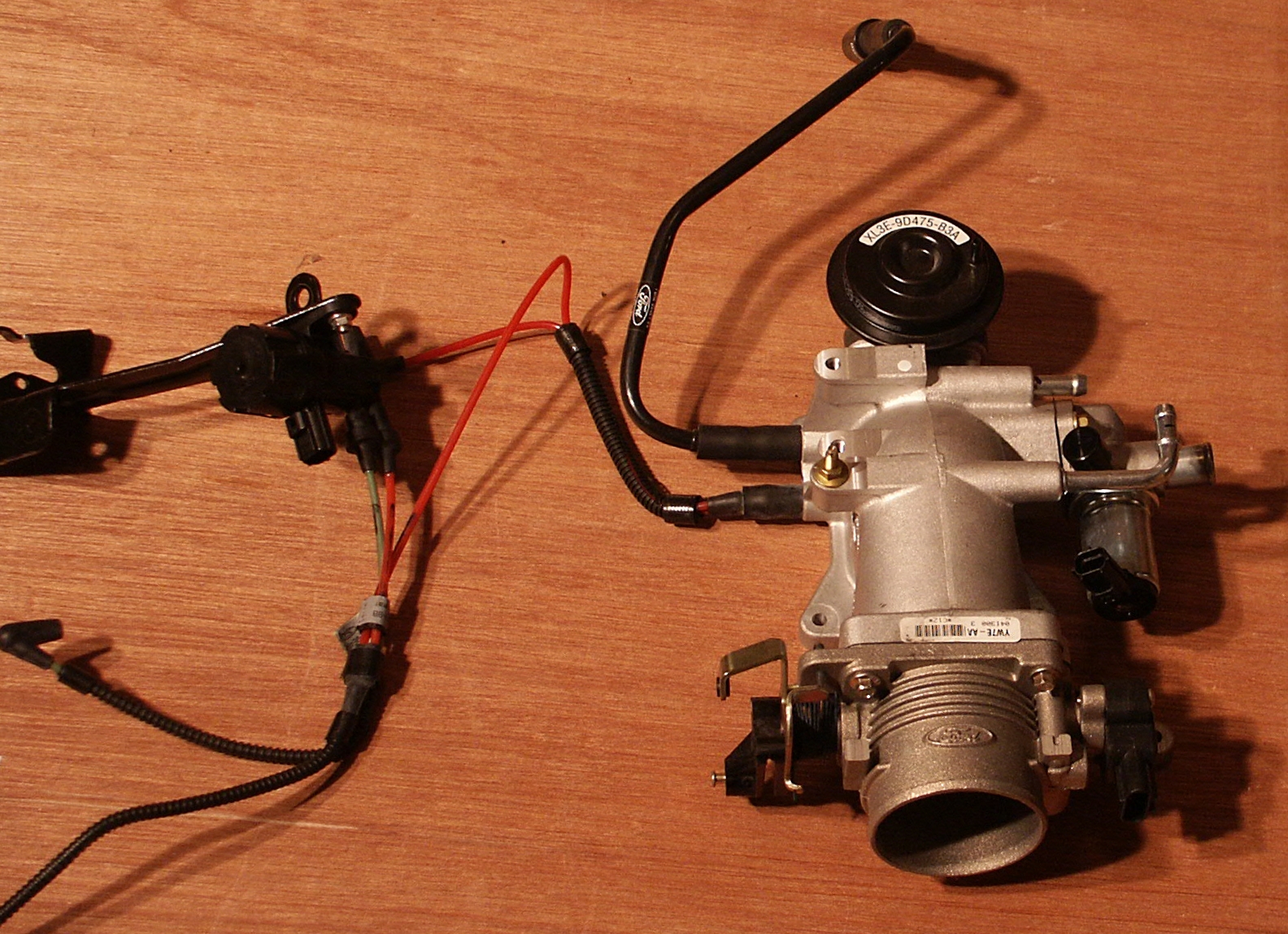

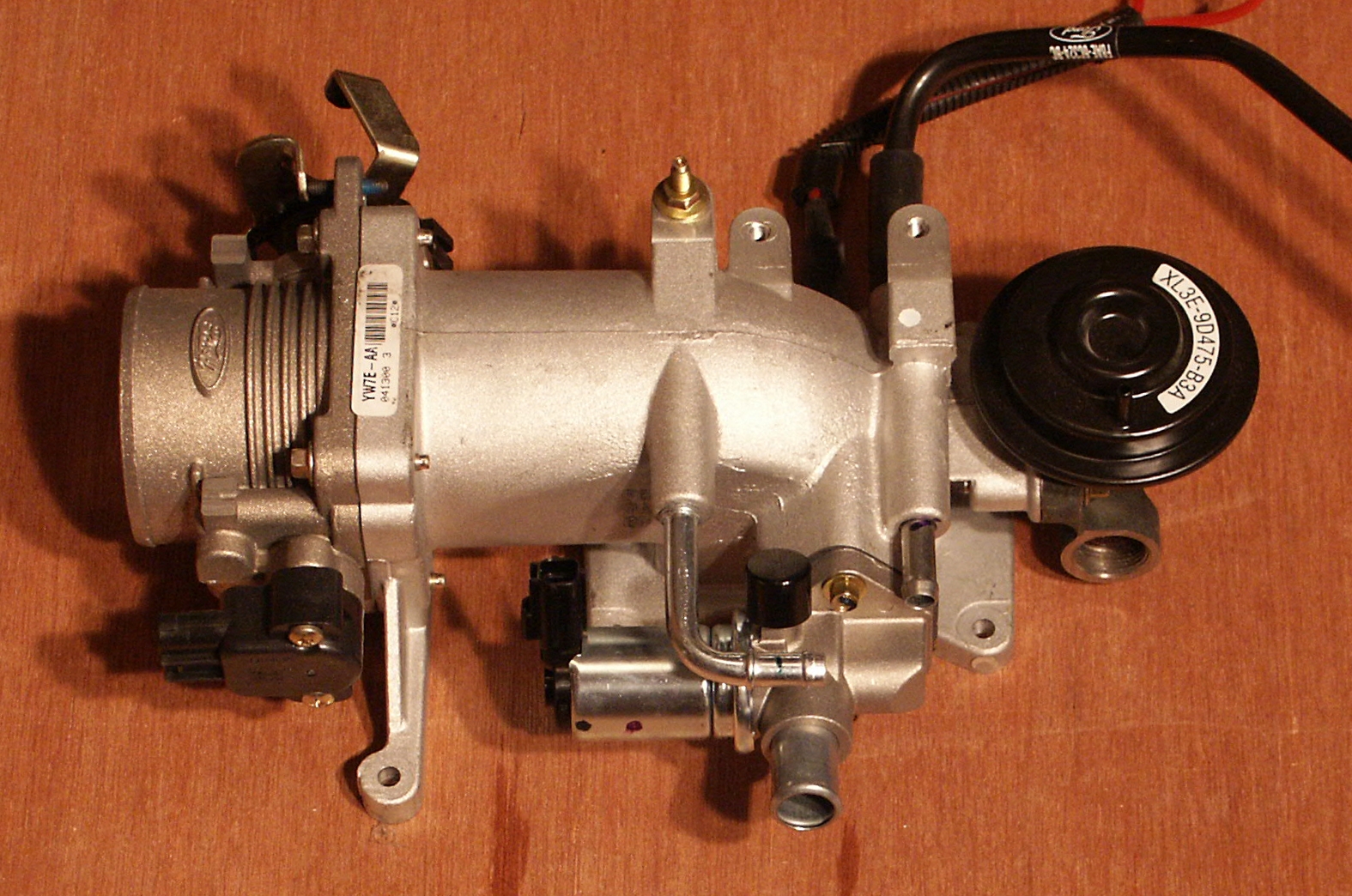

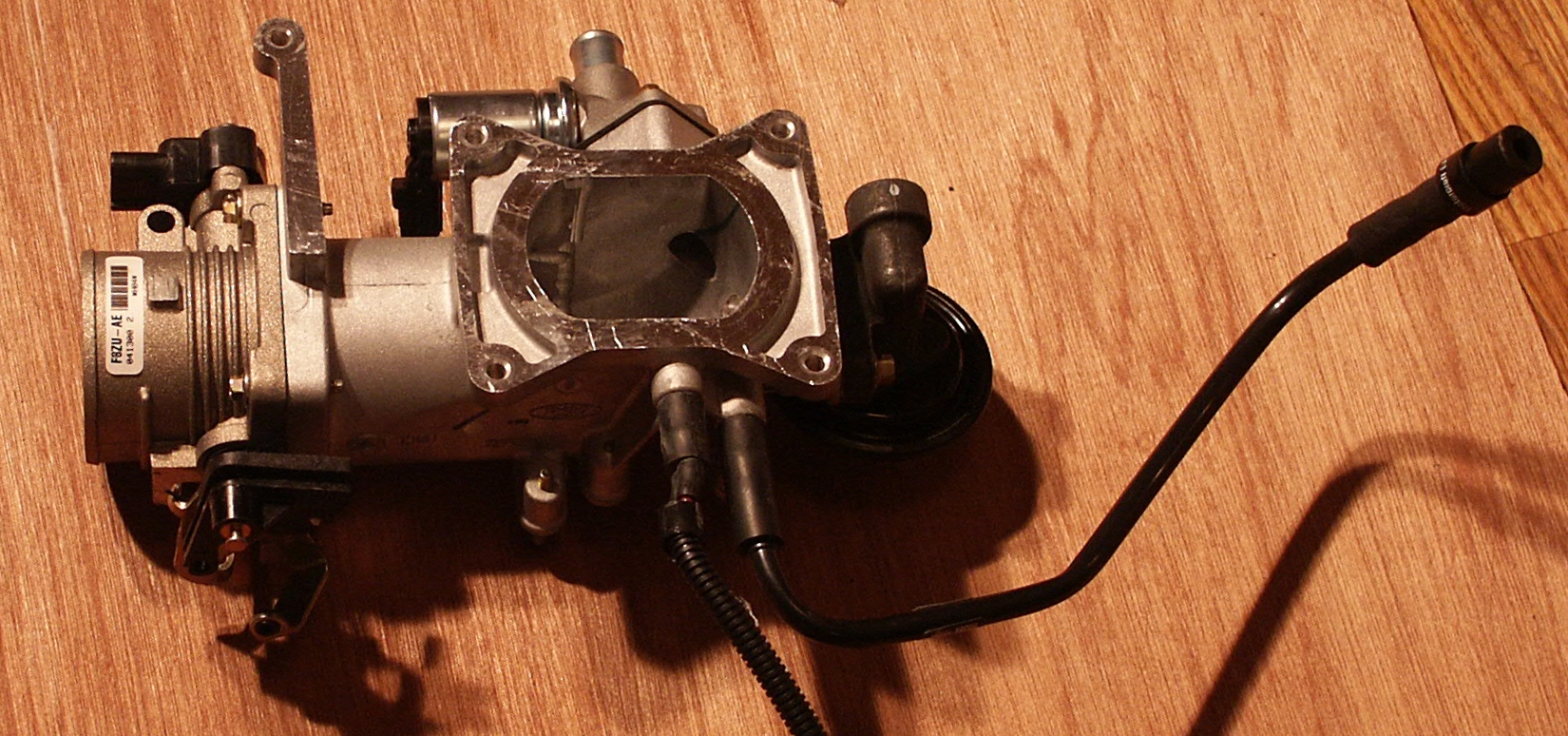

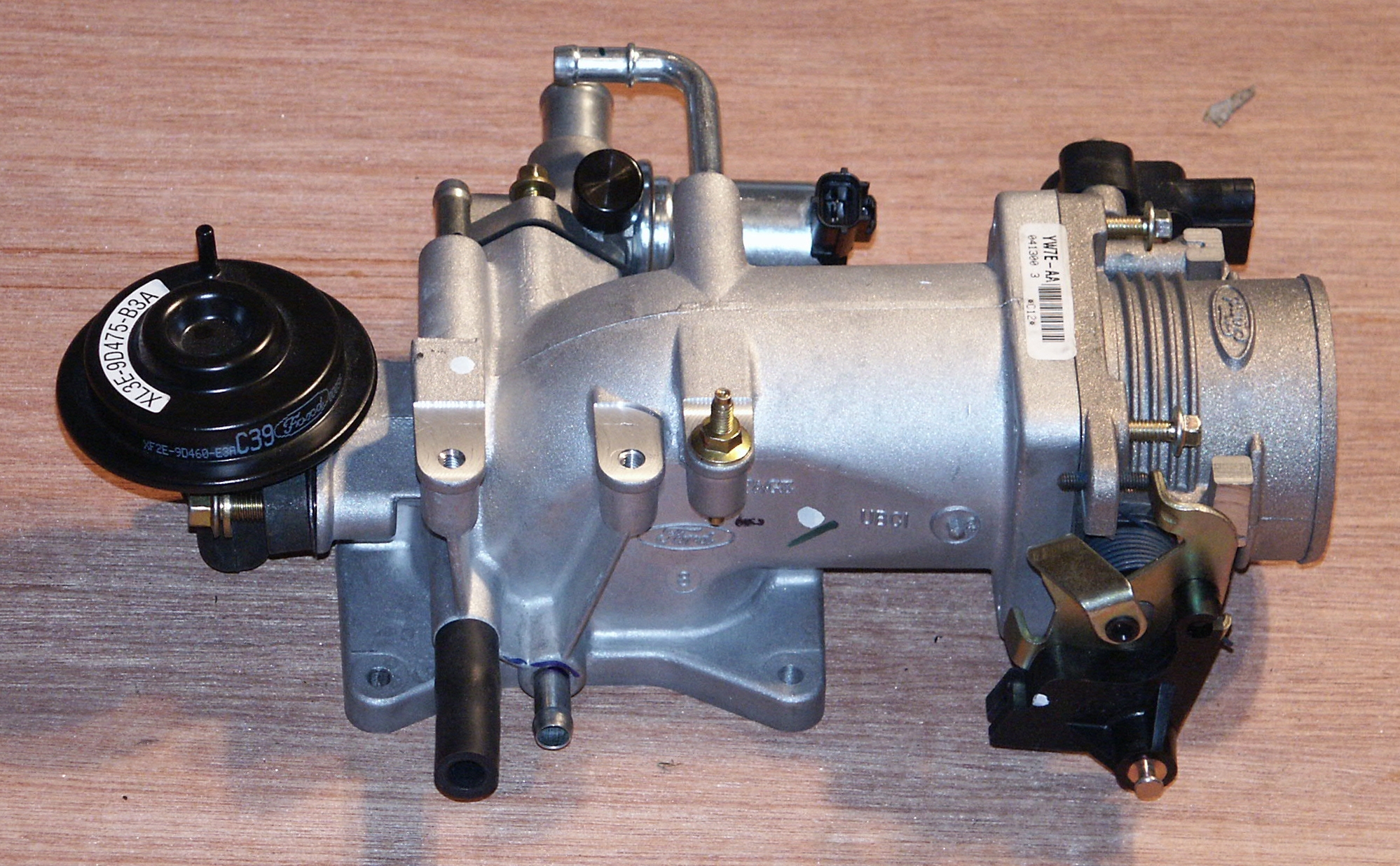

Below are some pictures of an air intake plenum assembly and some
supporting components from a 2000 ford crown victoria
![](PICT4712-vi.jpg)
![](PICT4713-vi.jpg)
![](PICT4610-vi.jpg)

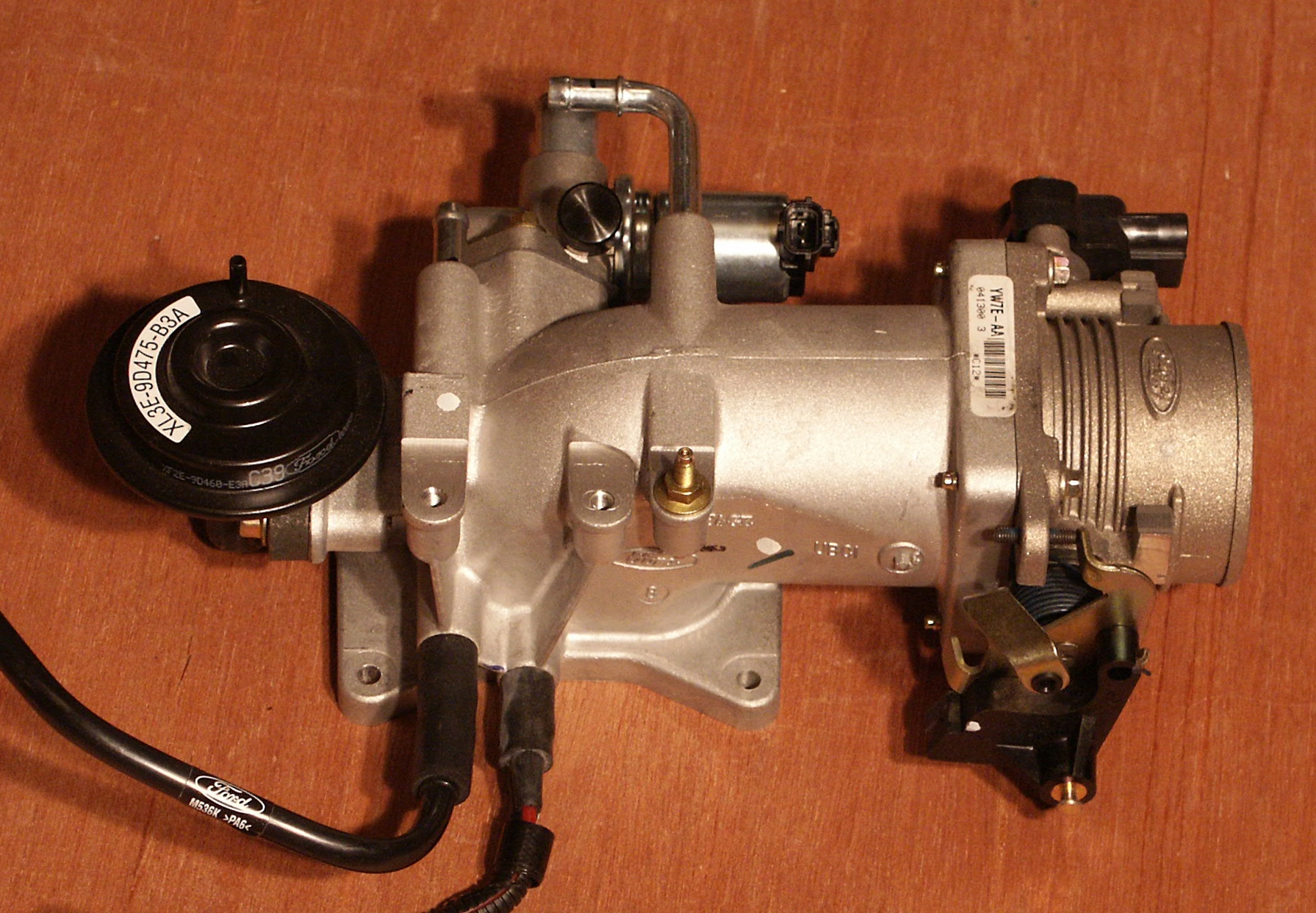

![](PICT4611-vi.jpg)
![](PICT4613-vi.jpg)

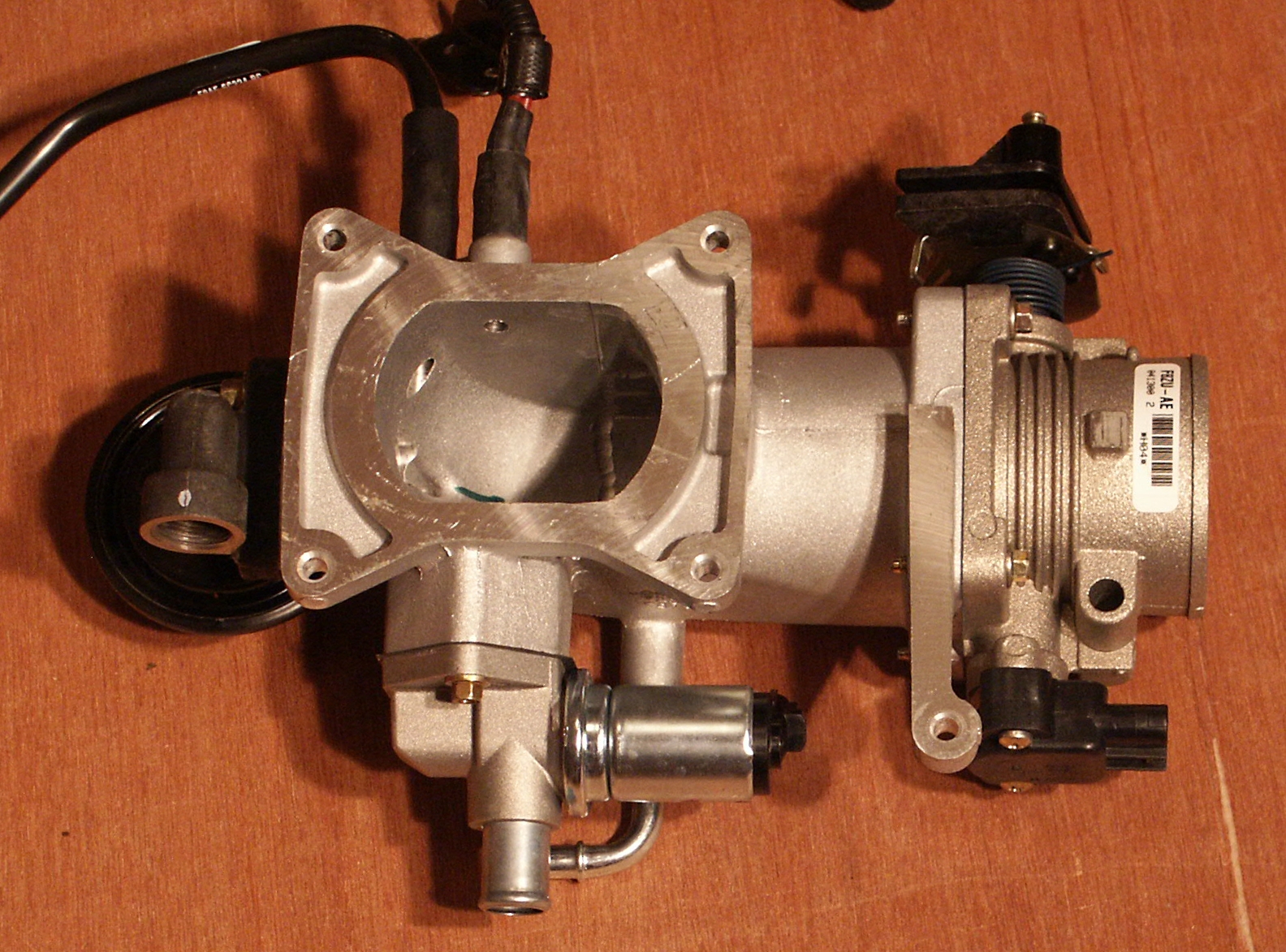

![](PICT4617-vi.jpg)
![](PICT4621-vi.jpg)
![](PICT4622-vi.jpg)

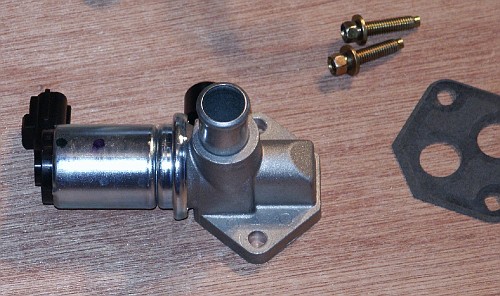

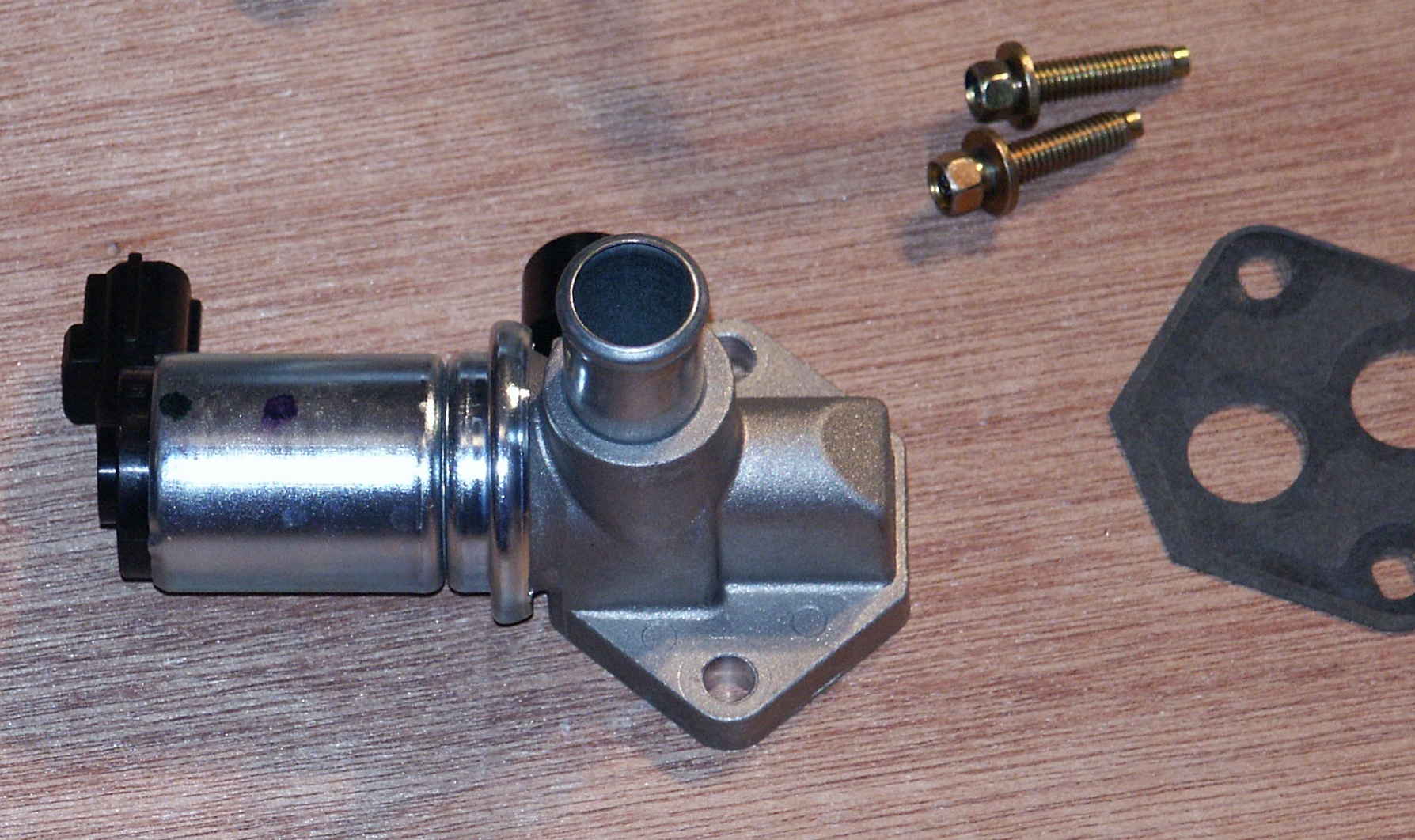

The idle air control valve (IAC)
![](PICT4628-vi.jpg)
The exhaust gas recirculation (EGR) valve
![](PICT4631-vi.jpg)
The throttle body and the throttle position sensor (TPS)
![](PICT4633-vi.jpg)

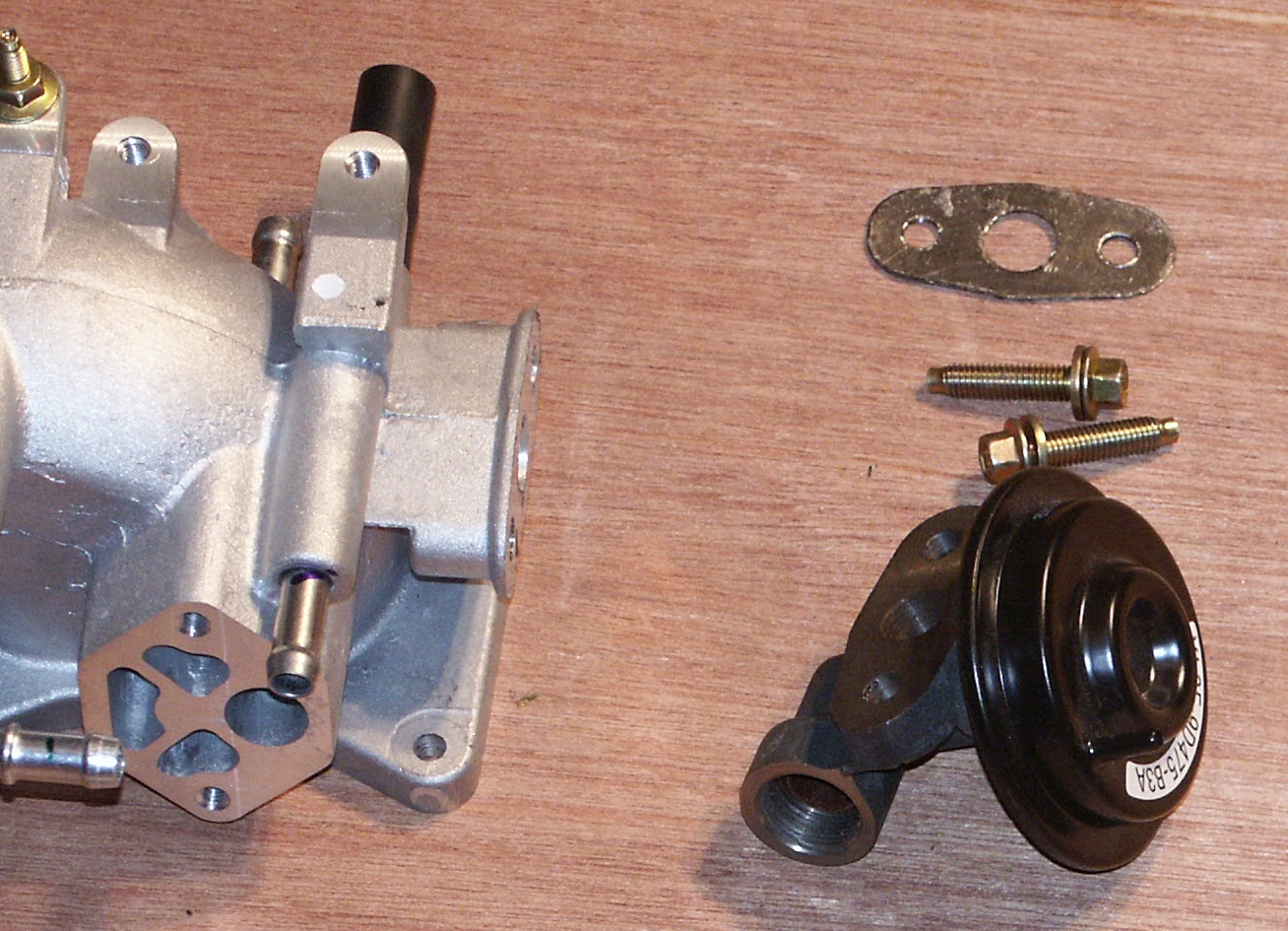

The location on the plenum where the IAC valve mounts.
![](PICT4635-vi.jpg)
![](PICT4637-vi.jpg)

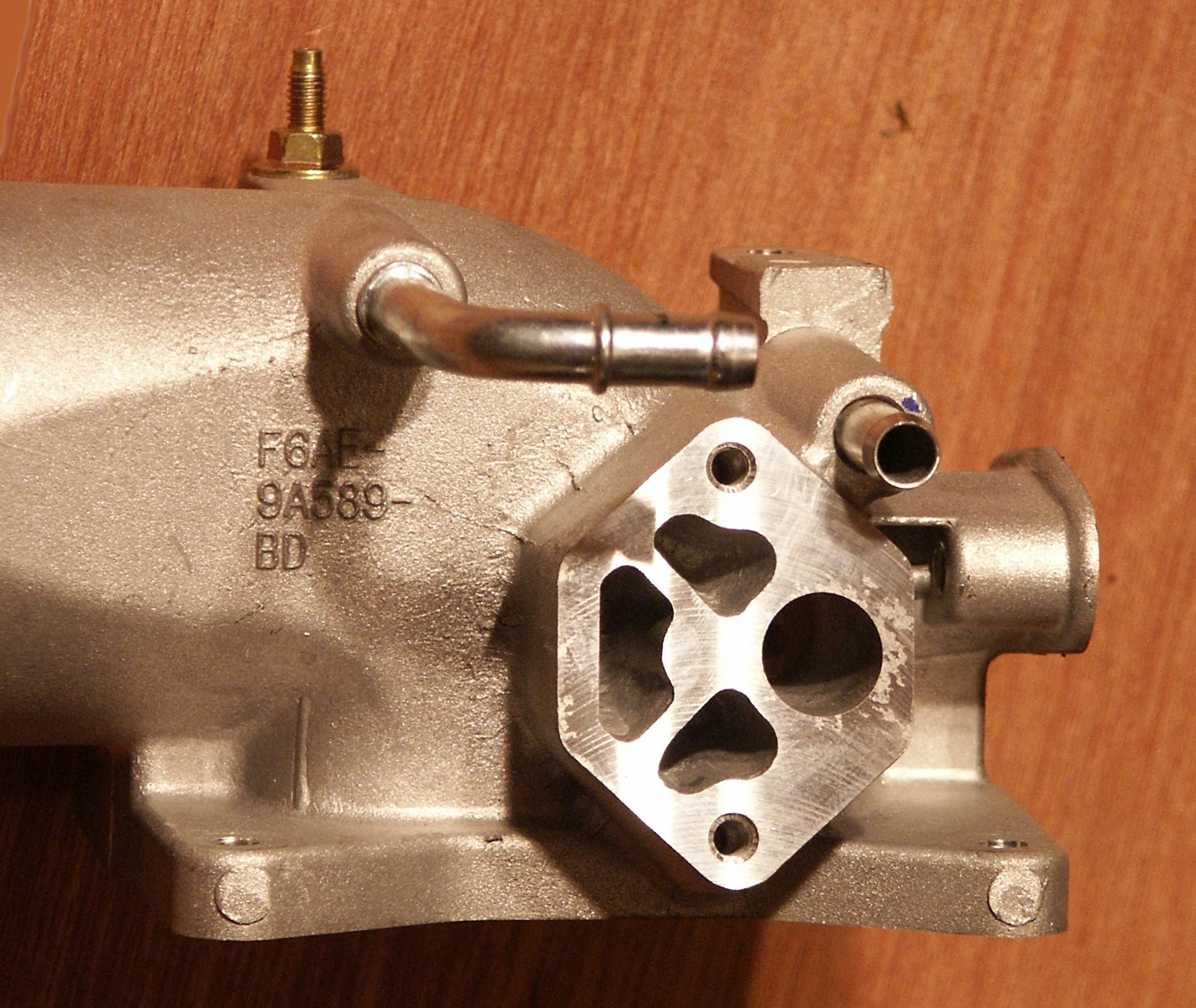

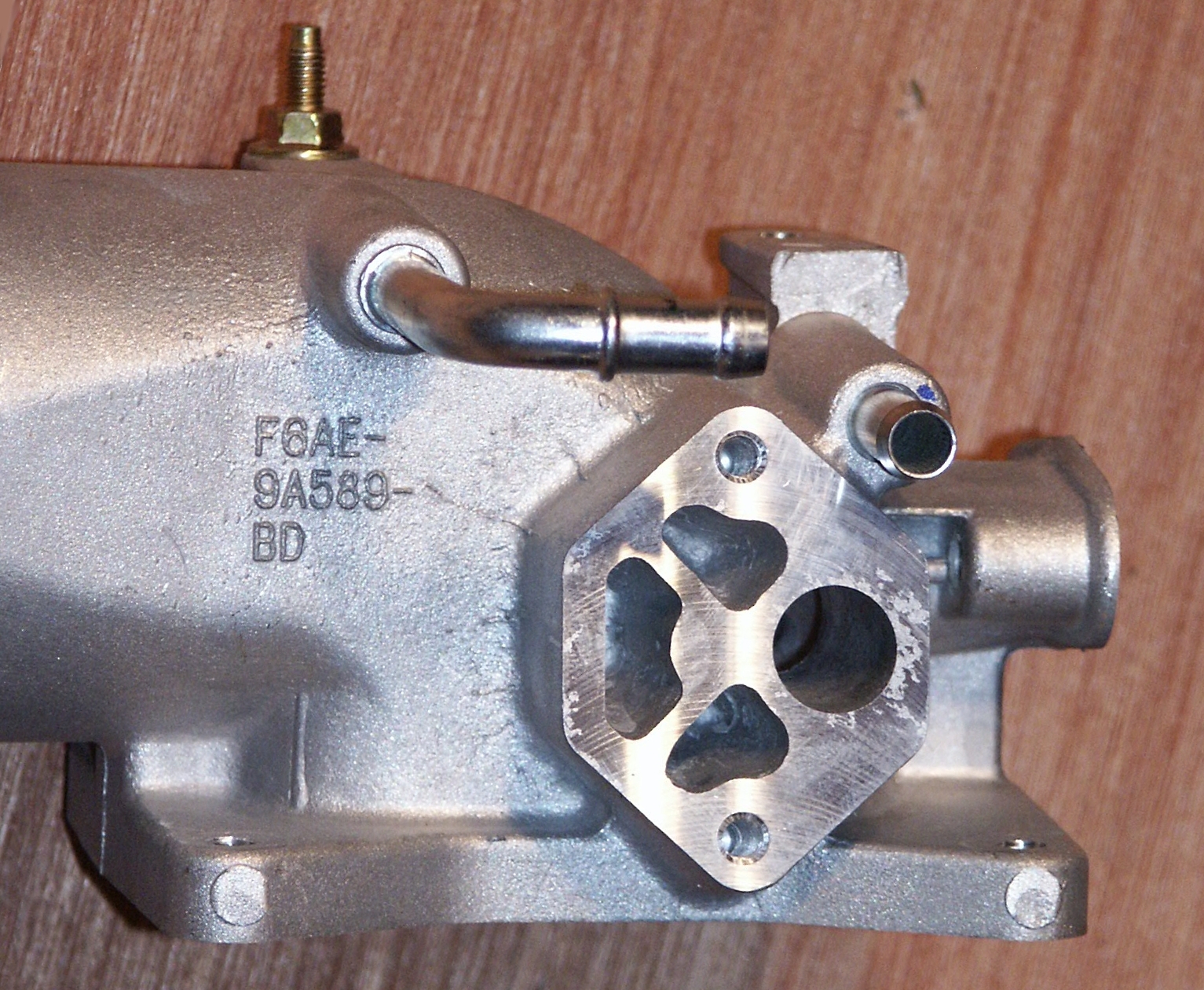

The location where the EGR would mount
![](PICT4638-vi.jpg)

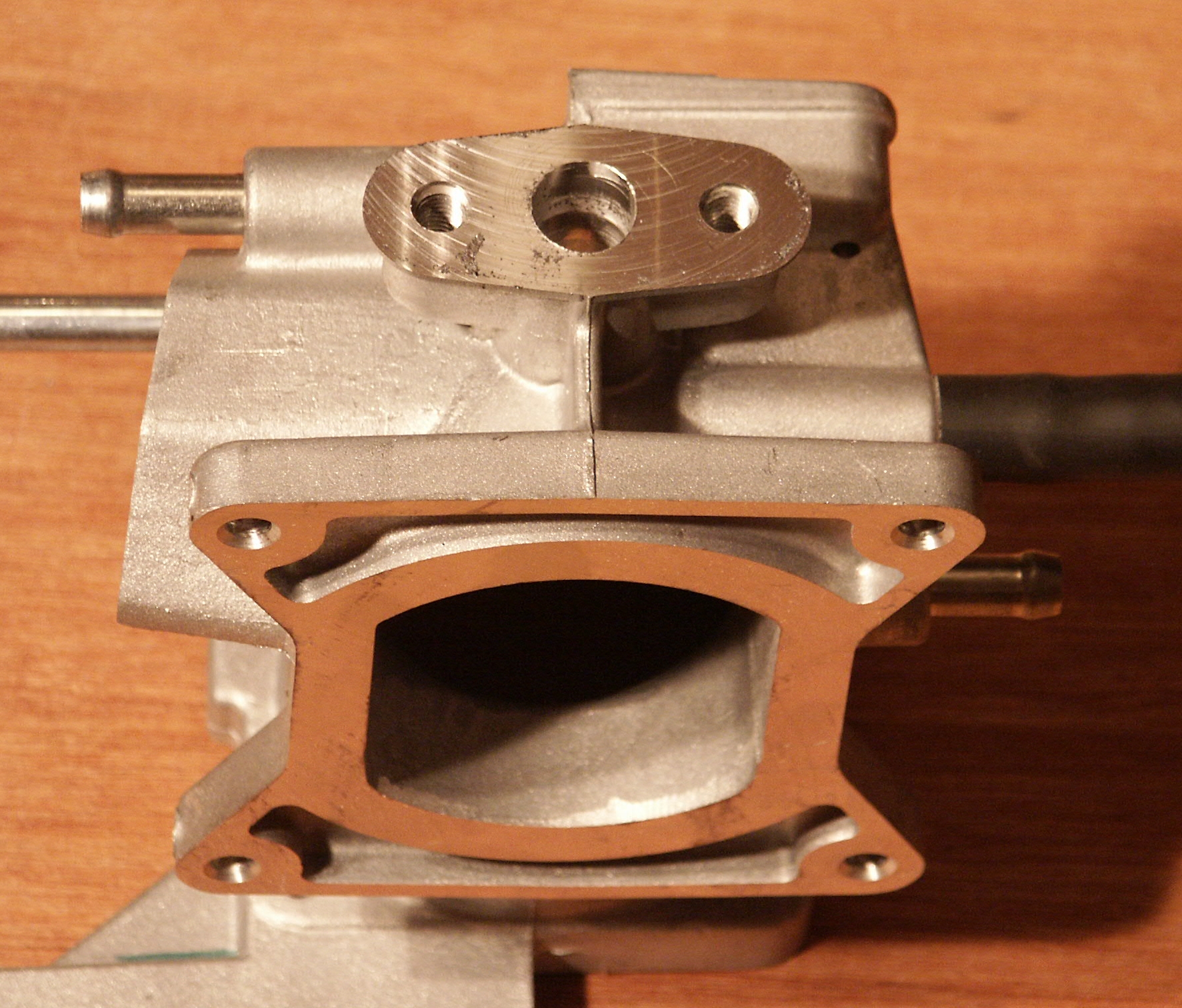

The location where the throttle body would mount
![](PICT4640-vi.jpg)
![](PICT4642-vi.jpg)

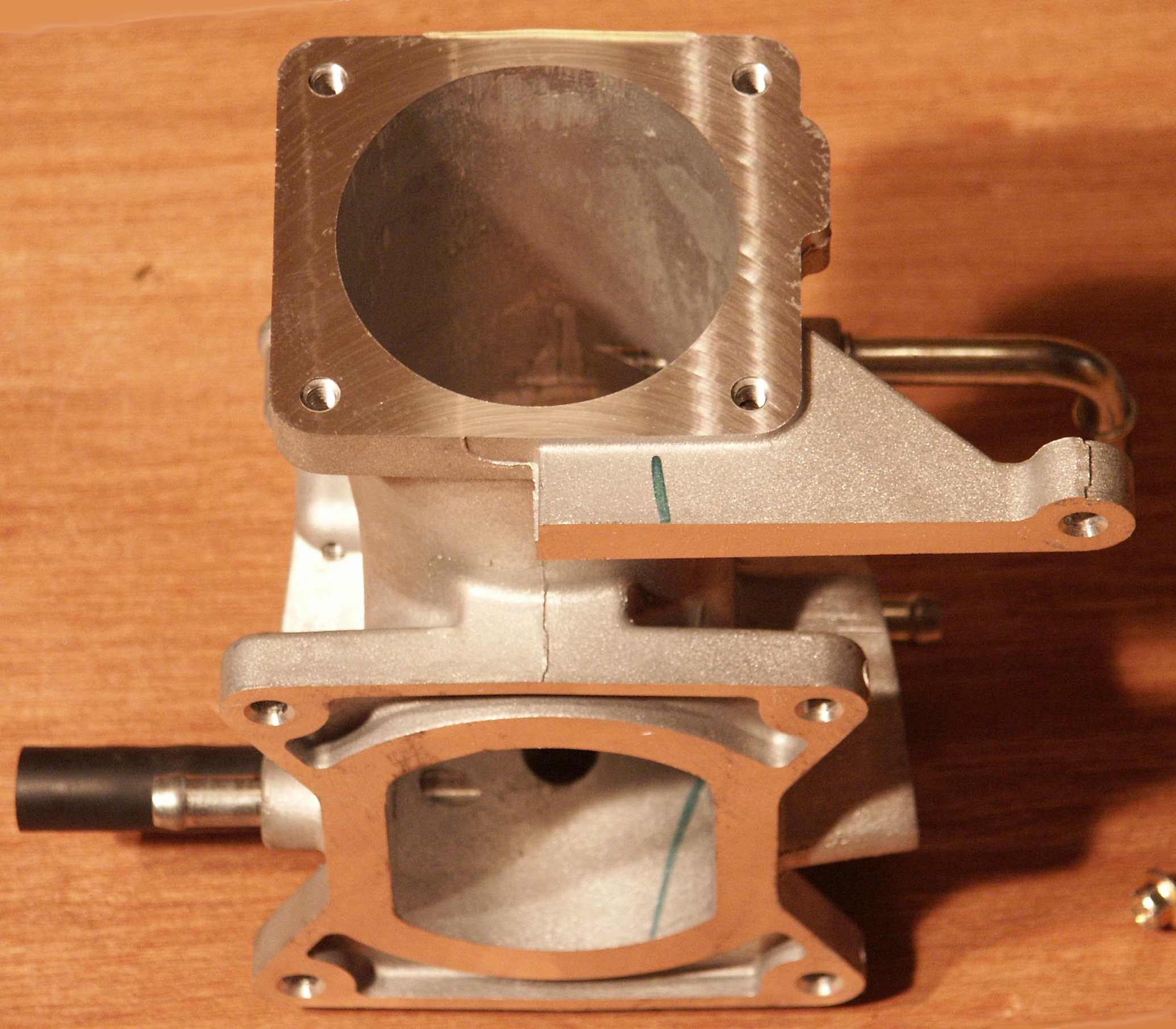

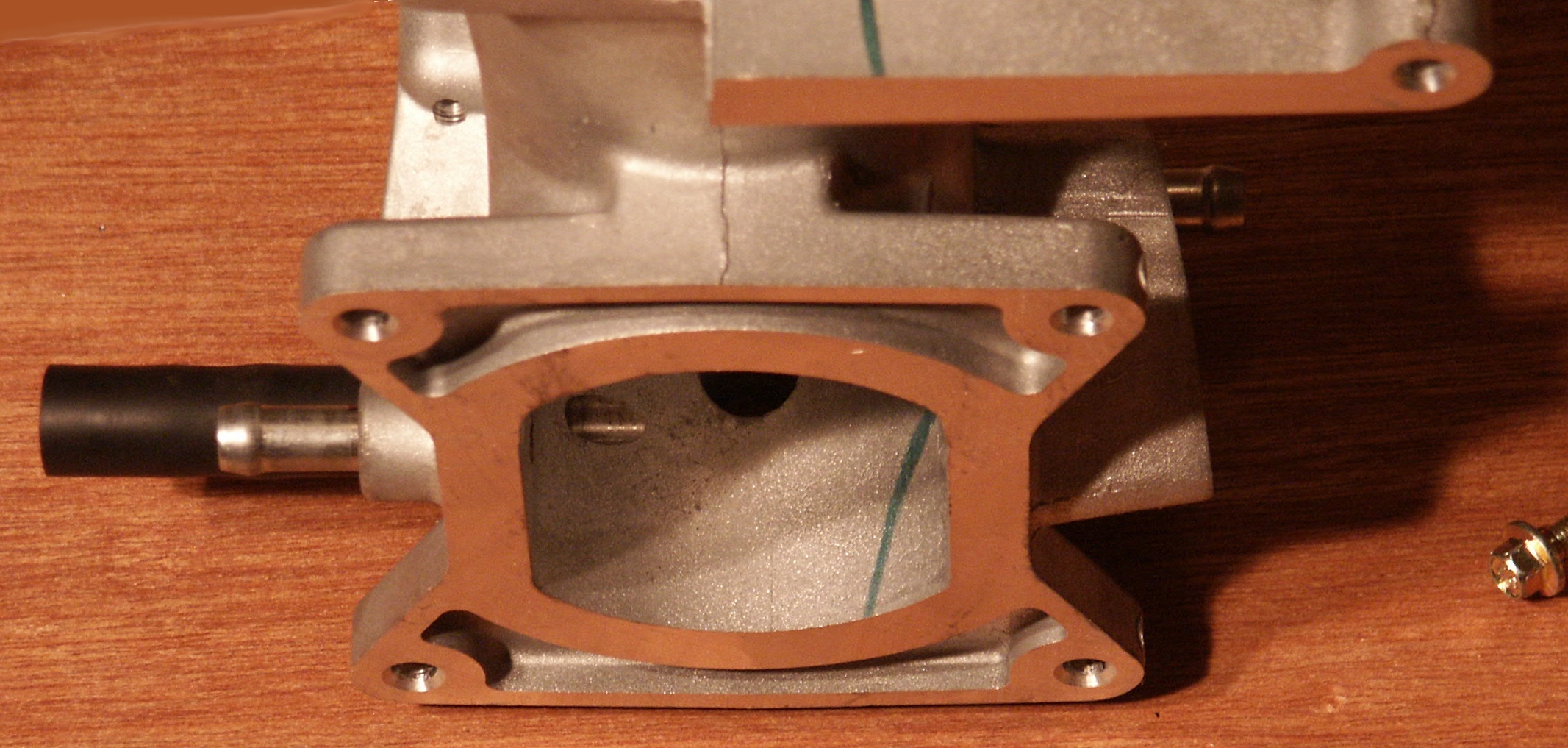

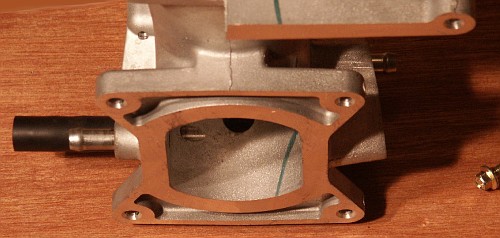

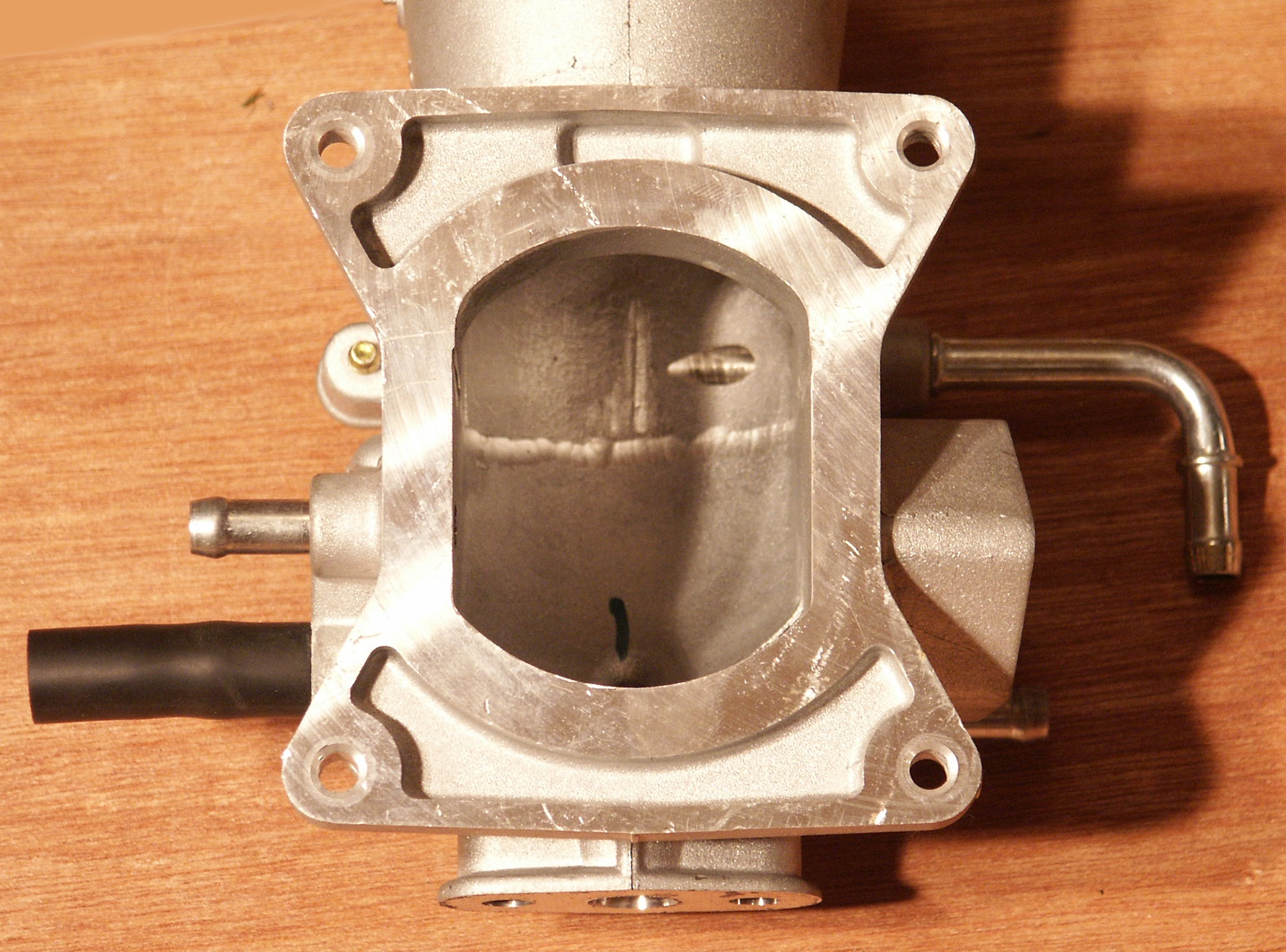

This is where the plenum would normally connect to the intake manifold
![](PICT4644-vi.jpg)

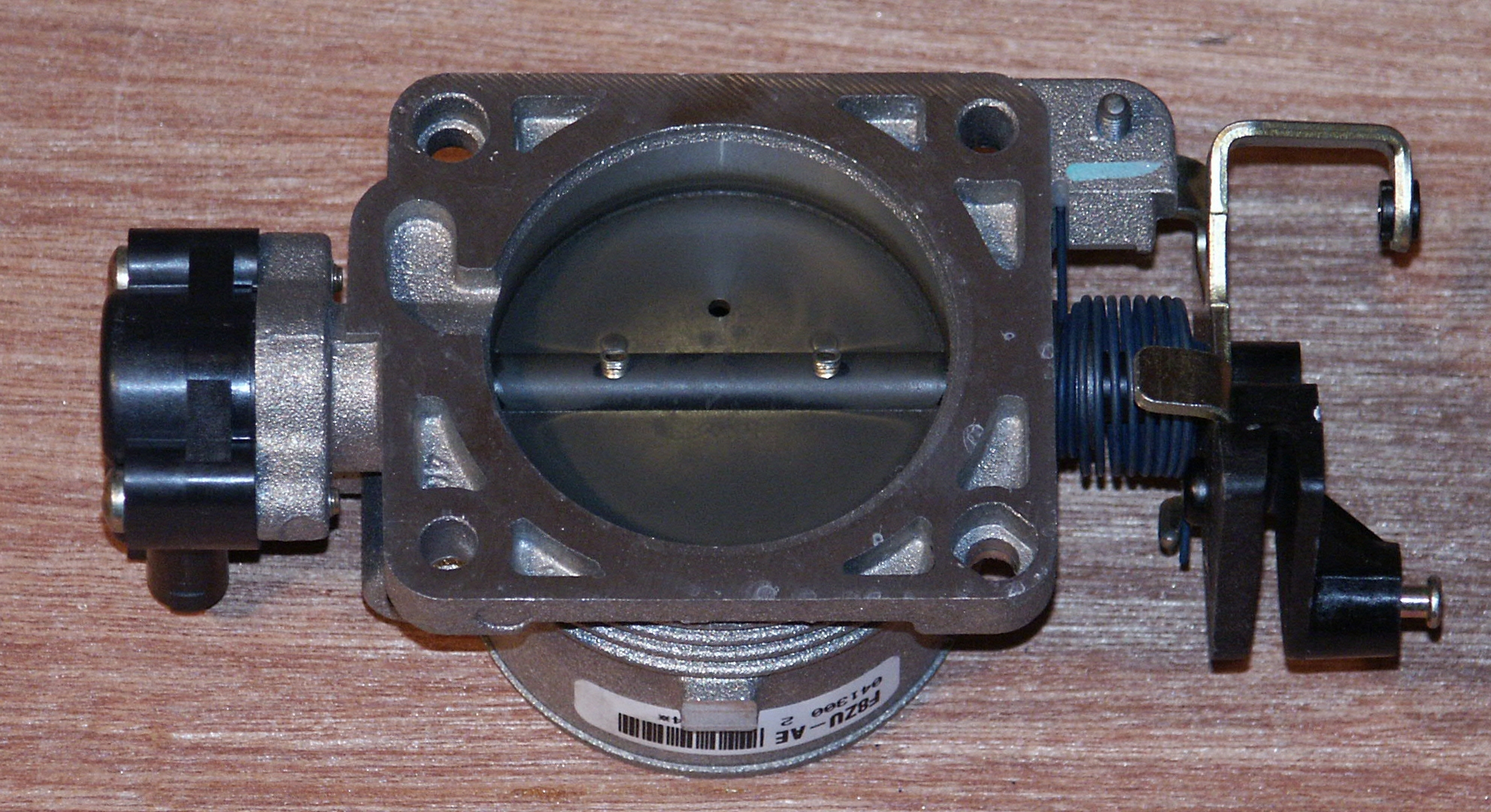

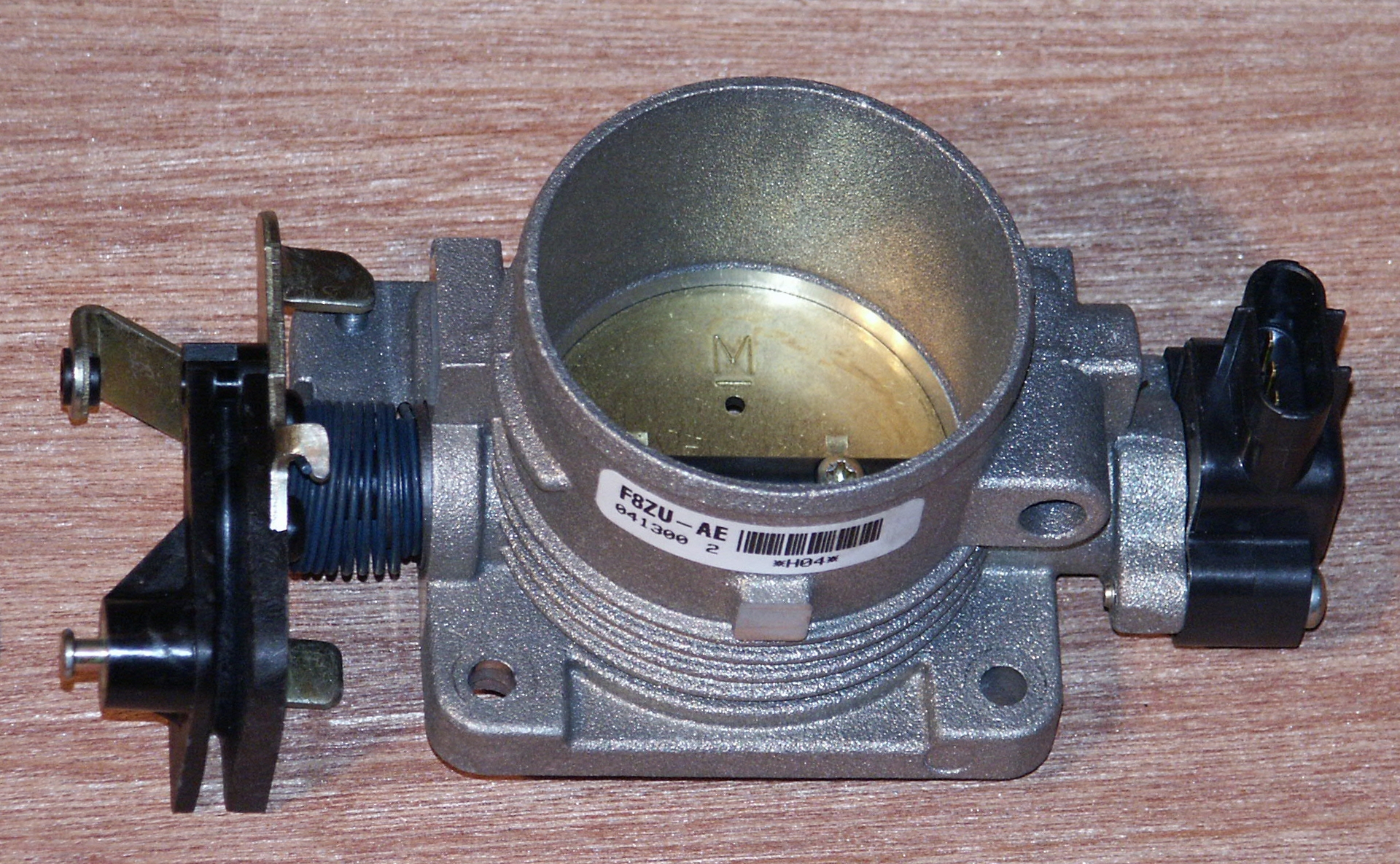

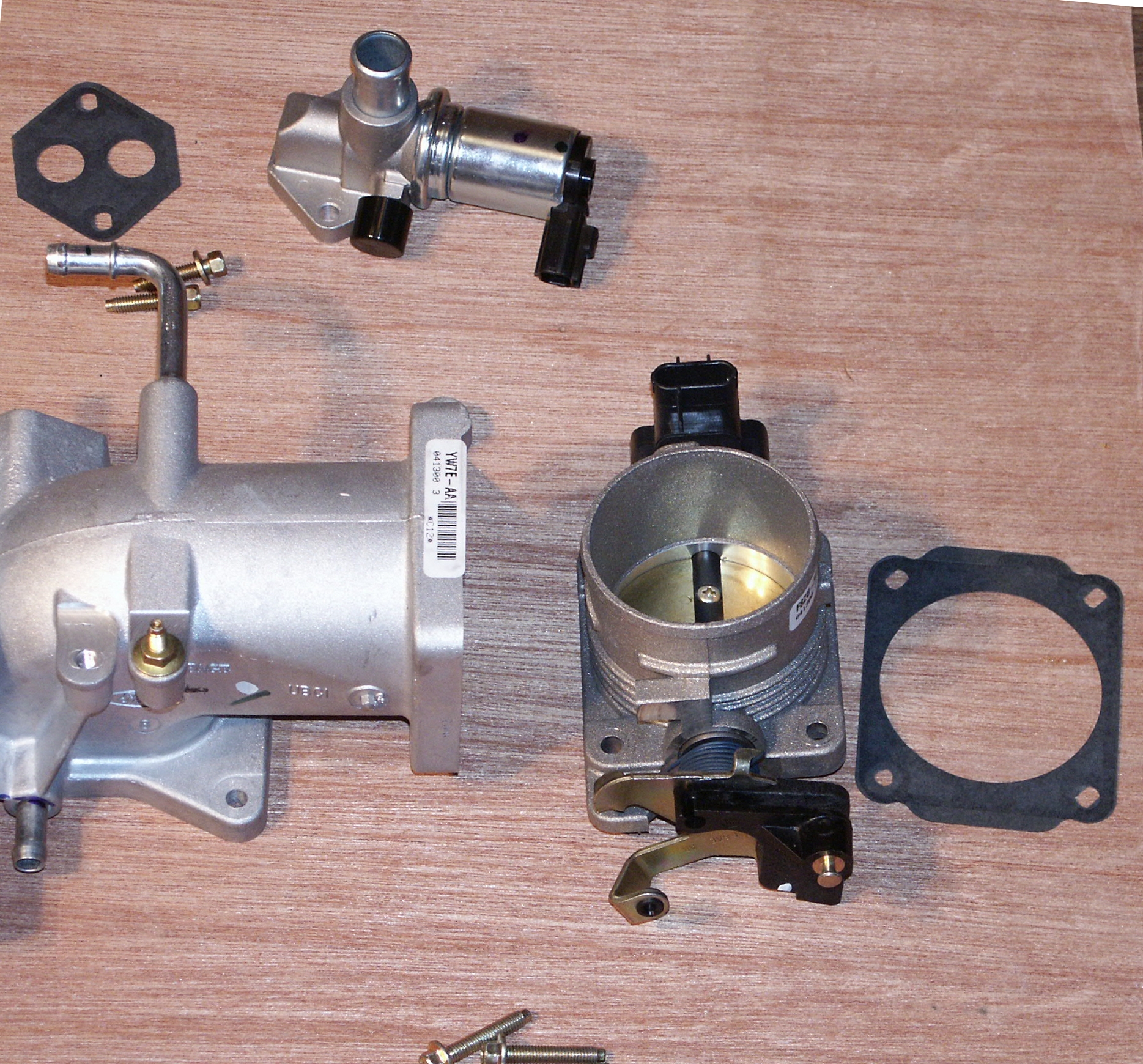

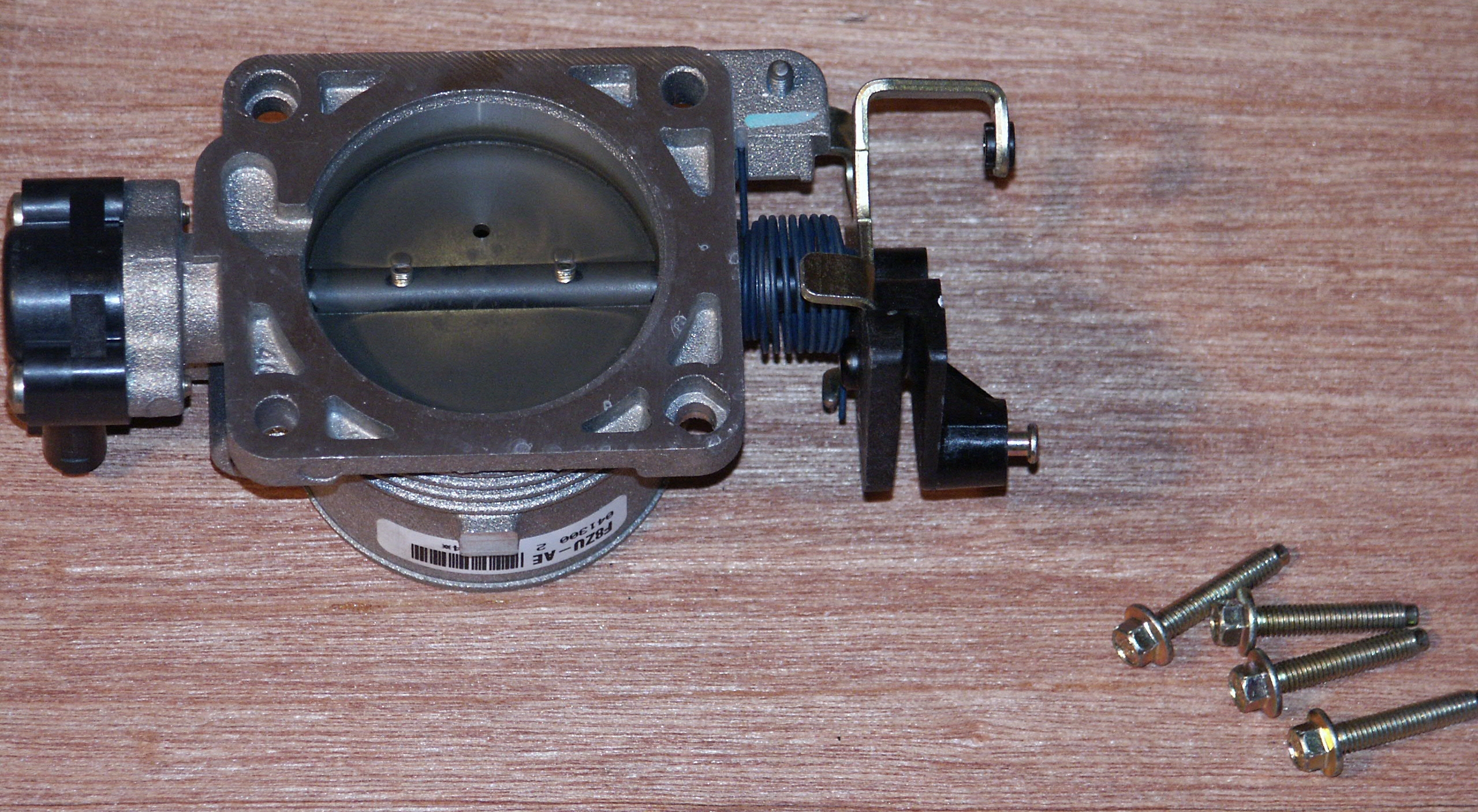

Here's the throttle body.
![](PICT4647-vi.jpg)
And the bolts which hold the throttle body to the intake plenum
![](PICT4648-vi.jpg)
![](PICT4649-vi.jpg)

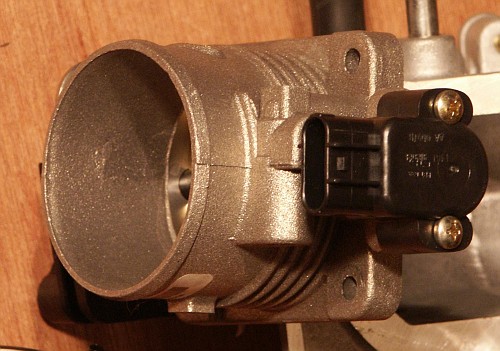

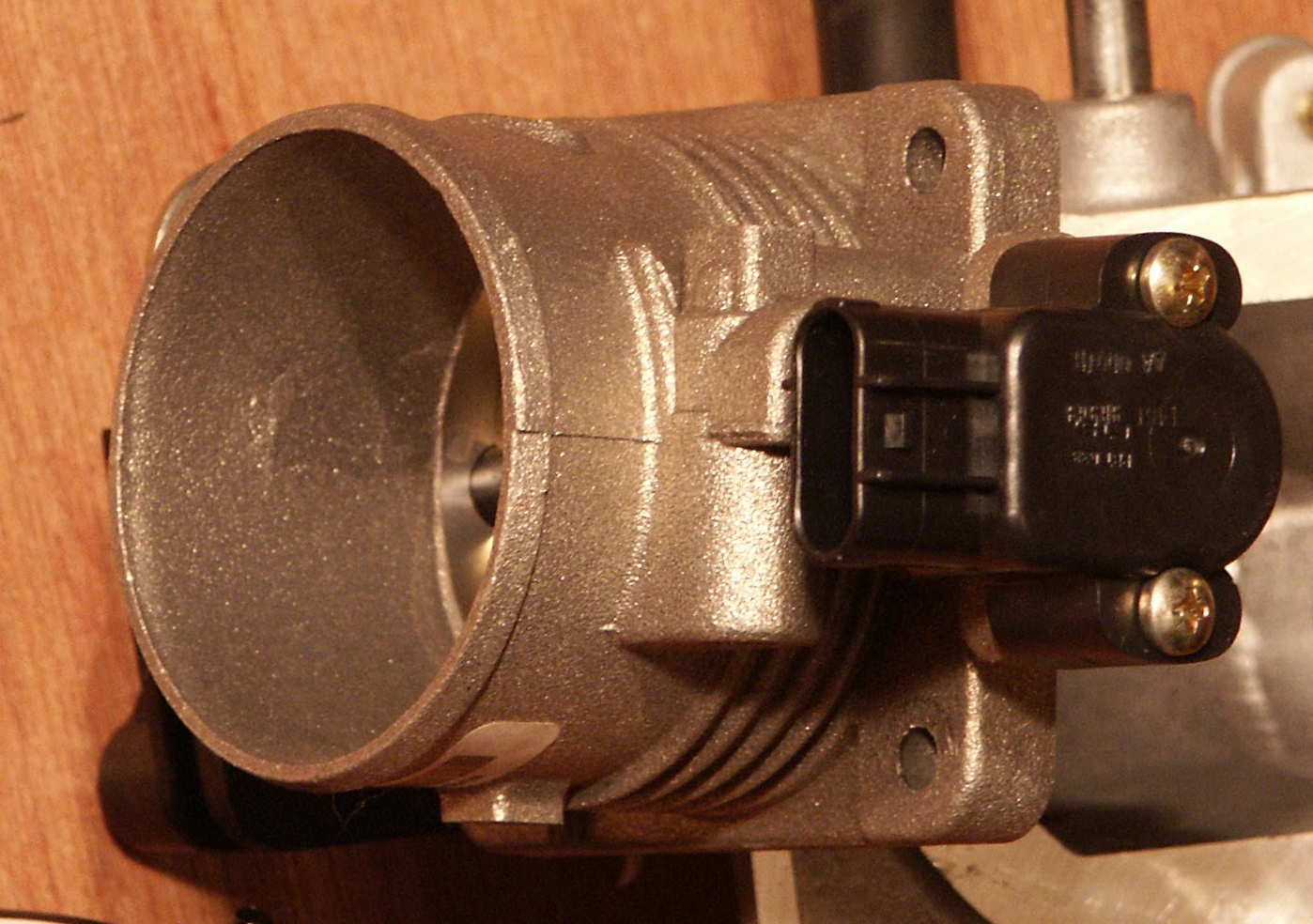

A closeup of the throttle position sensor. From the factory, the TPS
screws have thread locker on them.
![](PICT4652-vi.jpg)
![](PICT4653-vi.jpg)

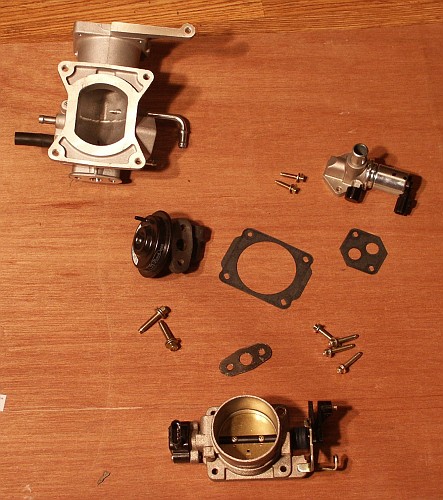

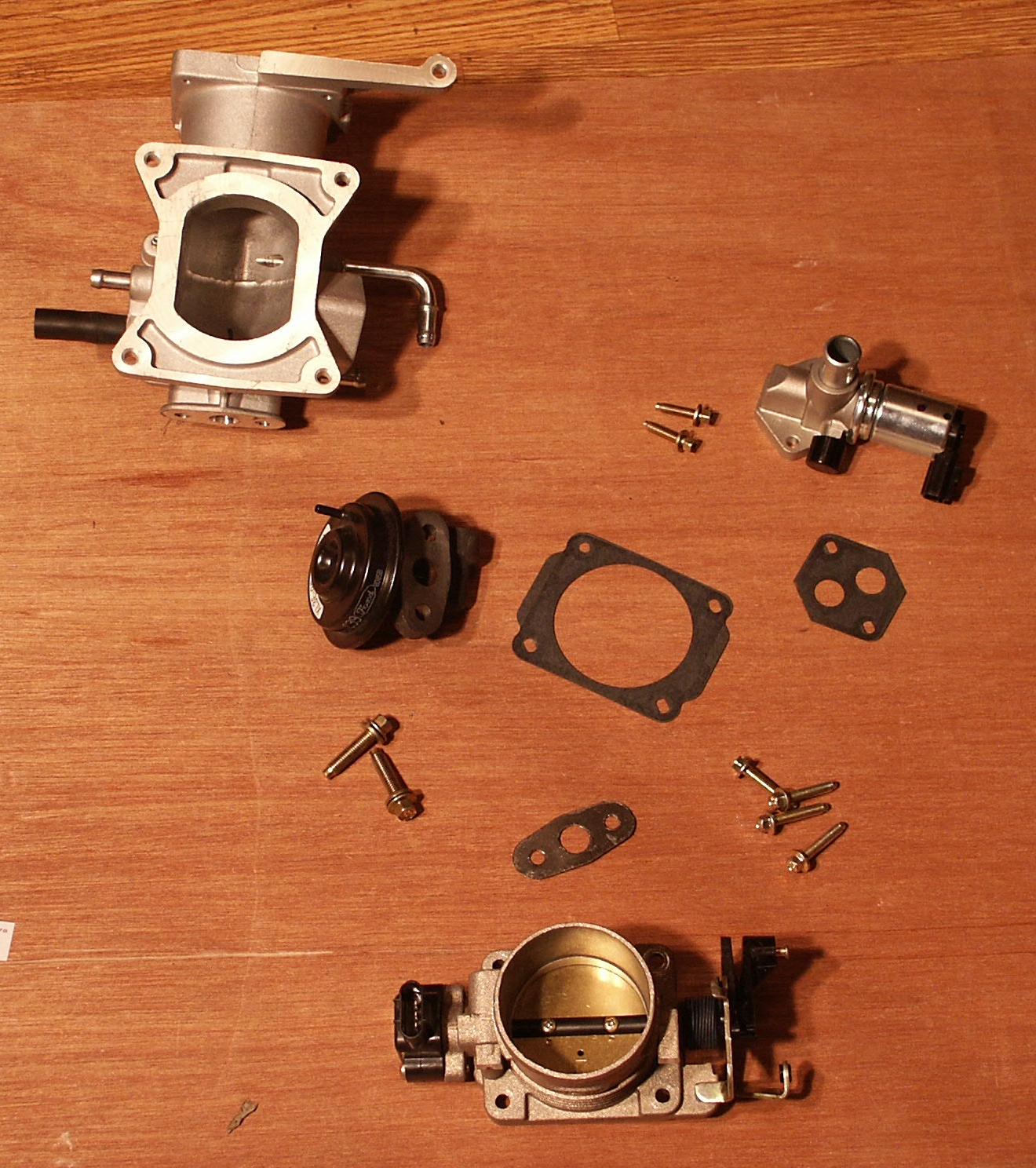

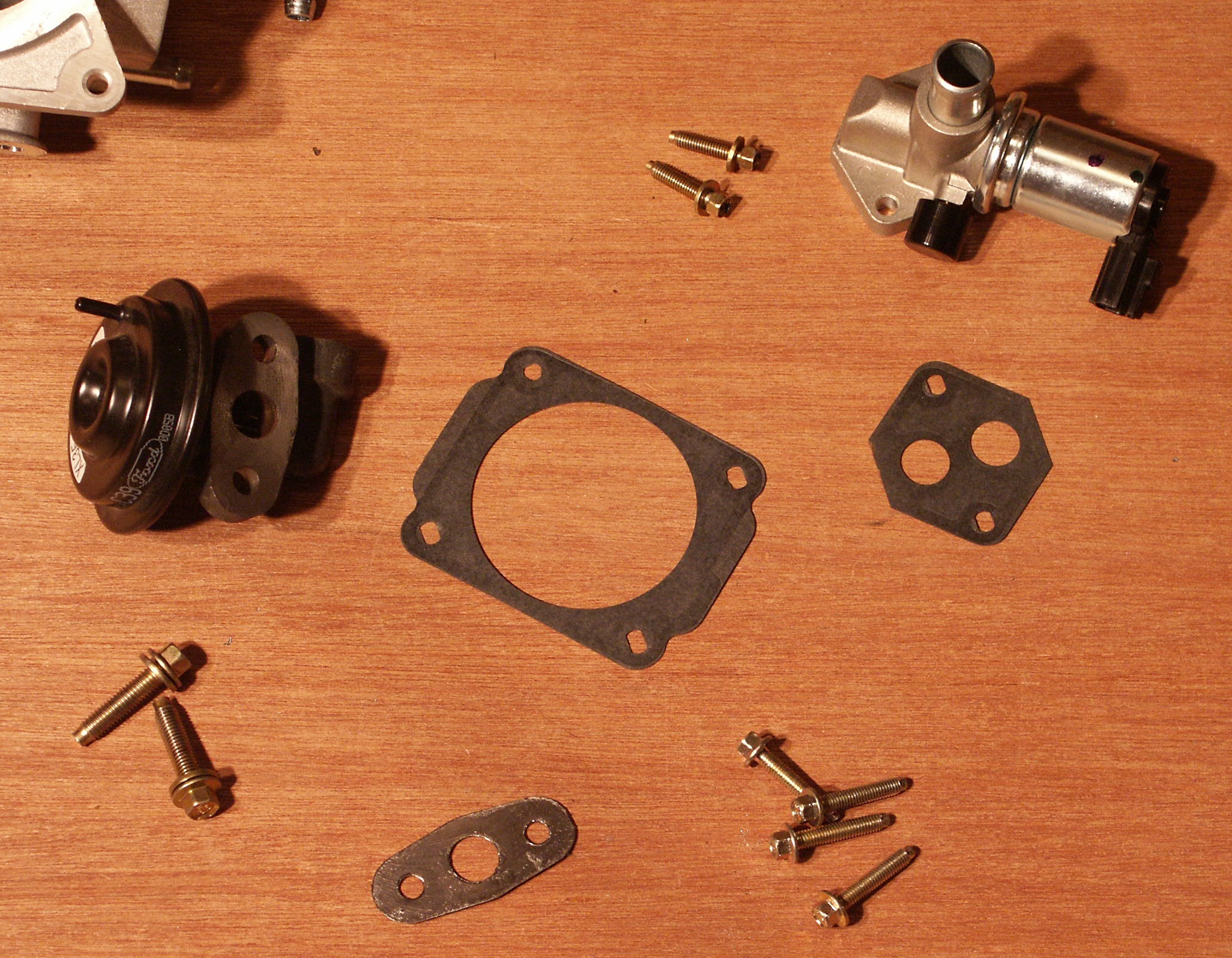

Take note of the EGR, TPS, and throttle body gaskets
![](PICT4655-vi.jpg)
Here's the EGR valve with the metal tube that runs to the exhaust
manifold connected. Note the flexible DPFE sensor hoses.
![](PICT4659-vi.jpg)
![](PICT4663-vi.jpg)
![](PICT4665-vi.jpg)

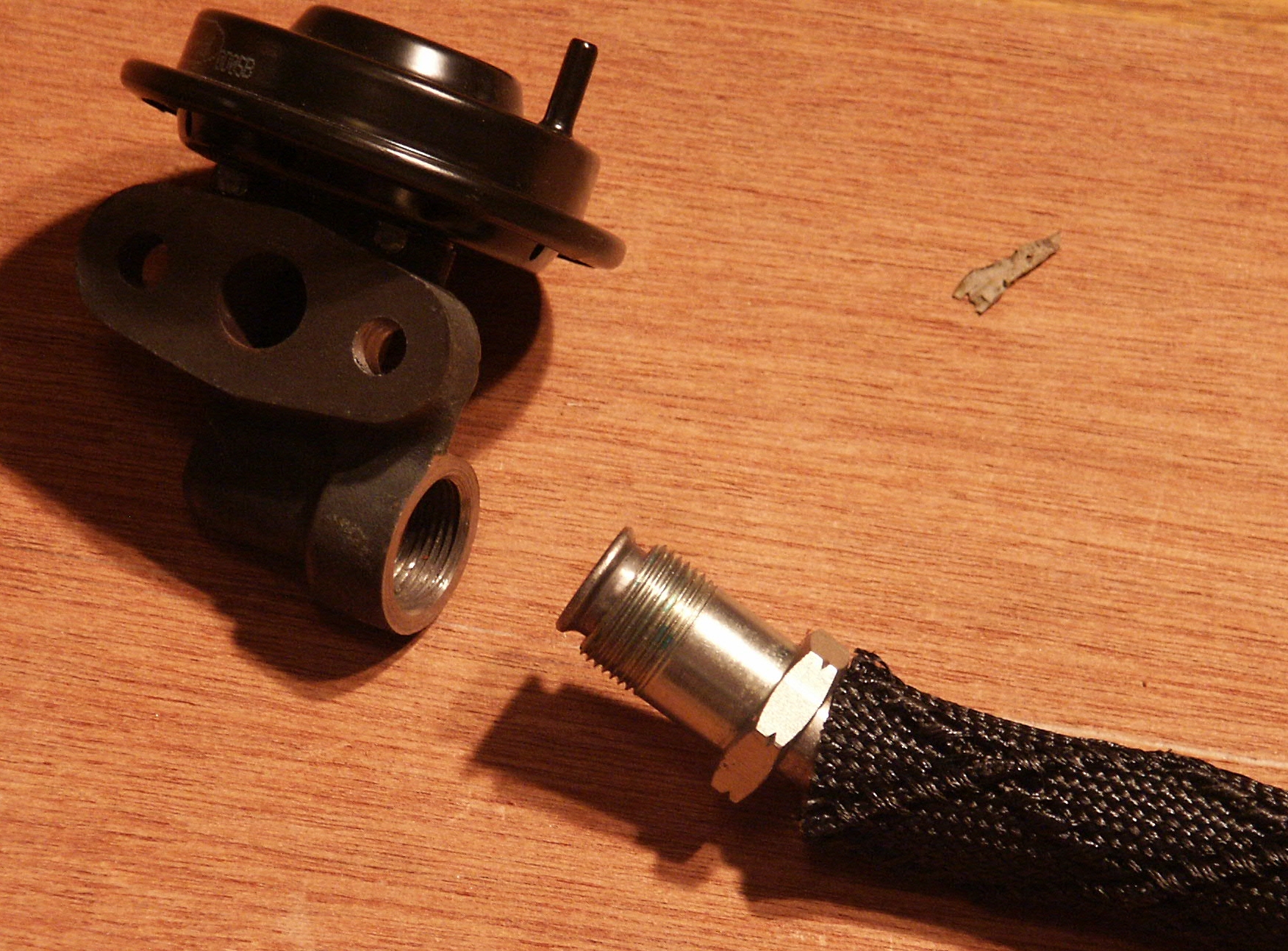

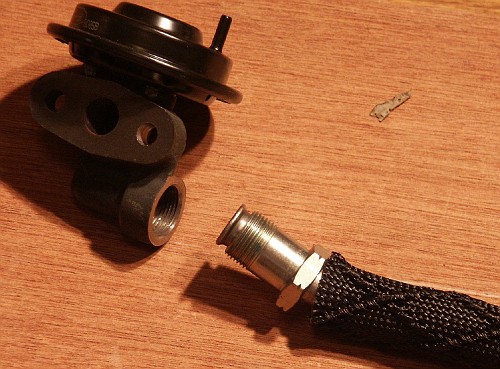

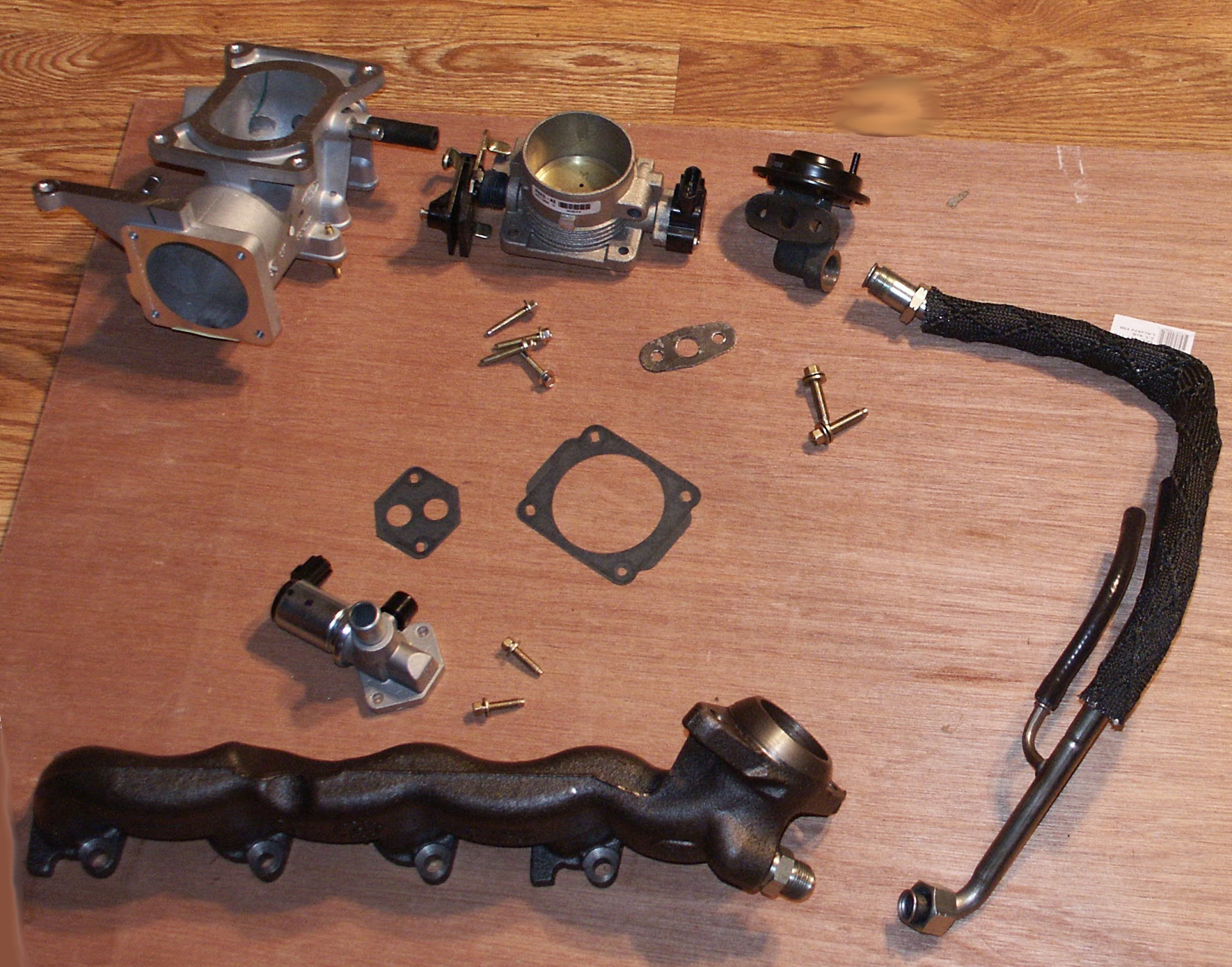

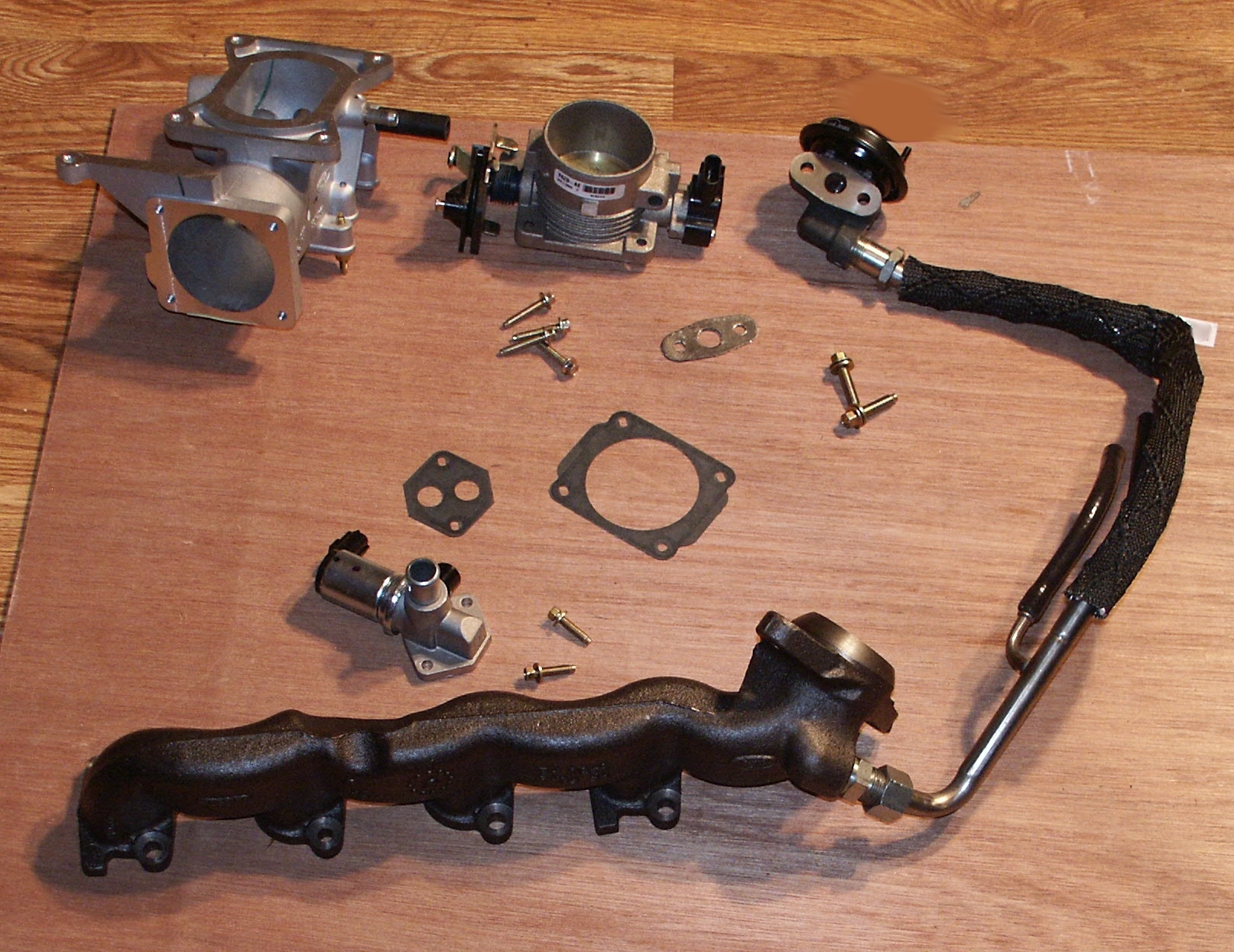

When new, the metal tube twists off the egr valve with minimal effort.
But on that 100k+ mile car, you'll likely have to use an acetylene
torch to heat the connection first before using a wrench.
![](PICT4668-vi.jpg)

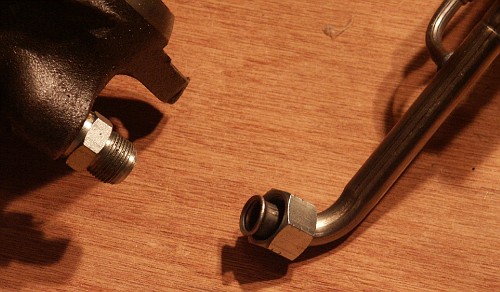

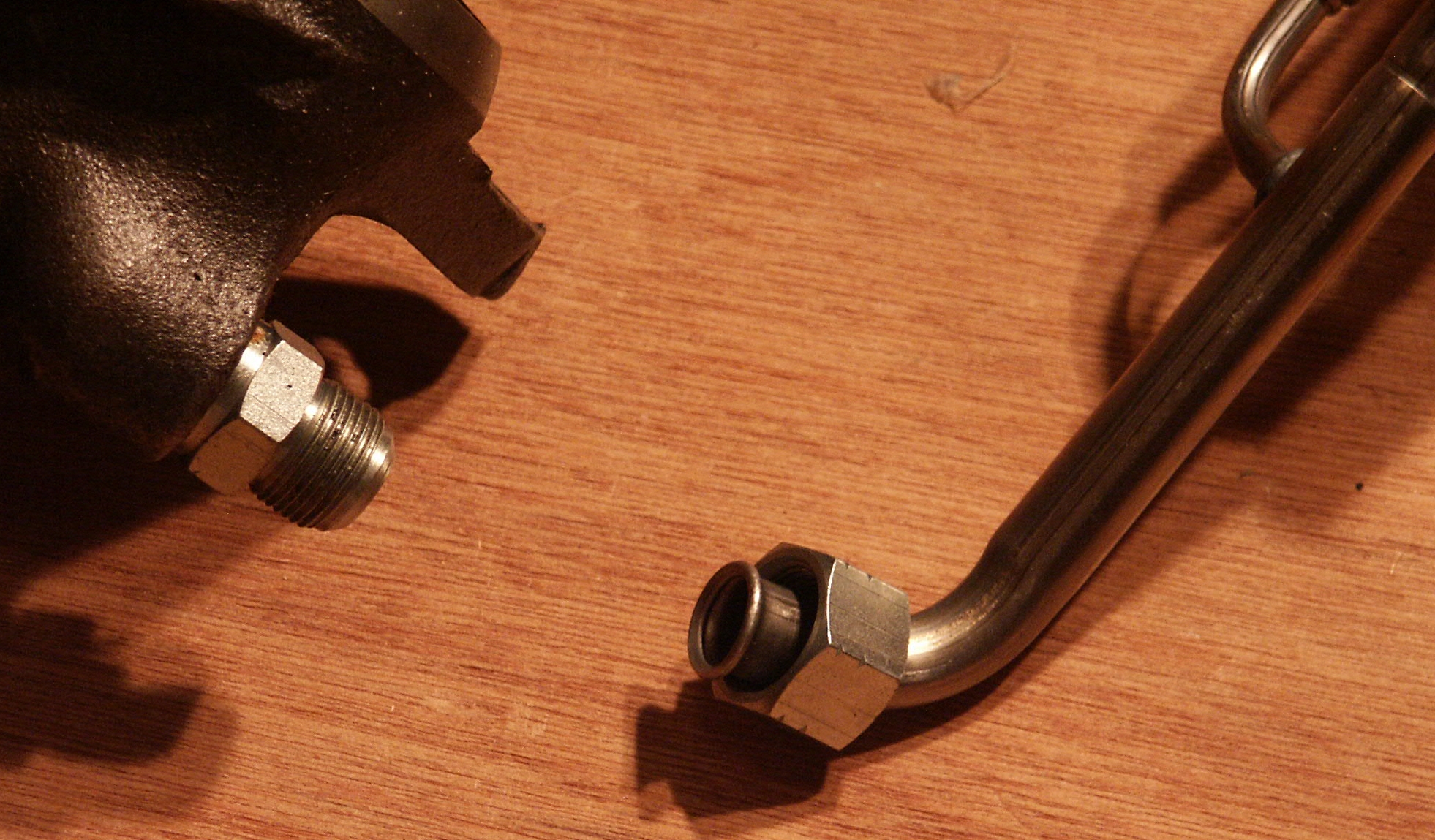

Here's the connection of the egr tube to the exhaust manifold. This
connection often requires lots of effort to seperate on the 100k+ mile
cars.
![](PICT4669-vi.jpg)

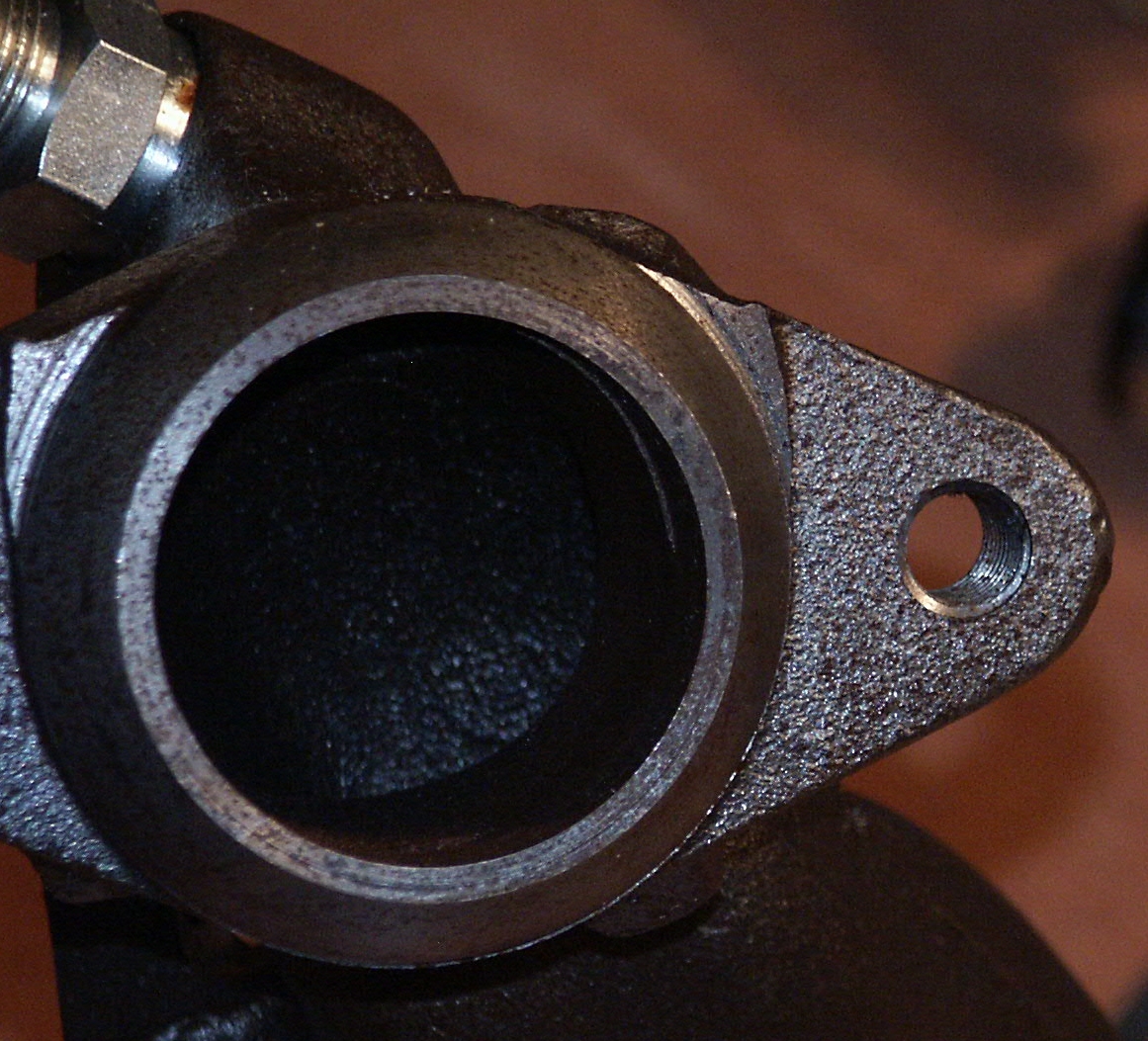

This is the area of the exhaust manifold that the catalytic converter
flange would normally connect to.

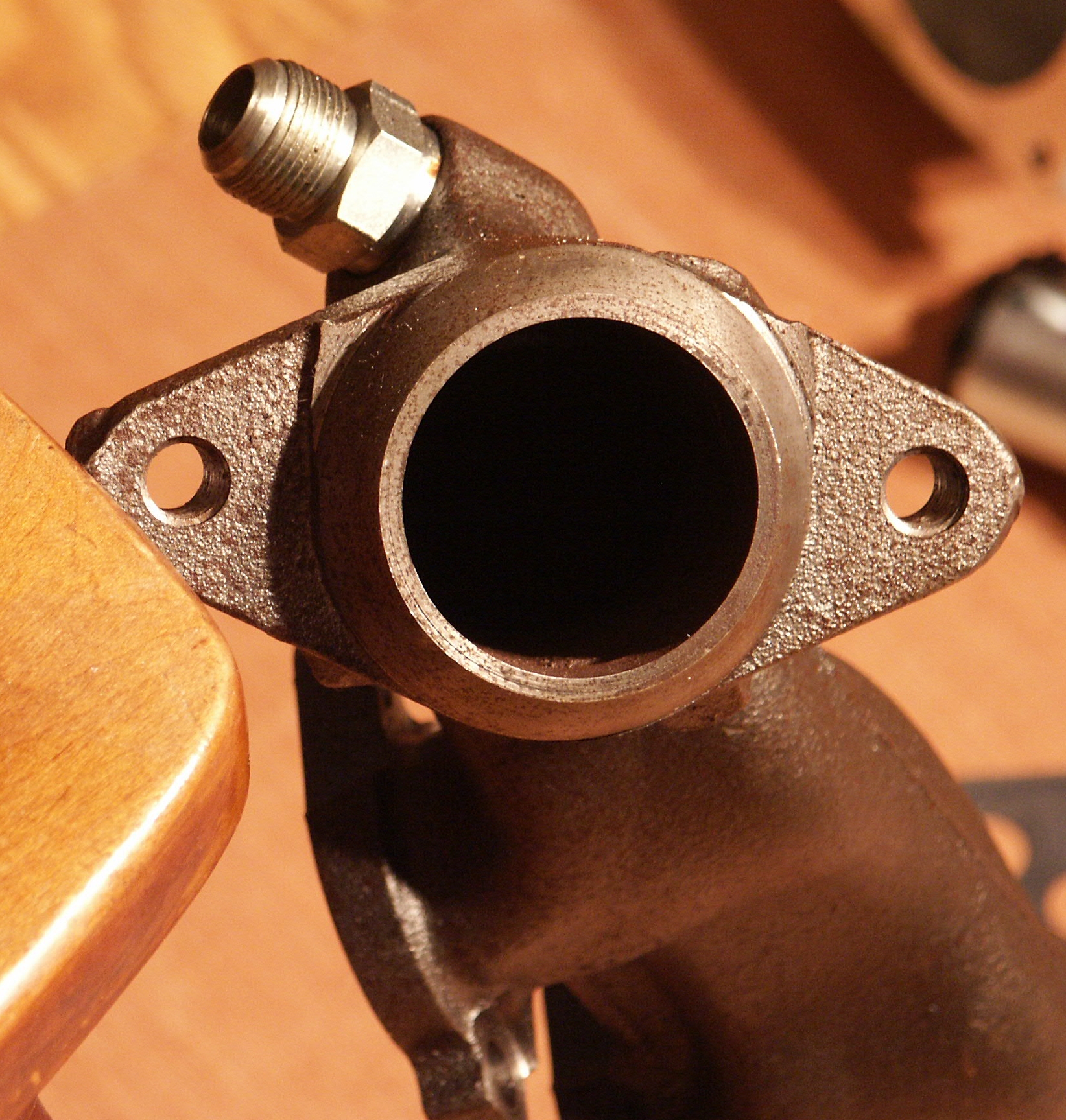

![](PICT4672-vi.jpg)
Normally, there would be a stud screwed in to hold the catalytic
converter to the exhaust manifold.
![](PICT4678-vi.jpg)

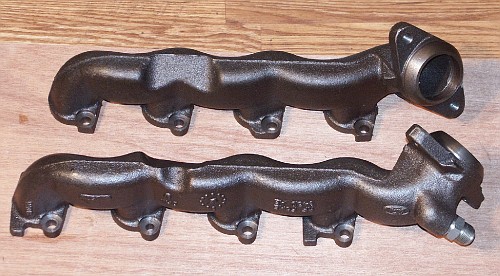

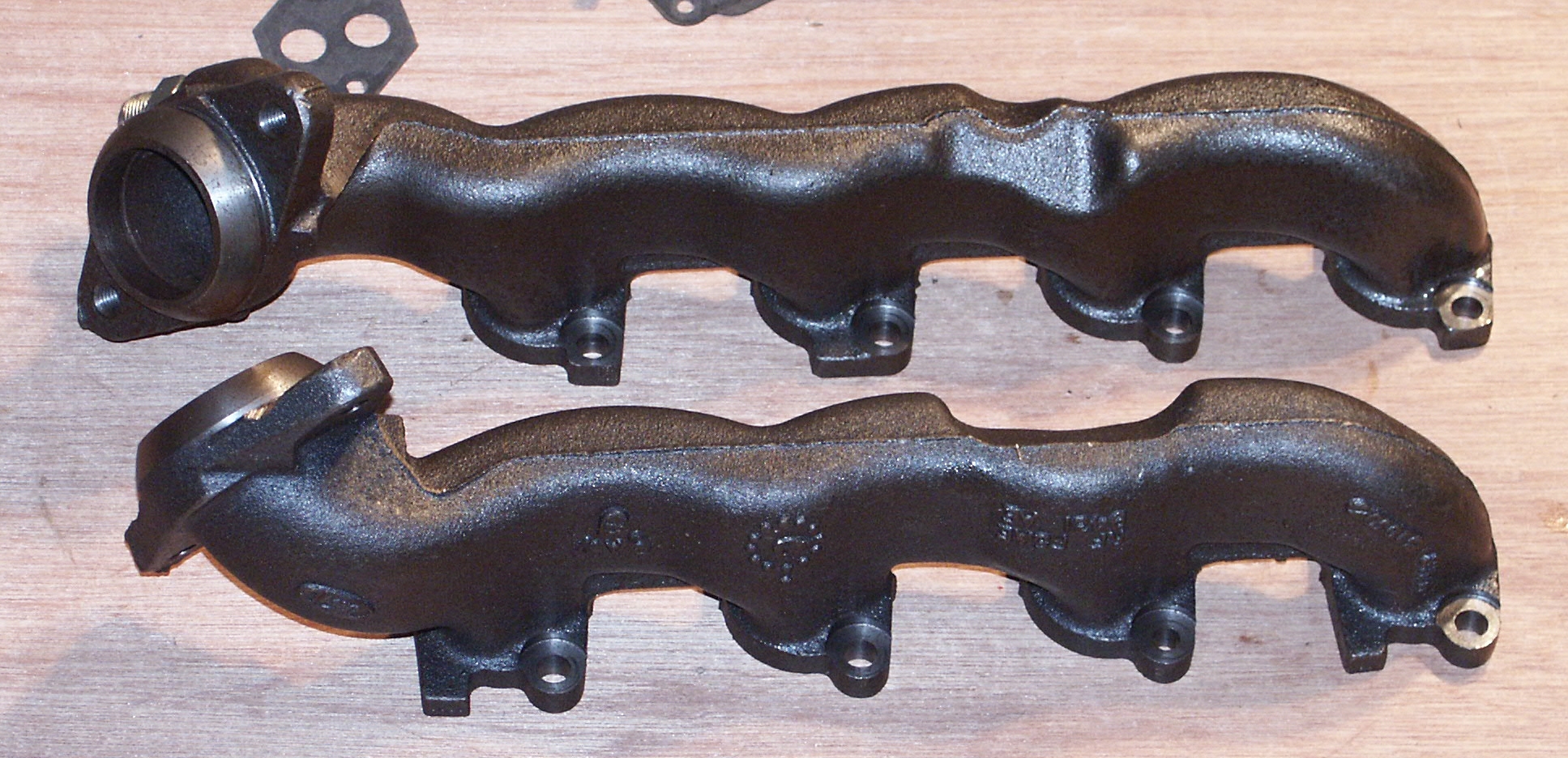

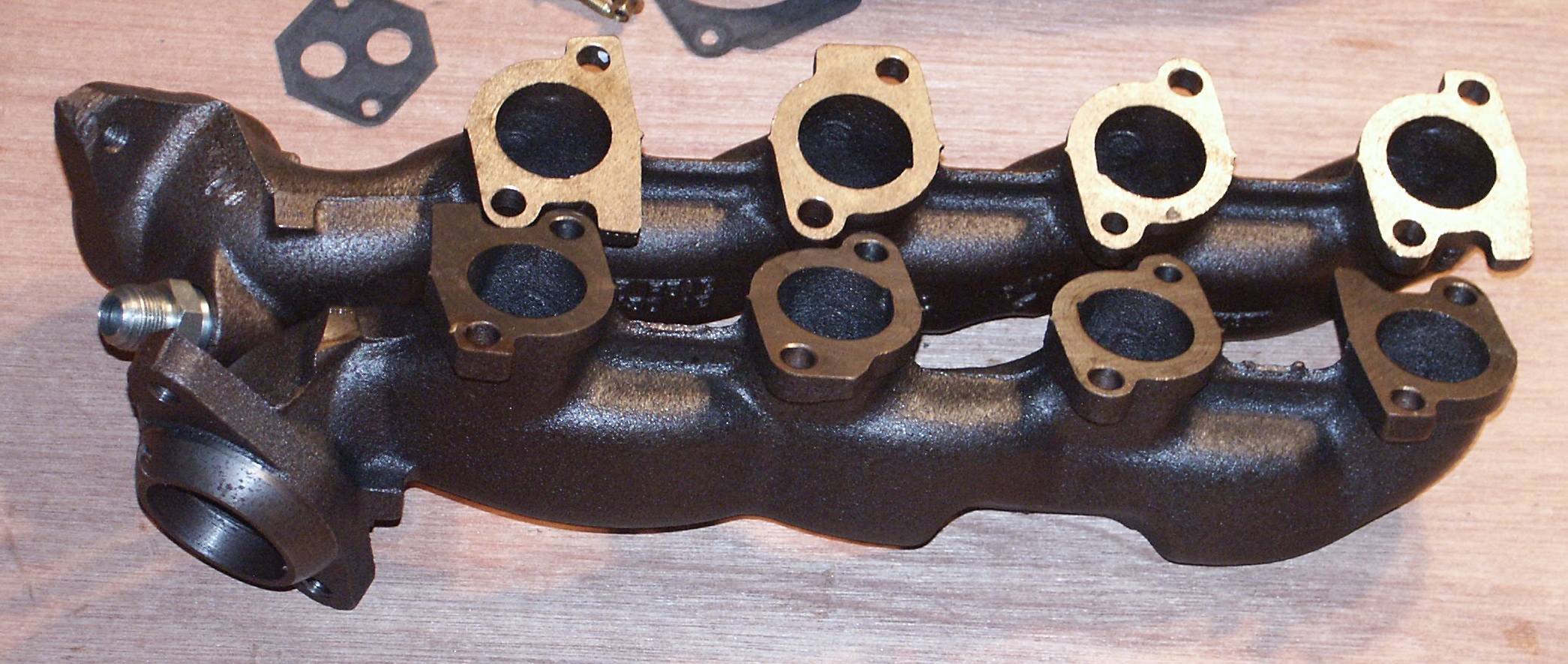

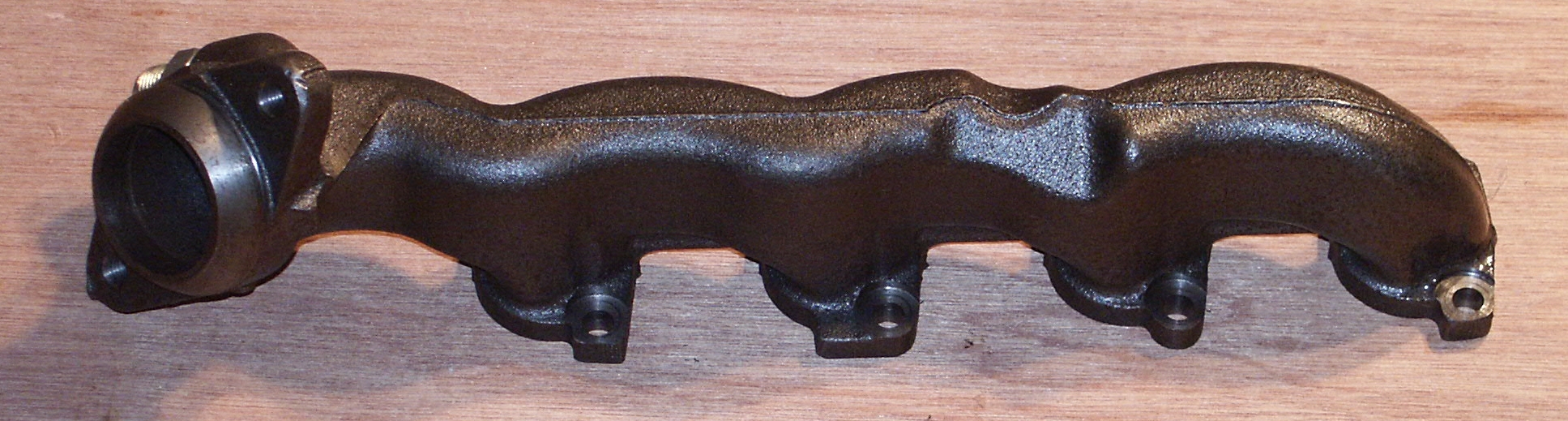

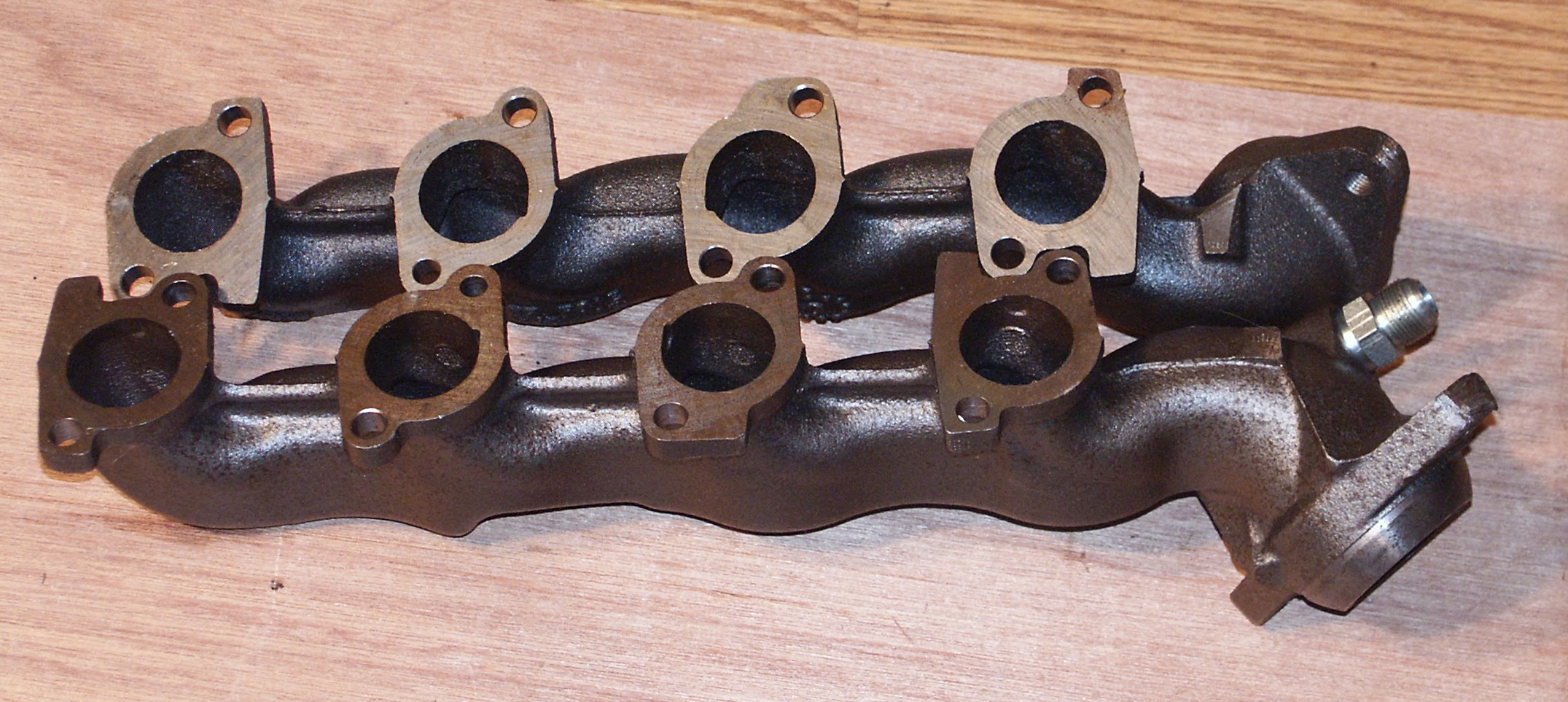

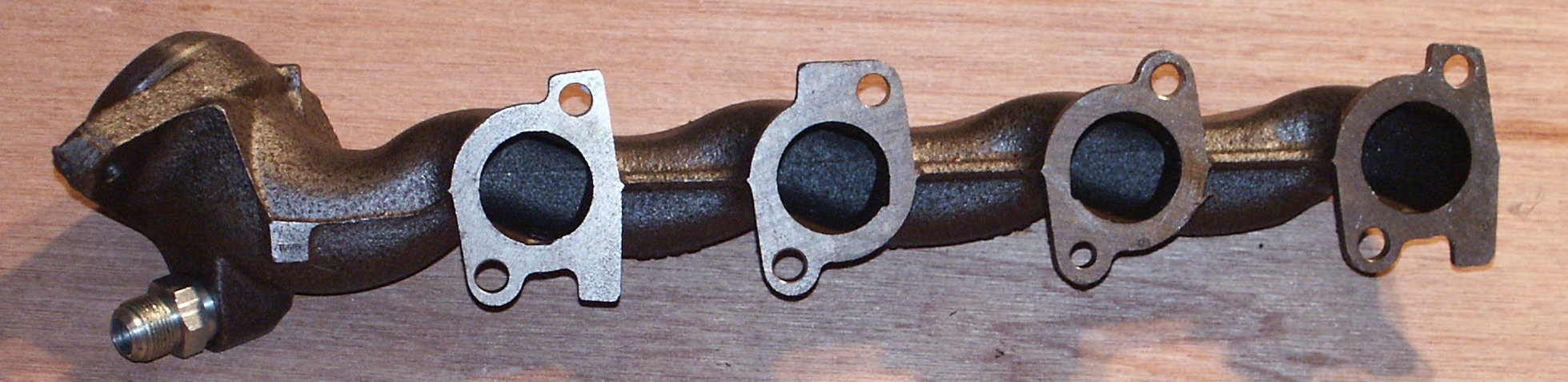

Here's the side of the exhaust manifold which would normally be
connected flush against the cylinder head exhaust ports.
![](PICT4681-vi.jpg)
![](PICT4683-vi.jpg)
![](PICT4685-vi.jpg)

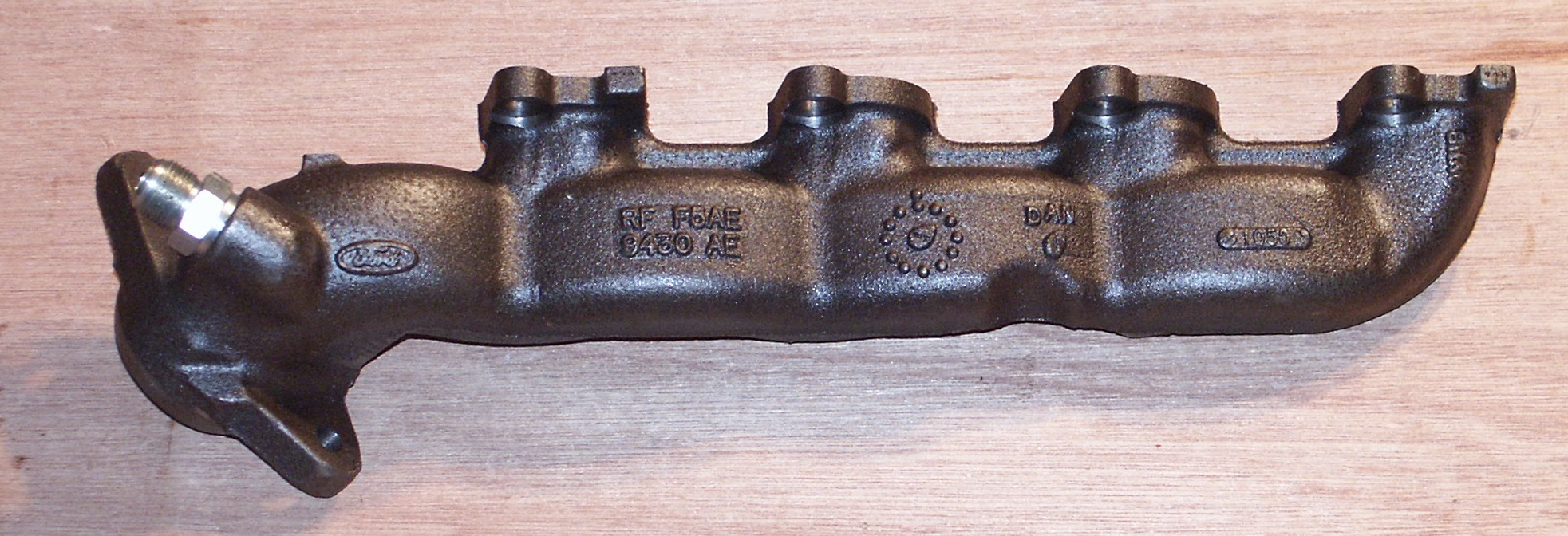

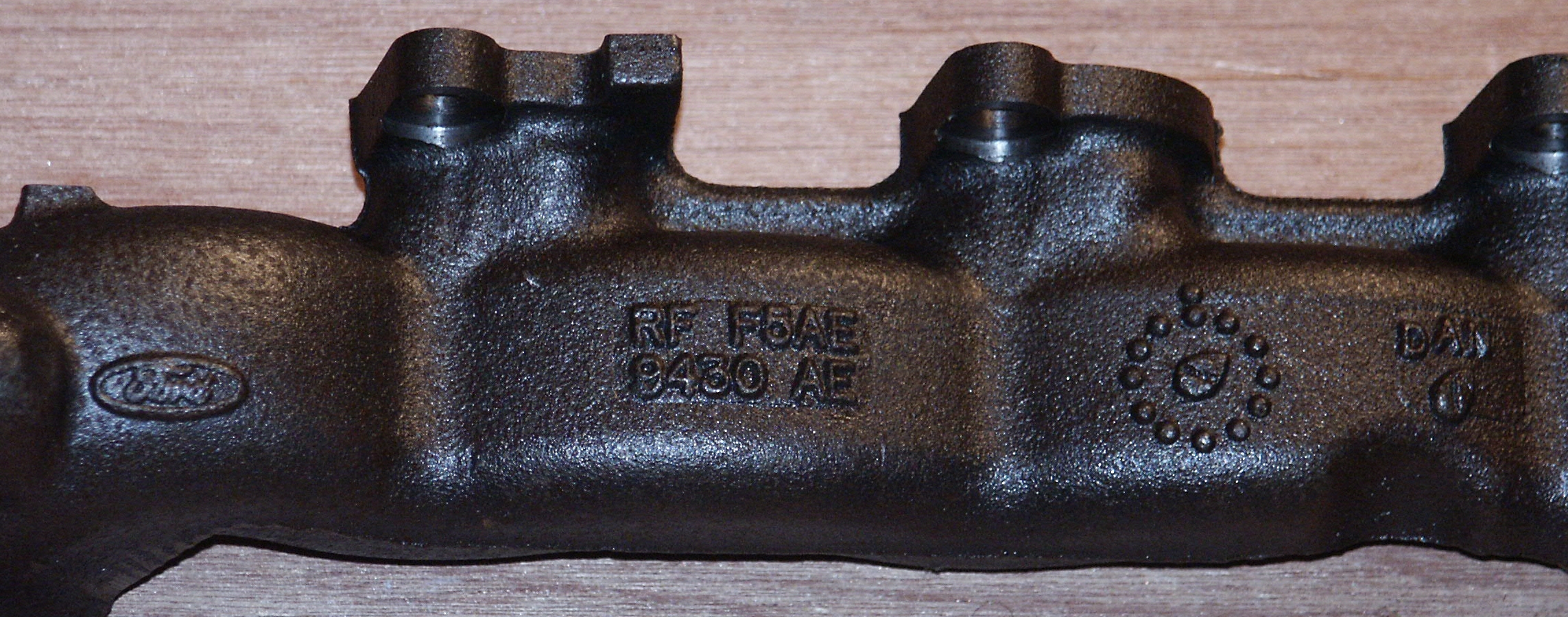

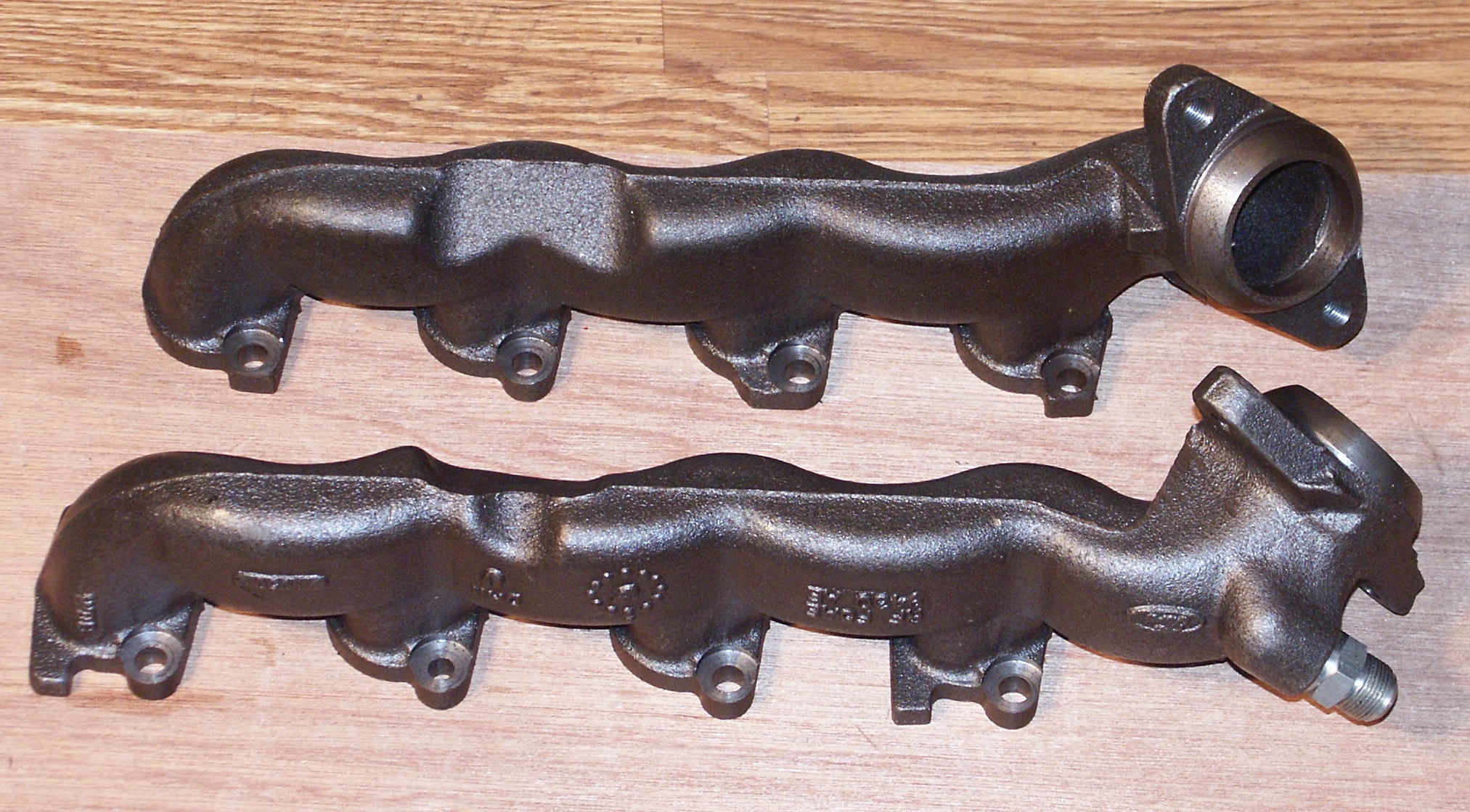

And a closeup of the casting numbers
![](PICT4687-vi.jpg)
![](PICT4688-vi.jpg)
![](PICT4690-vi.jpg)
![](PICT4691-vi.jpg)
![](PICT4697-vi.jpg)
![](PICT4698-vi.jpg)

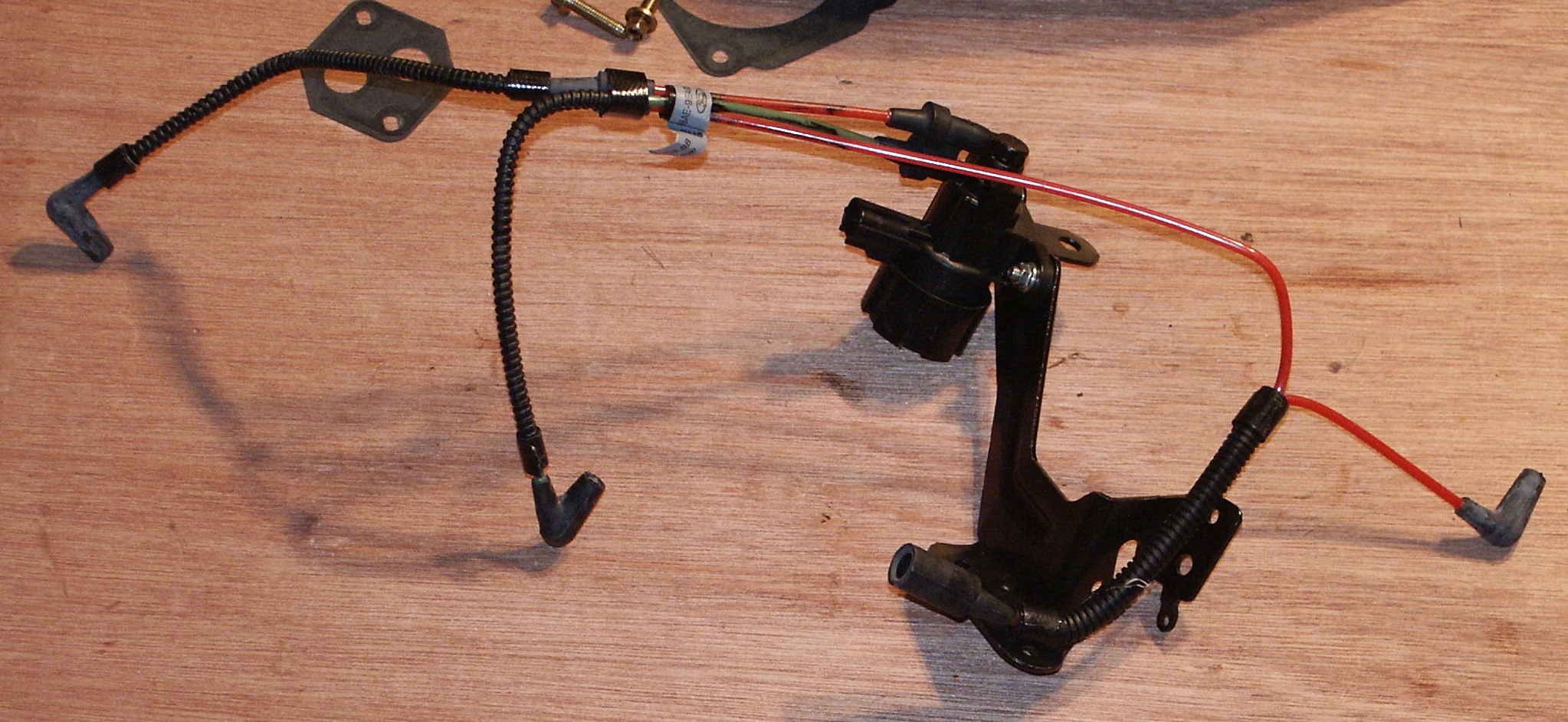

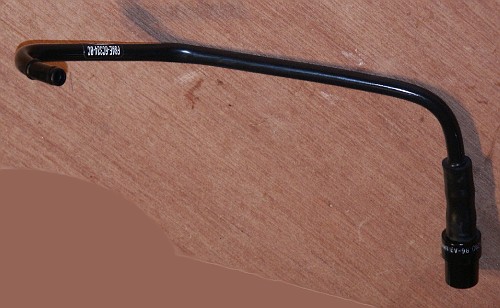

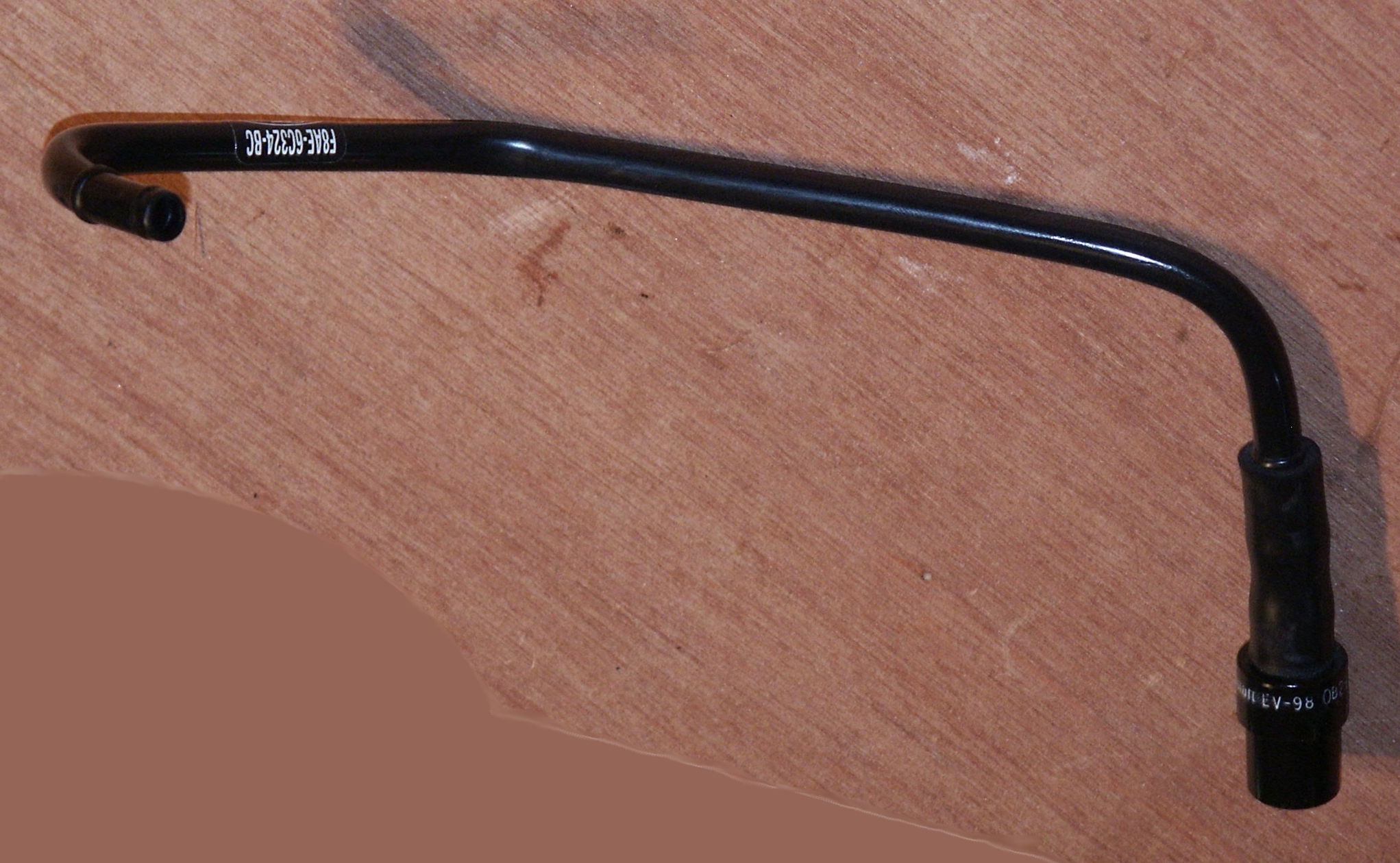

Here's the pcv valve and the line which connects it to the air intake
plenum
