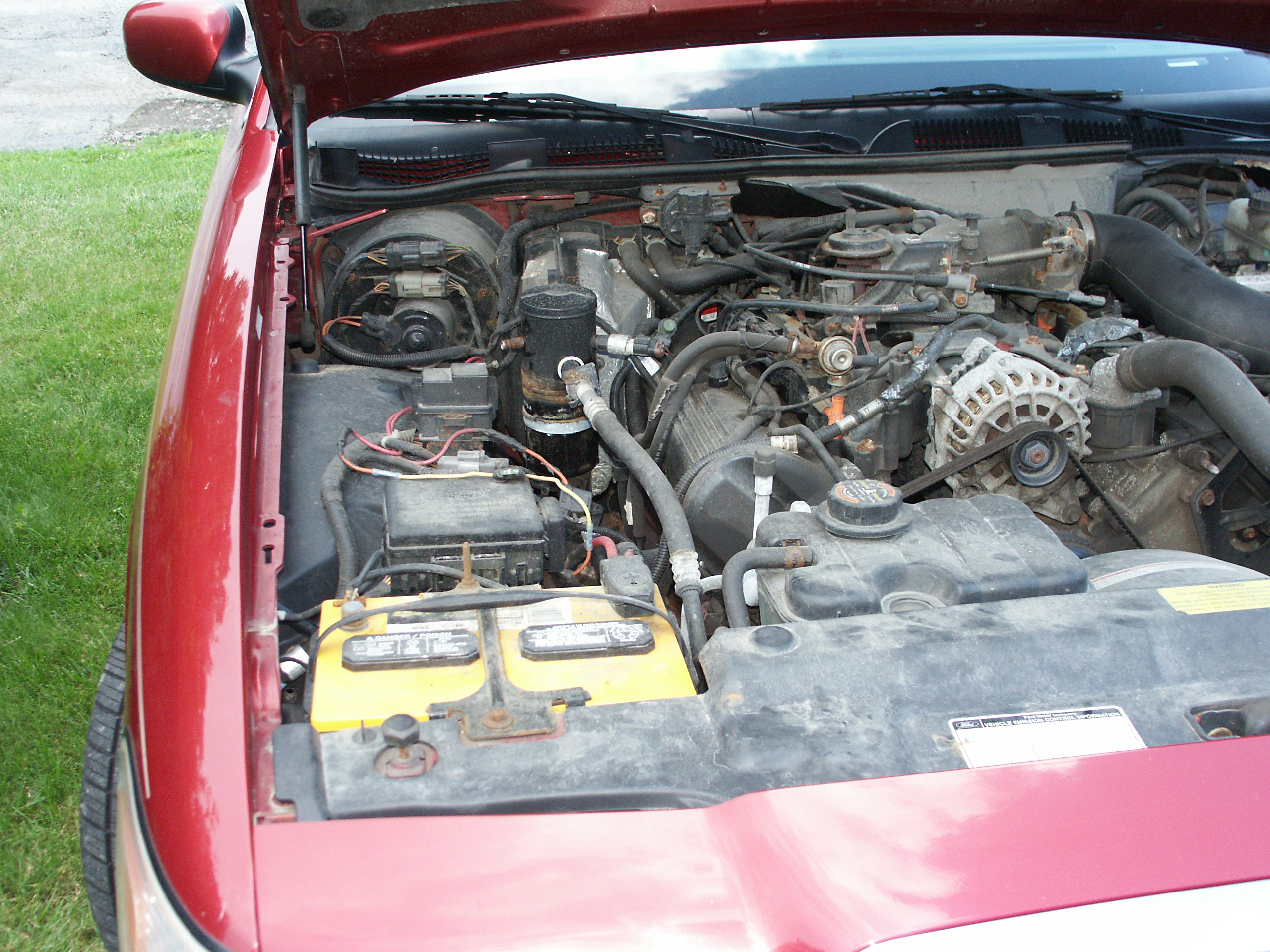

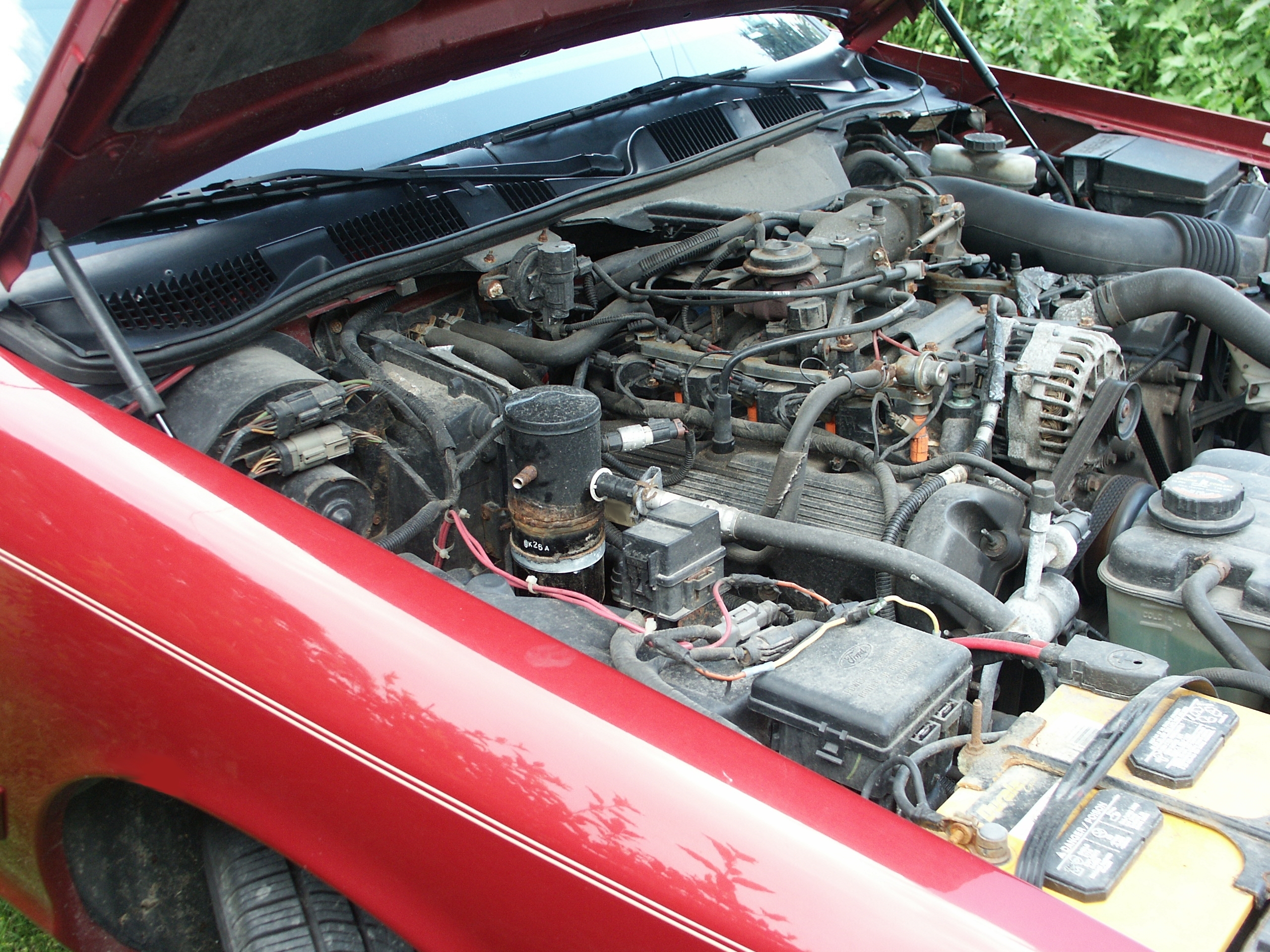

For todays project, the accumulator is going to be replaced on a 2000
crown victoria because the service port is badly corroded and there is
heavy scaly rust all around the accumulator. While everything is apart,
new springlock o-rings and a new orifice tube are also going to be
installed.
![](PICT0233-vi.jpg)
![](PICT0236-vi.jpg)

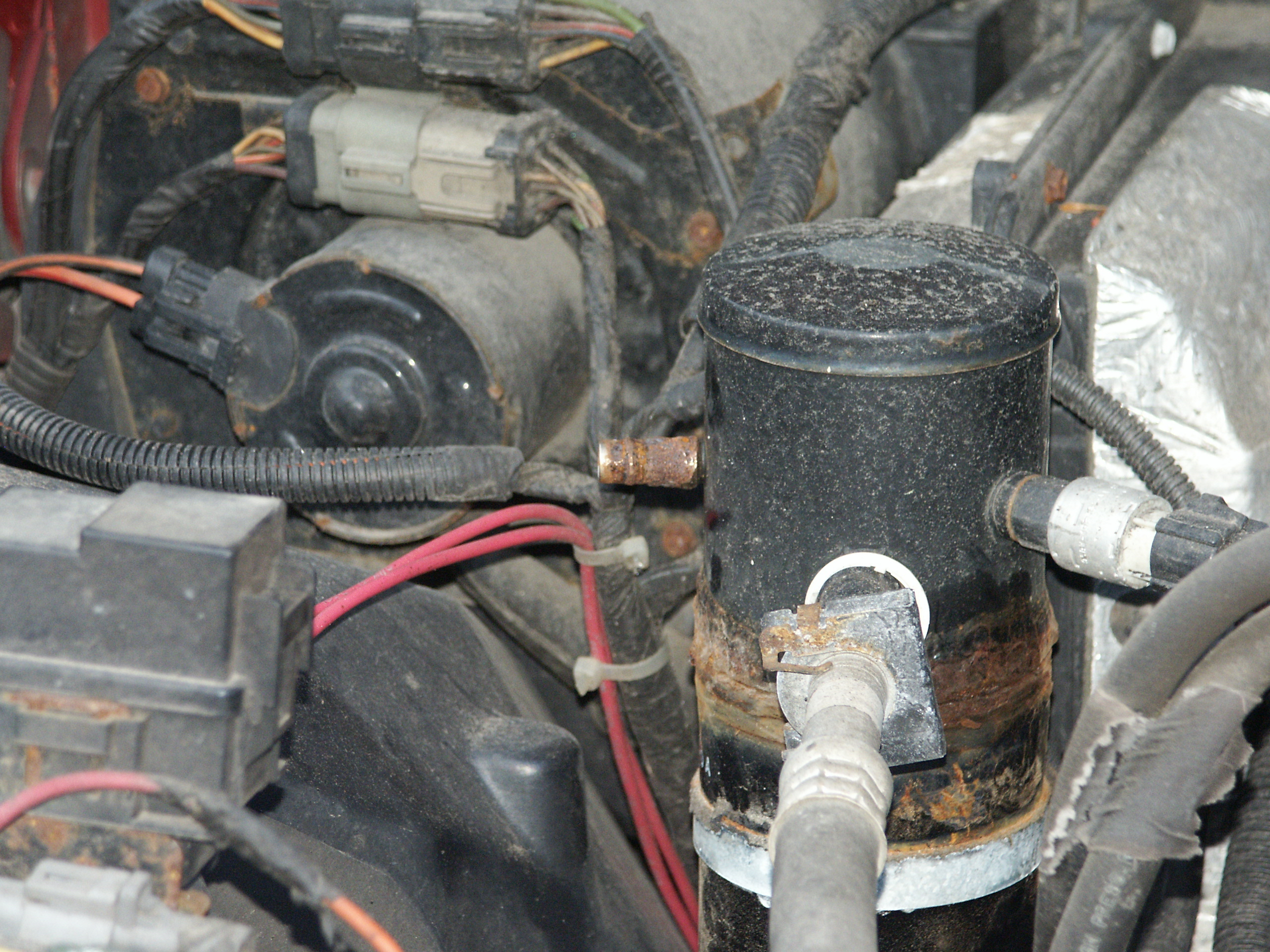

The accumulator is almost always wet whenever the air conditioner is
running. Throw some chloride road salt in the mixture and this is the
result.
![](PICT0239-vi.jpg)
So it's parts acquisition time.

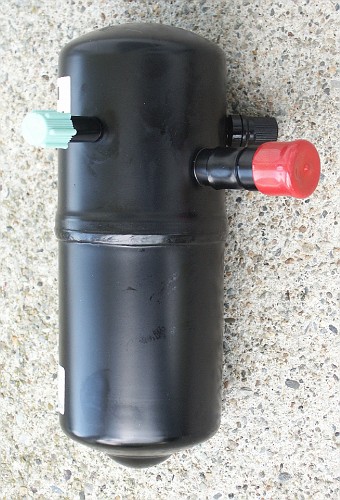

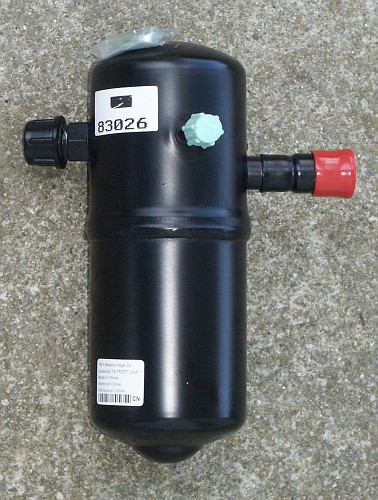

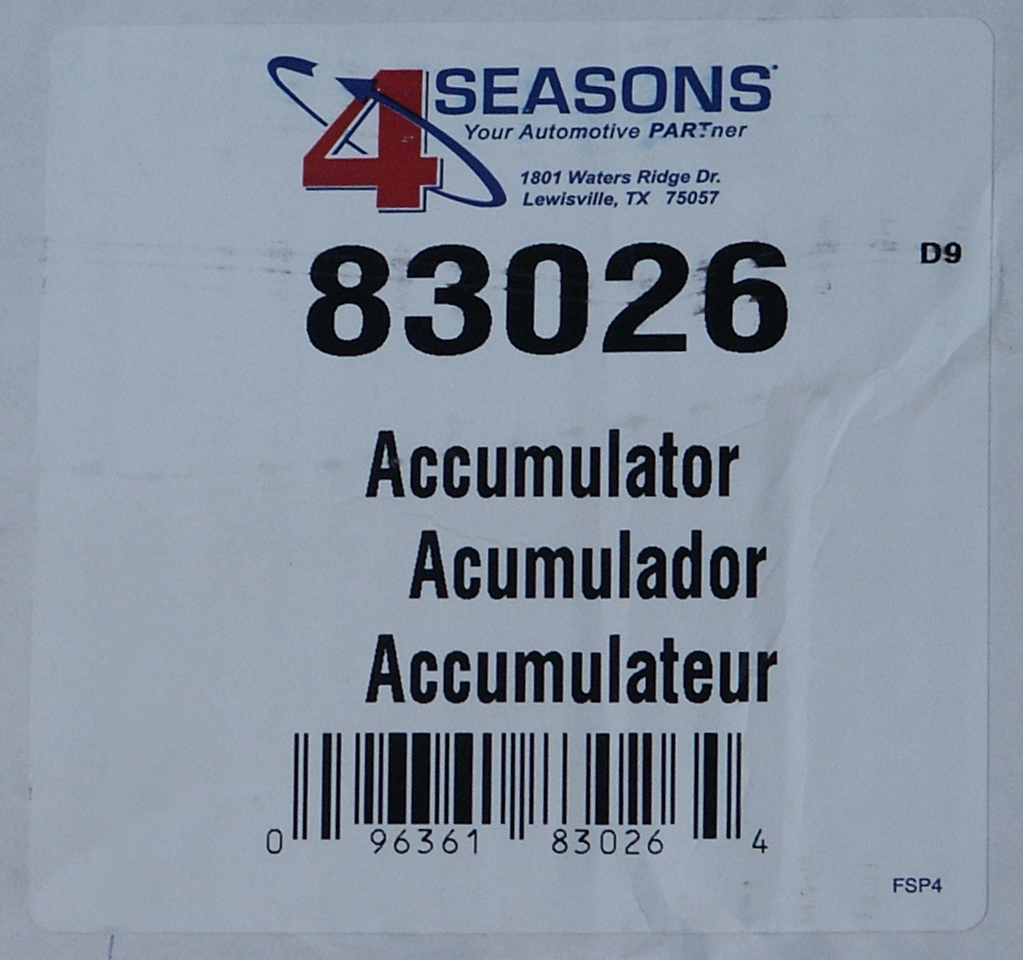

A new accumulator
![](PICT0161-vi.jpg)
![](PICT0168-vi.jpg)

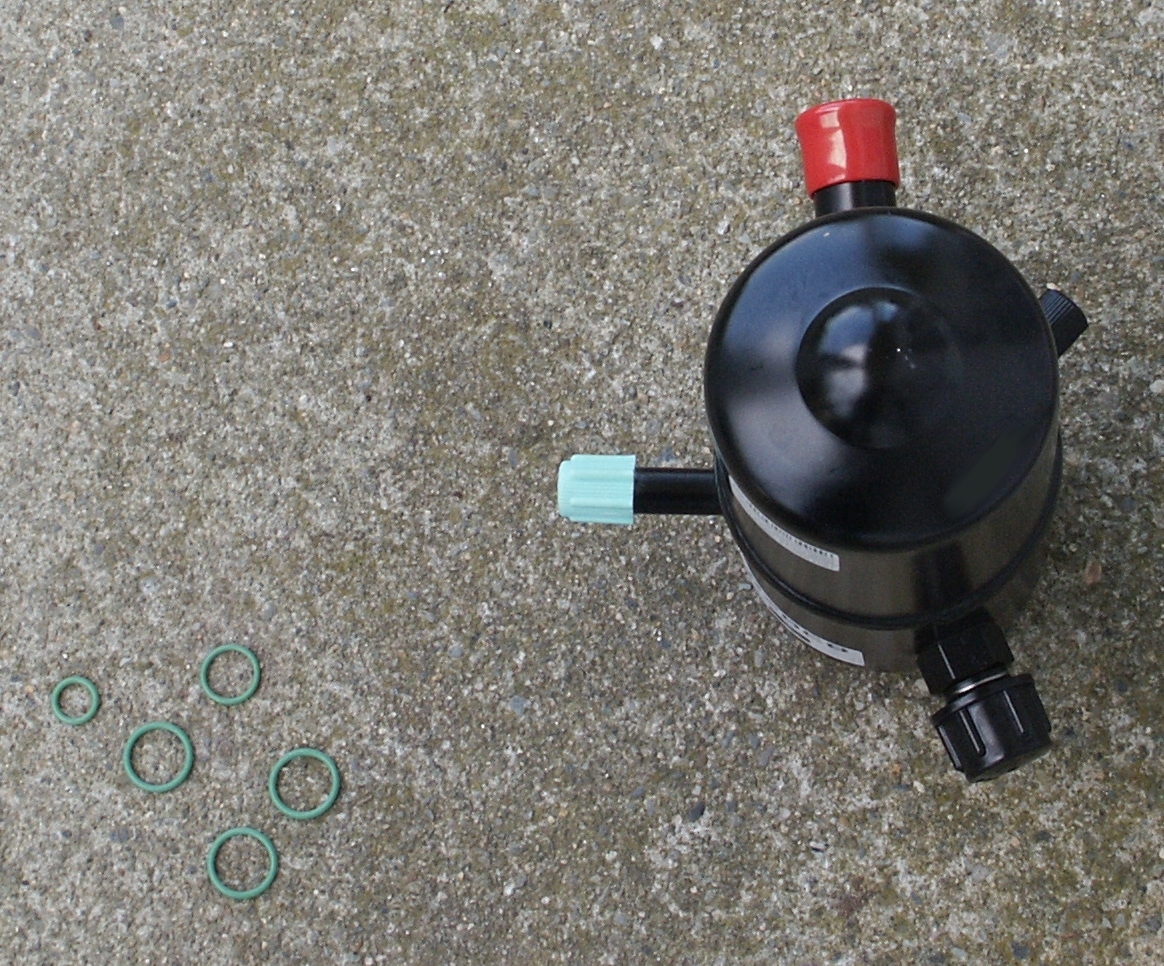

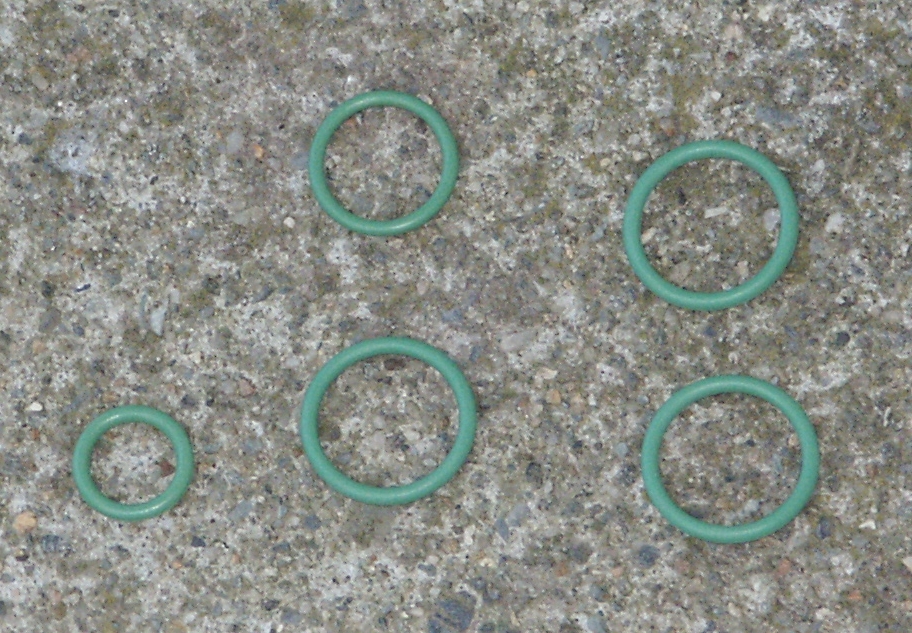

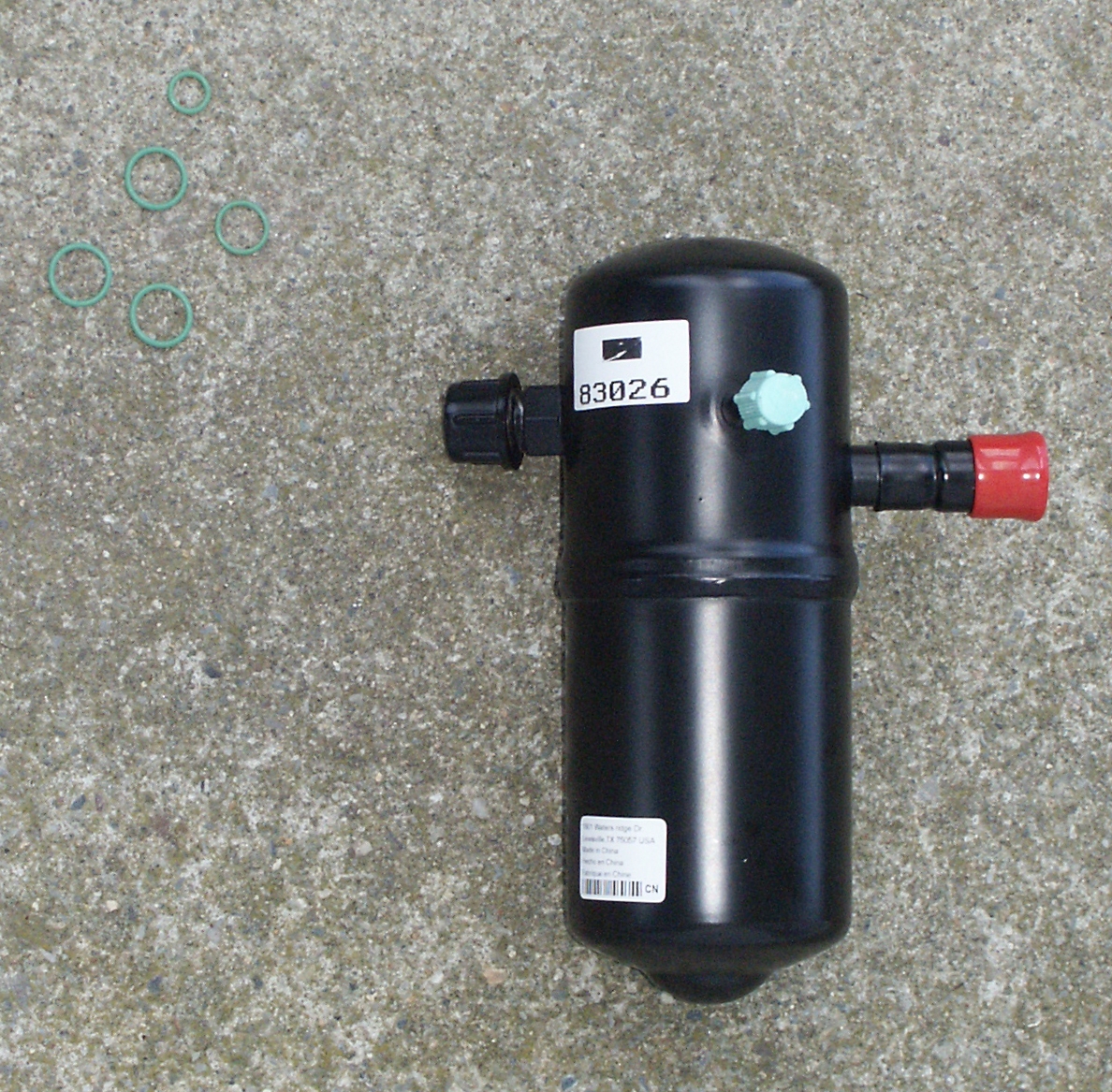

This package came with a bag of o-rings taped to the top of the
accumulator
![](PICT0172-vi.jpg)
![](PICT0174-vi.jpg)
![](PICT0179-vi.jpg)
![](PICT0214-vi.jpg)

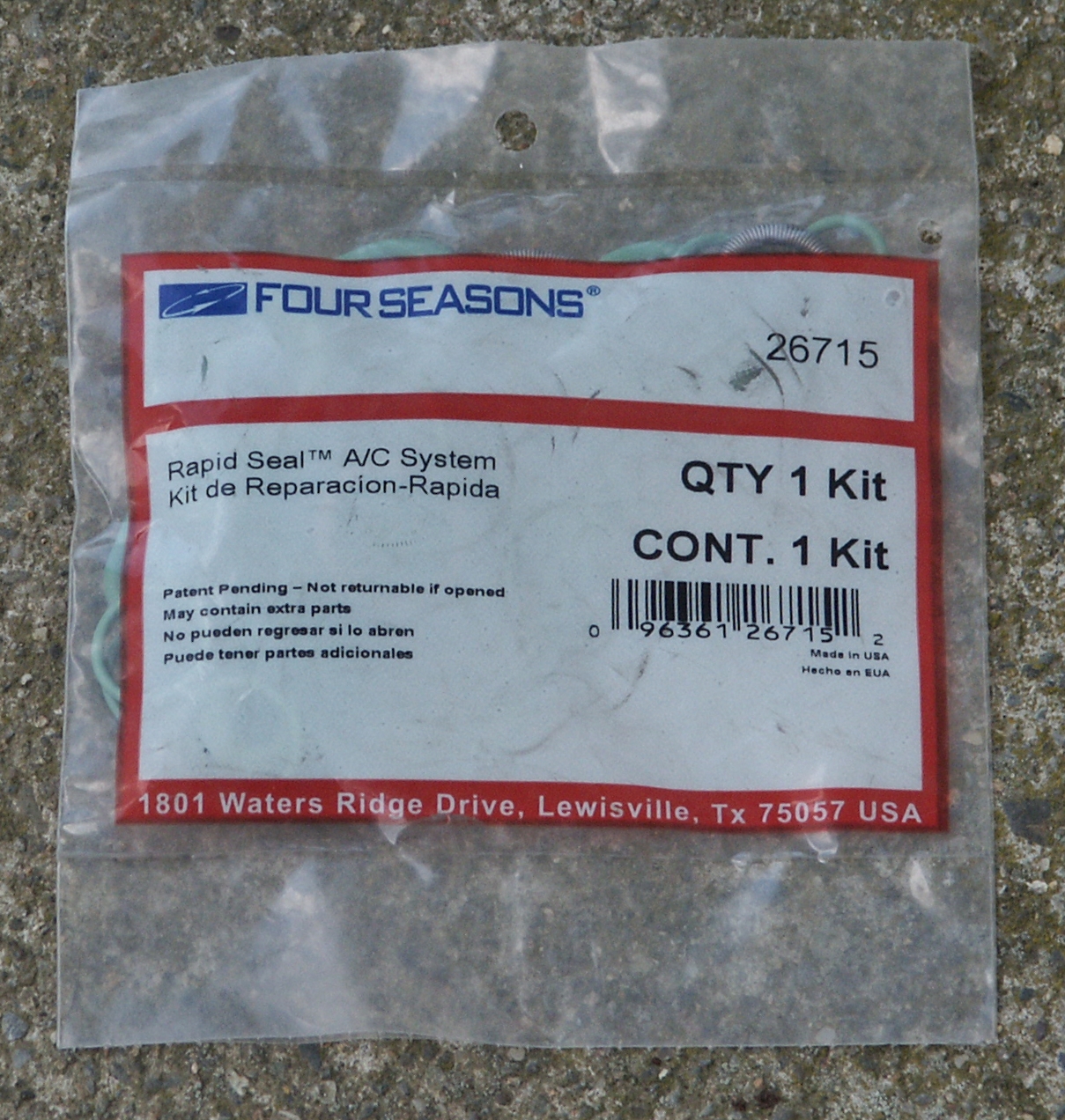

Next part up is a Rapid Seal 26715 kit from Four Seasons
![](PICT0186-vi.jpg)
![](PICT0189-vi.jpg)

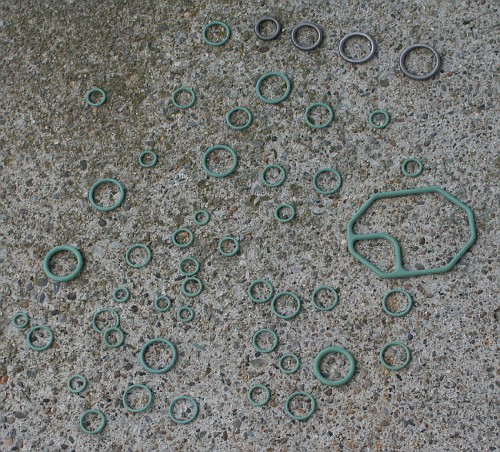

This kit contained replacement o-ring seals for all of the components
except the peanut block fittings on the condenser
![](PICT0224-vi.jpg)

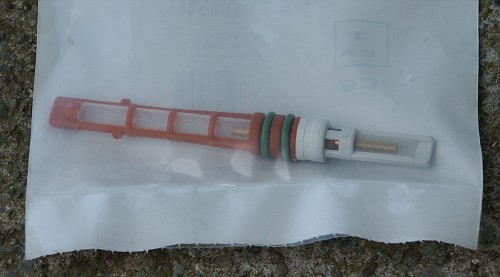

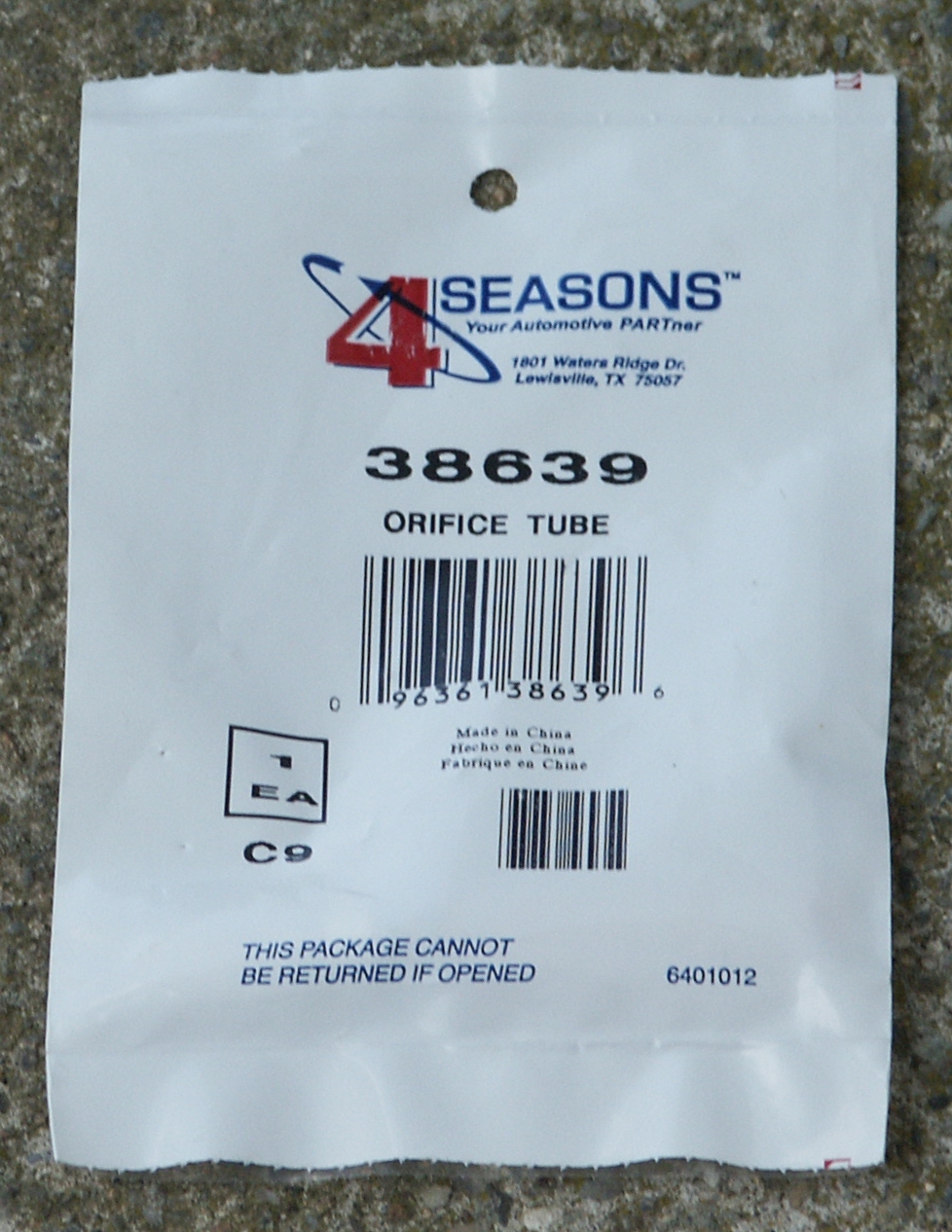

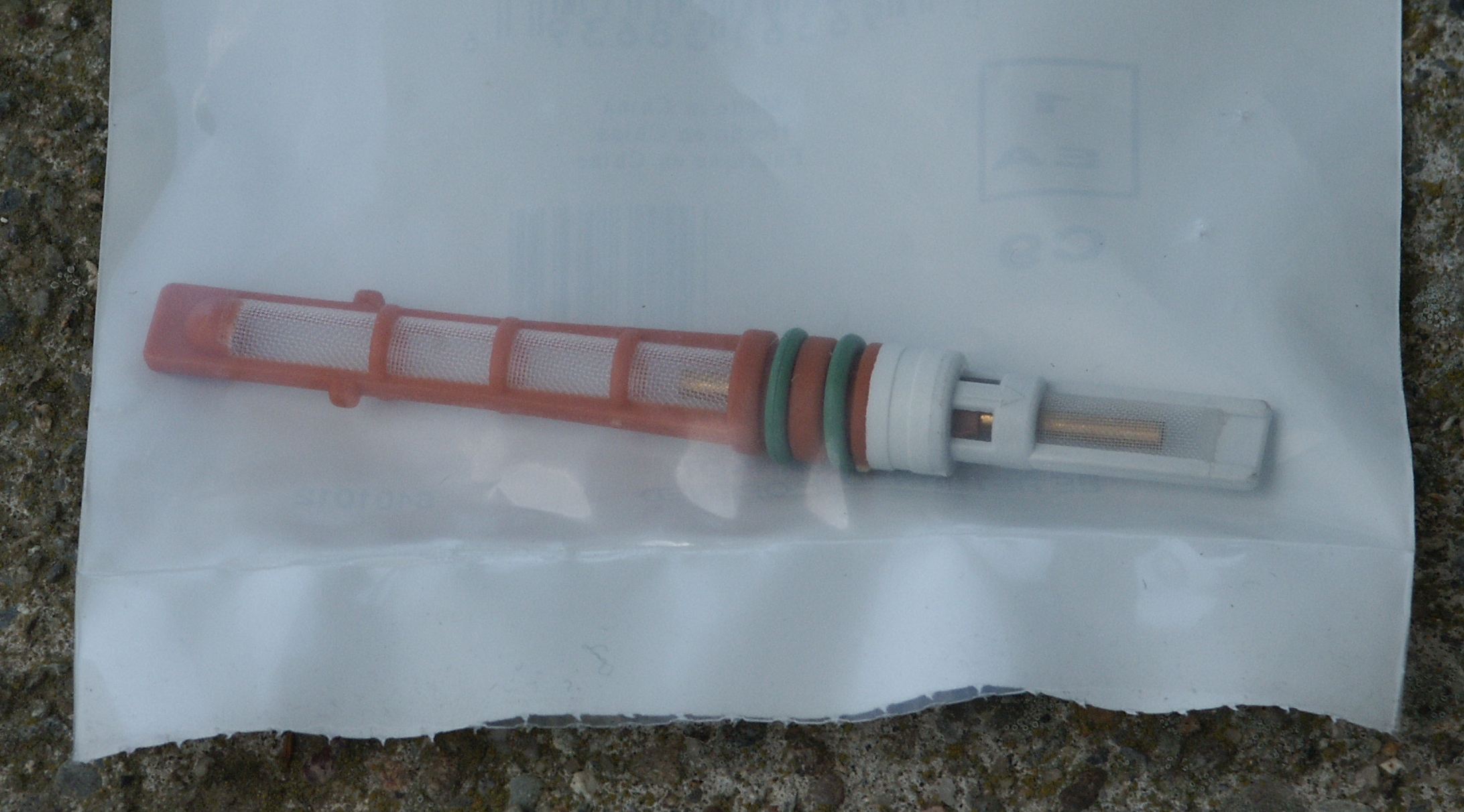

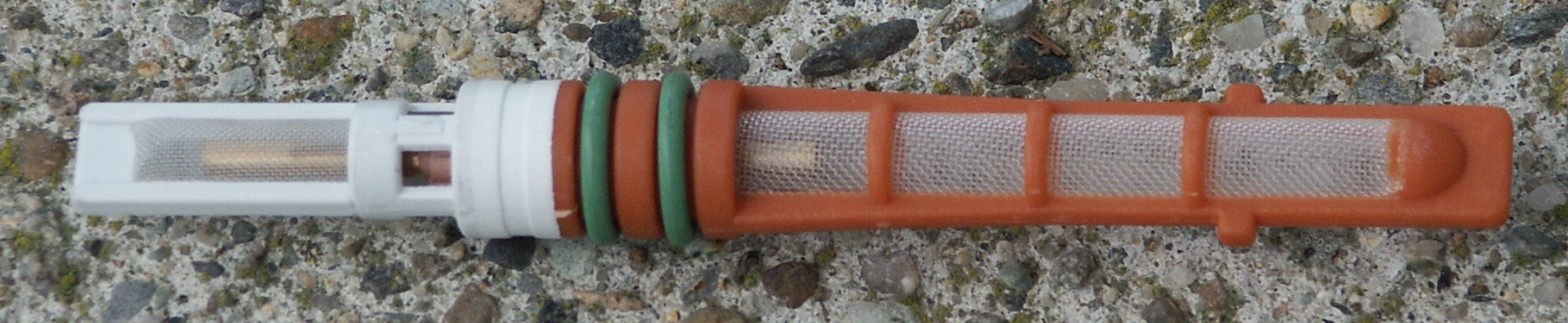

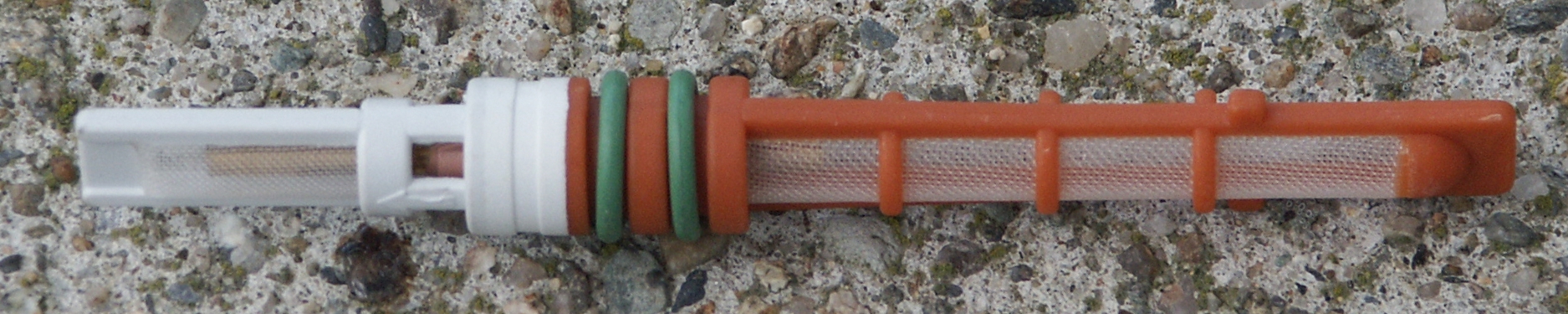

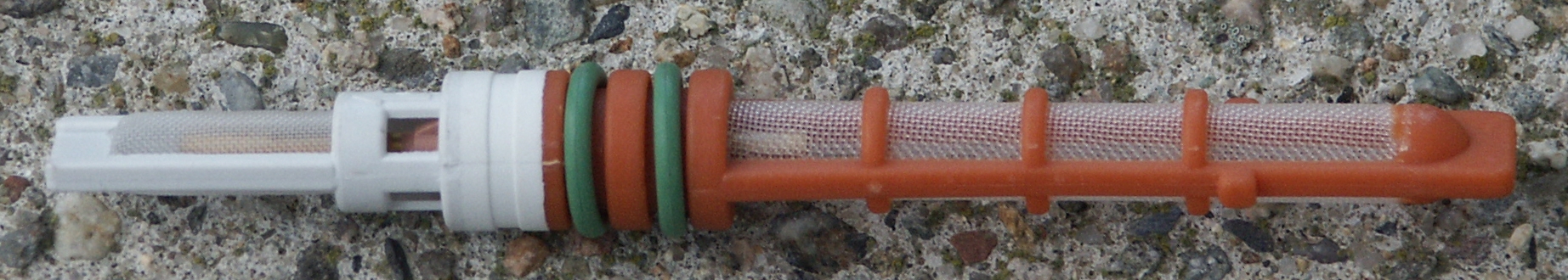

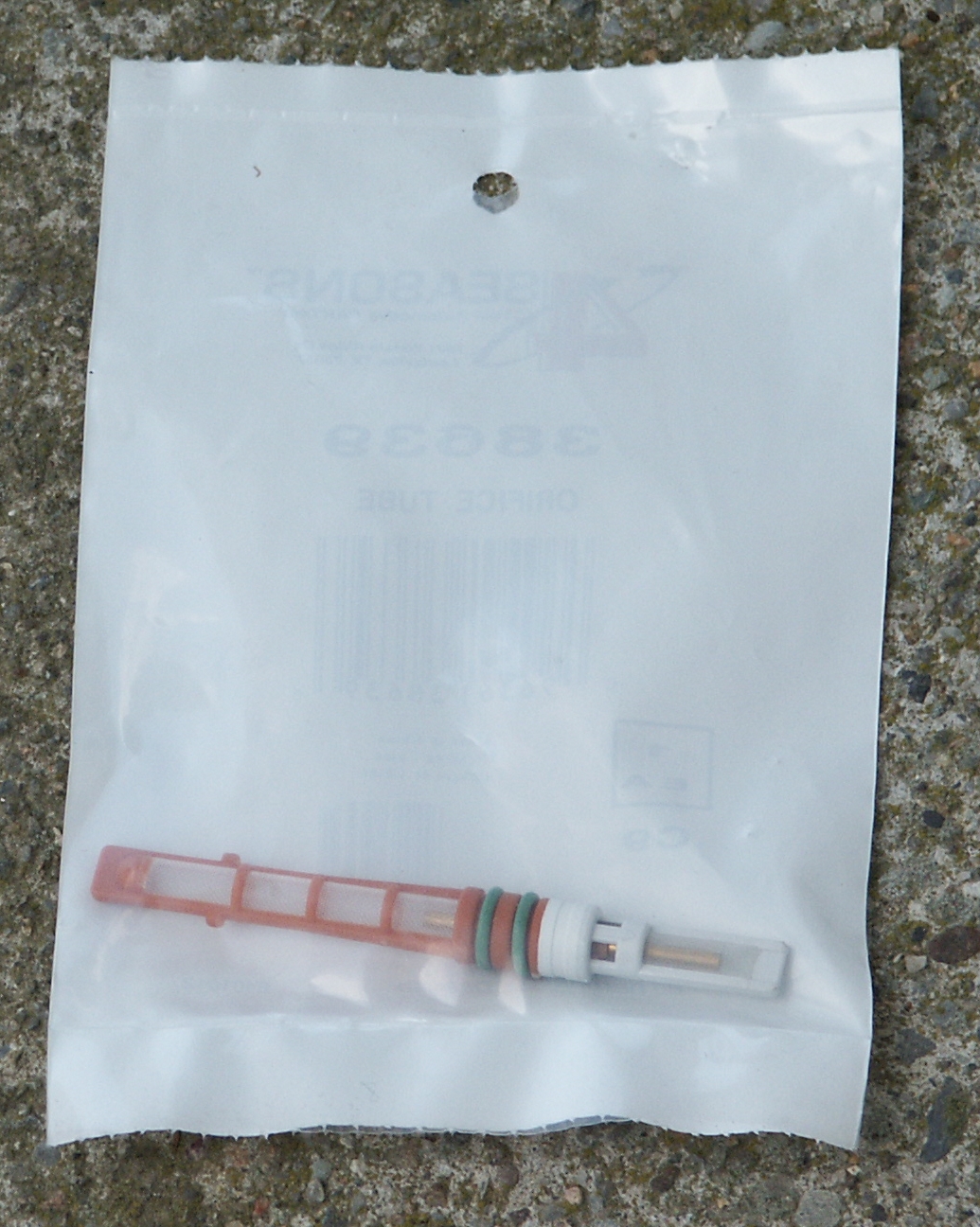

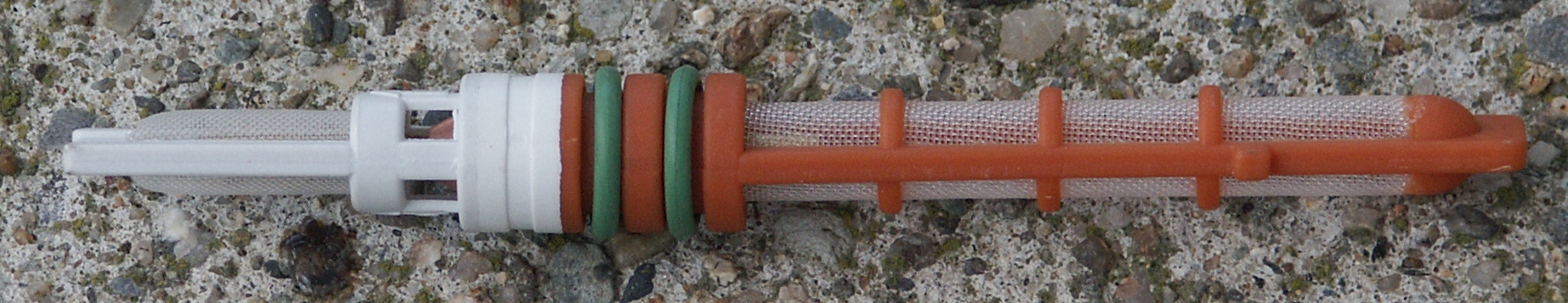

Next is a new orange orifice tube
![](PICT0192-vi.jpg)
![](PICT0193-vi.jpg)
![](PICT0196-vi.jpg)
![](PICT0199-vi.jpg)
![](PICT0203-vi.jpg)
![](PICT0206-vi.jpg)
![](PICT0209-vi.jpg)

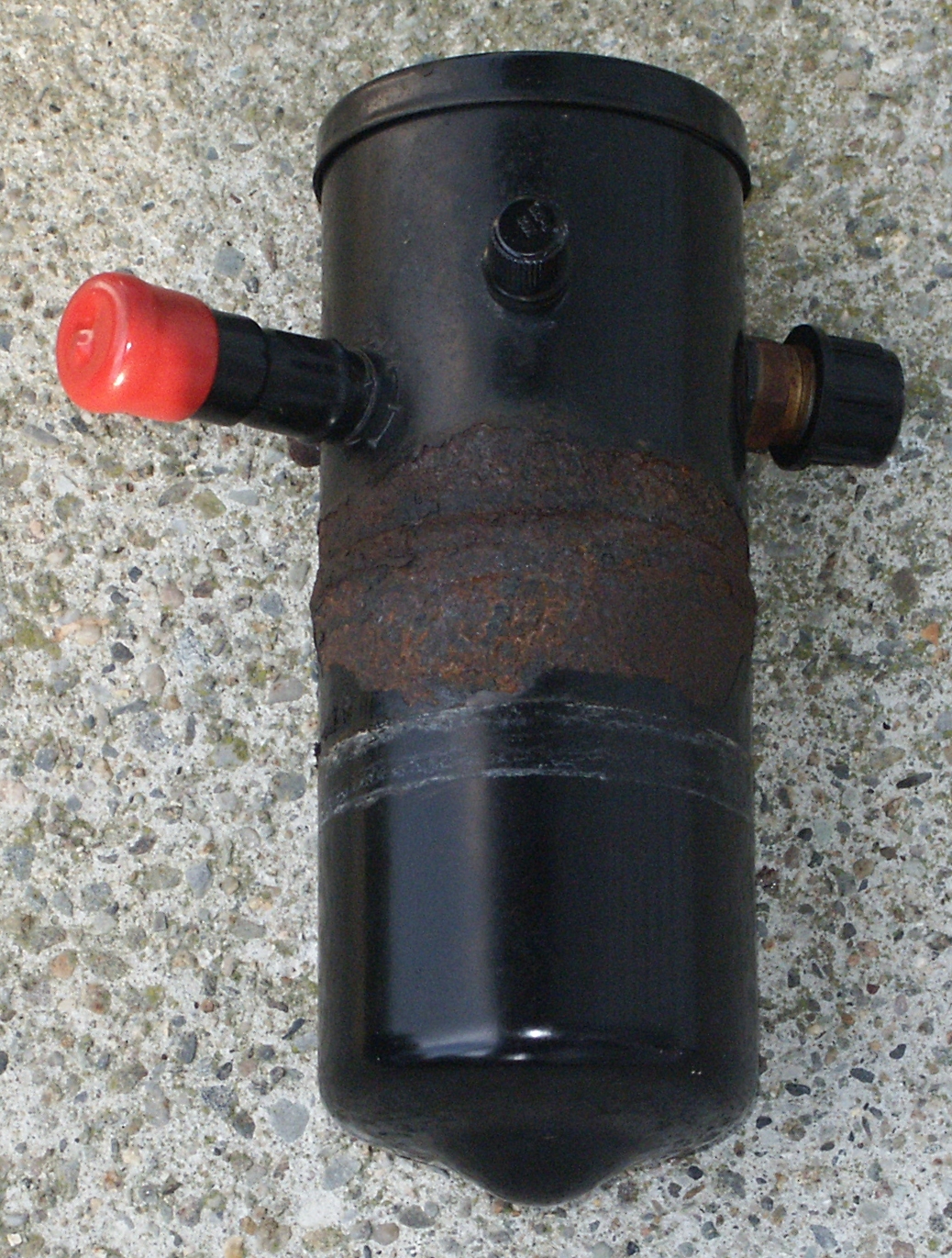

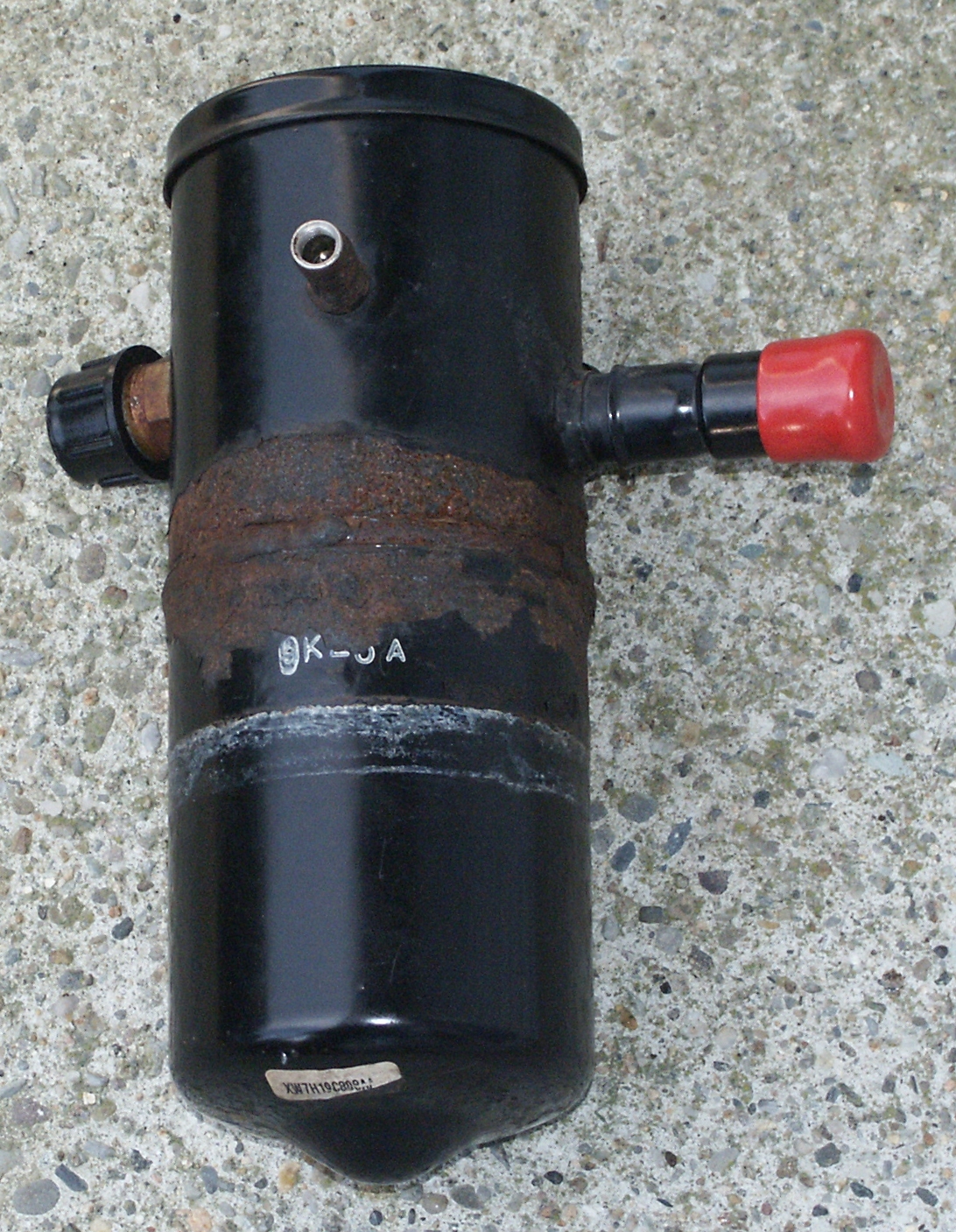

Now that the new parts have been acquired, it's time to remove the old
accumulator
![](PICT0242-vi.jpg)
![](PICT0245-vi.jpg)

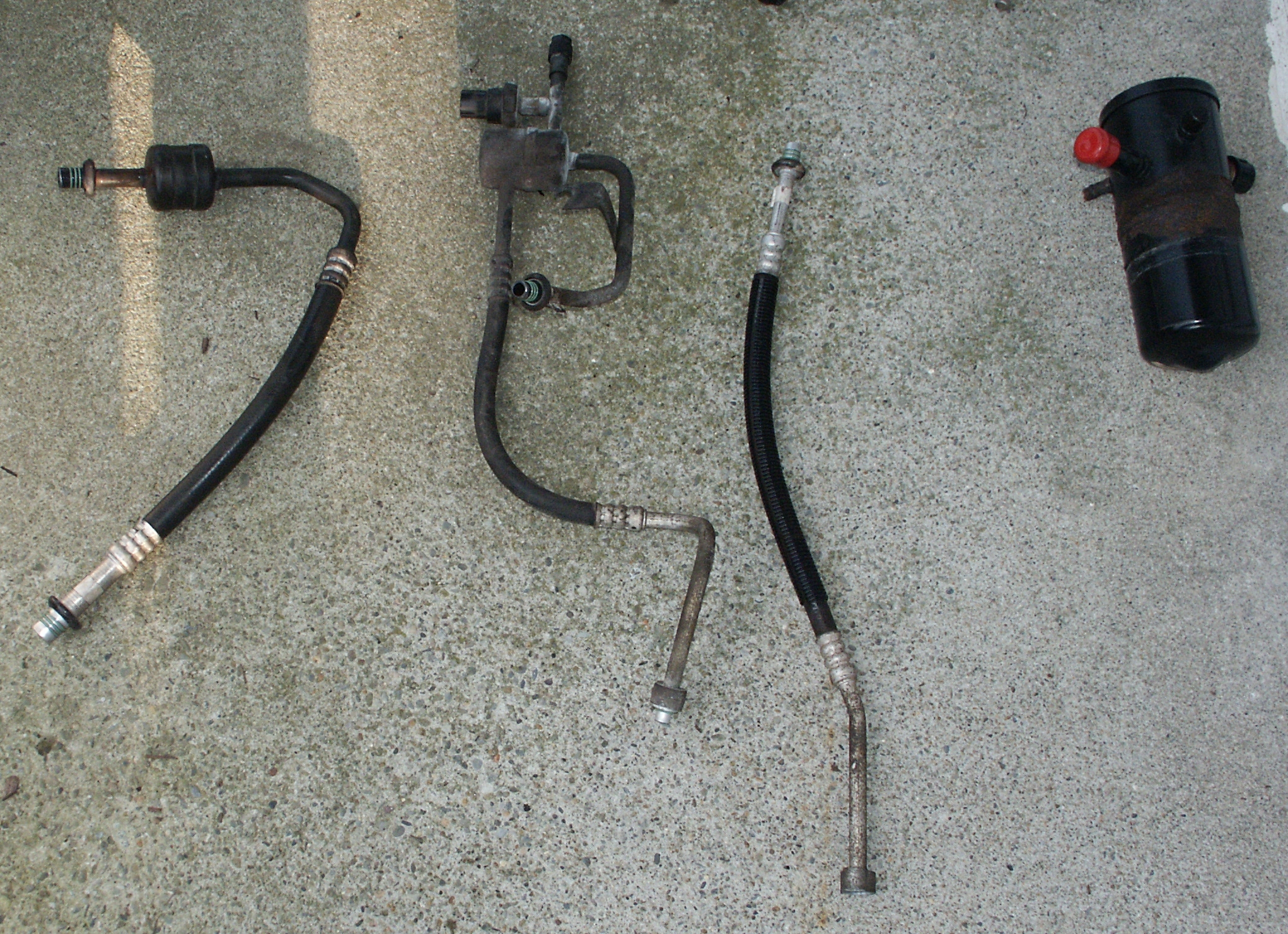

And remove all of the hoses so that new o-rings can be installed on the
springlock connections
![](PICT0246-vi.jpg)

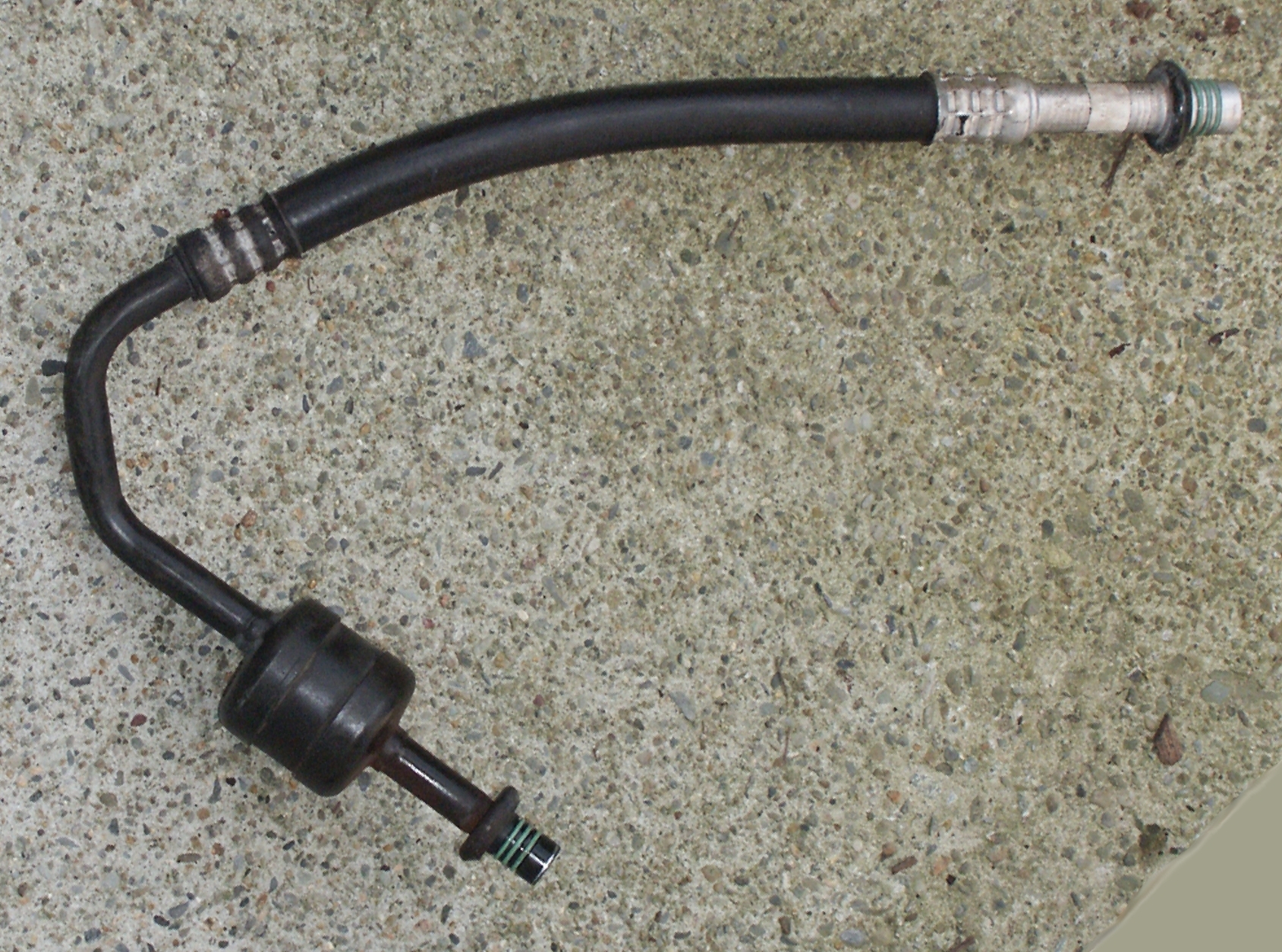

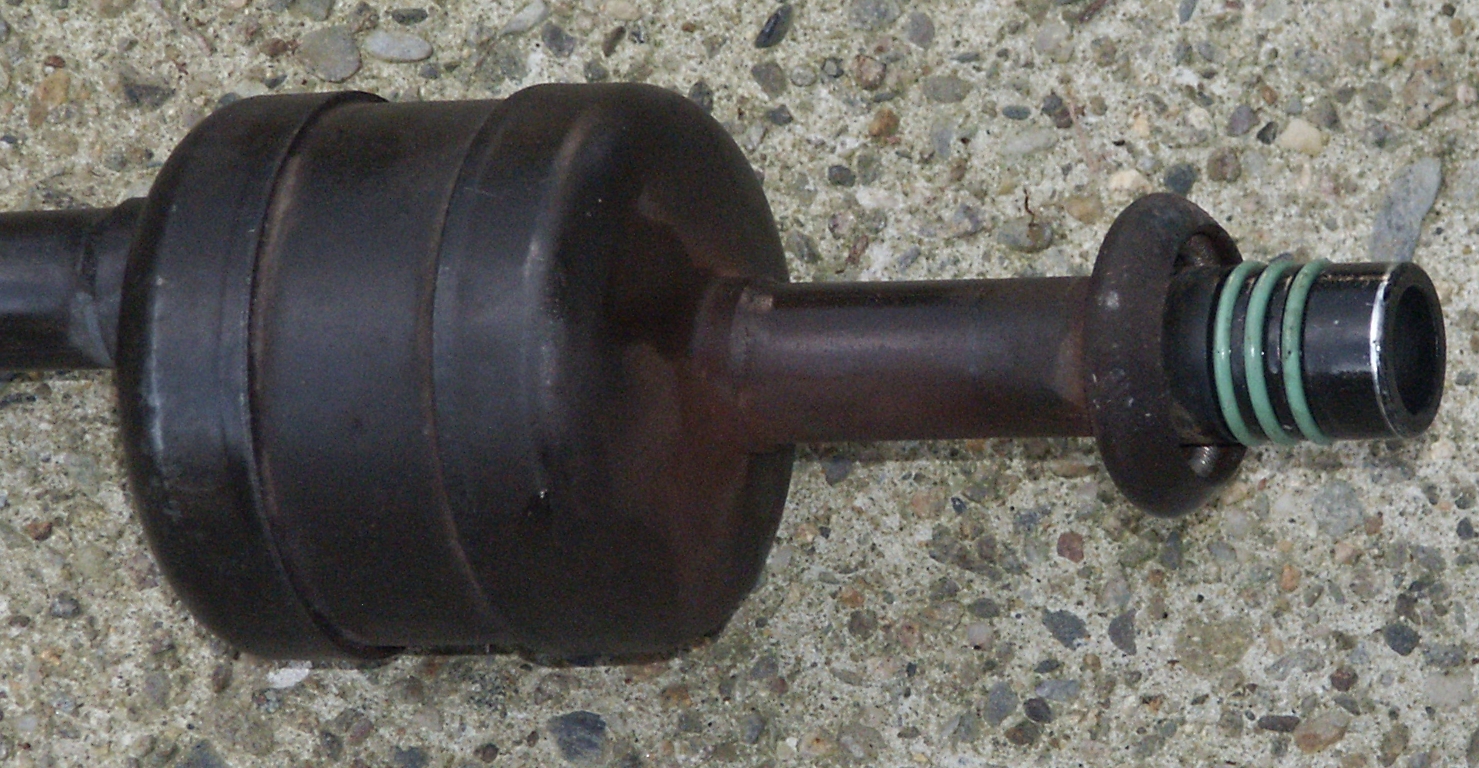

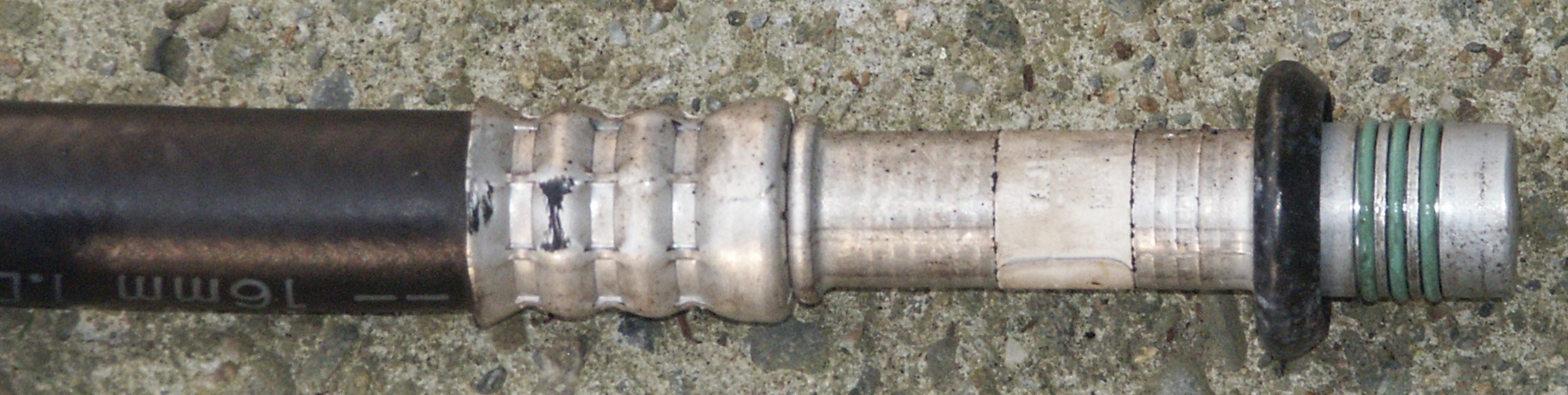

The suction hose that connects the accumulator to the compressor
manifold
![](PICT0251-vi.jpg)
![](PICT0248-vi.jpg)
![](PICT0250-vi.jpg)

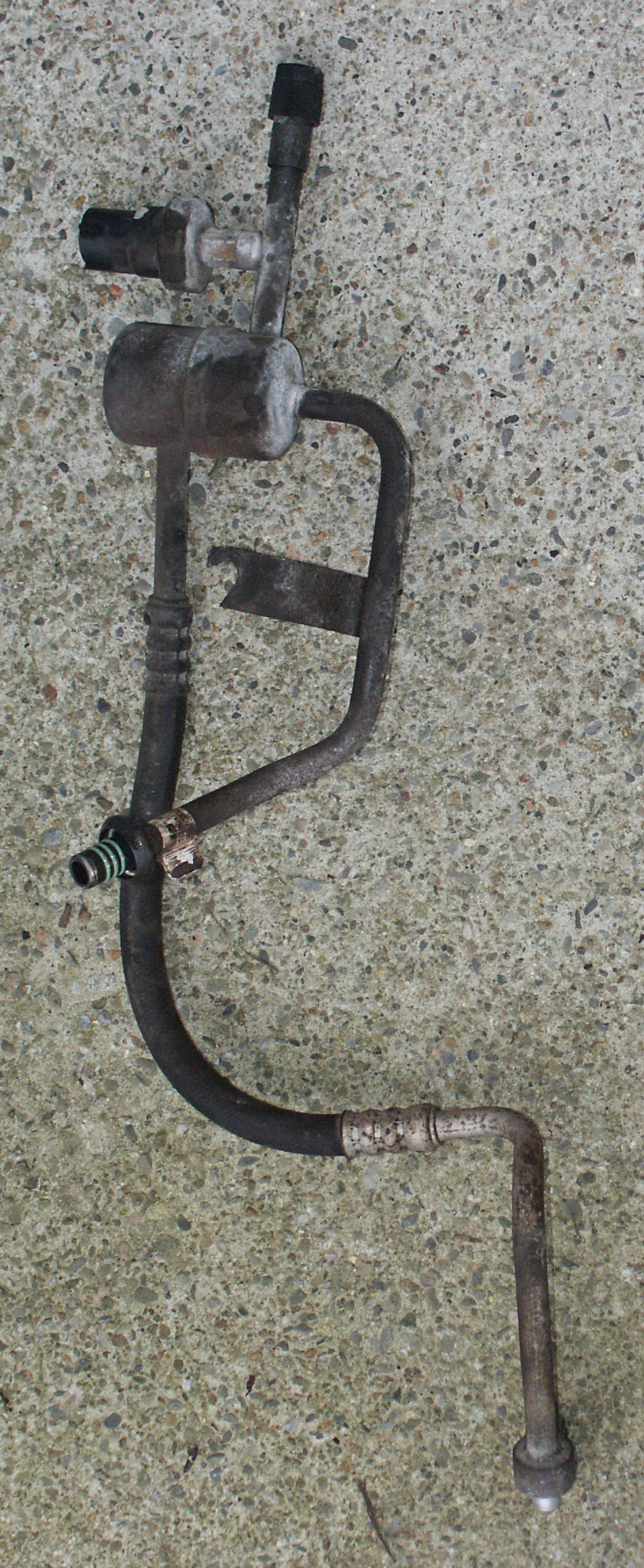

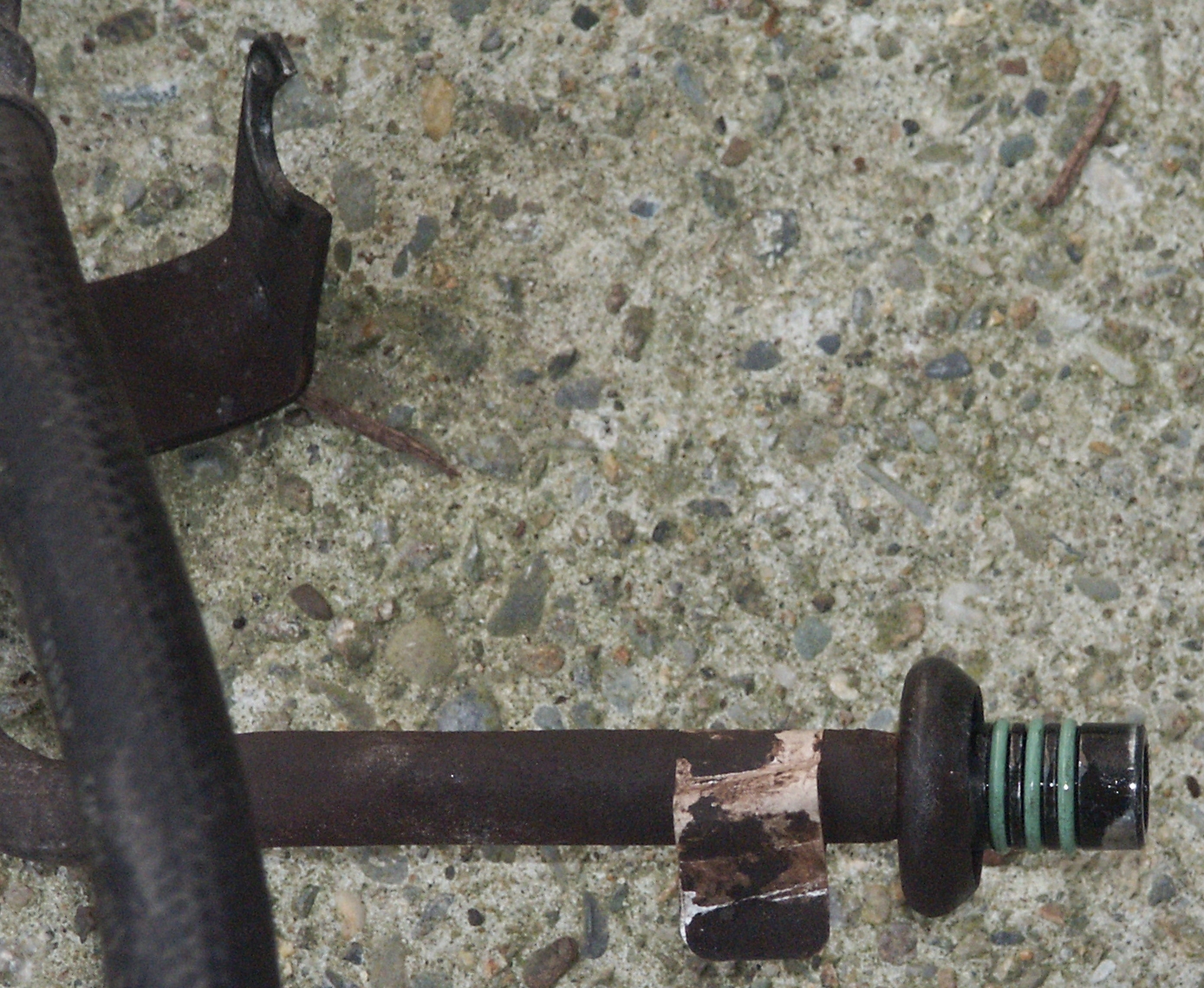

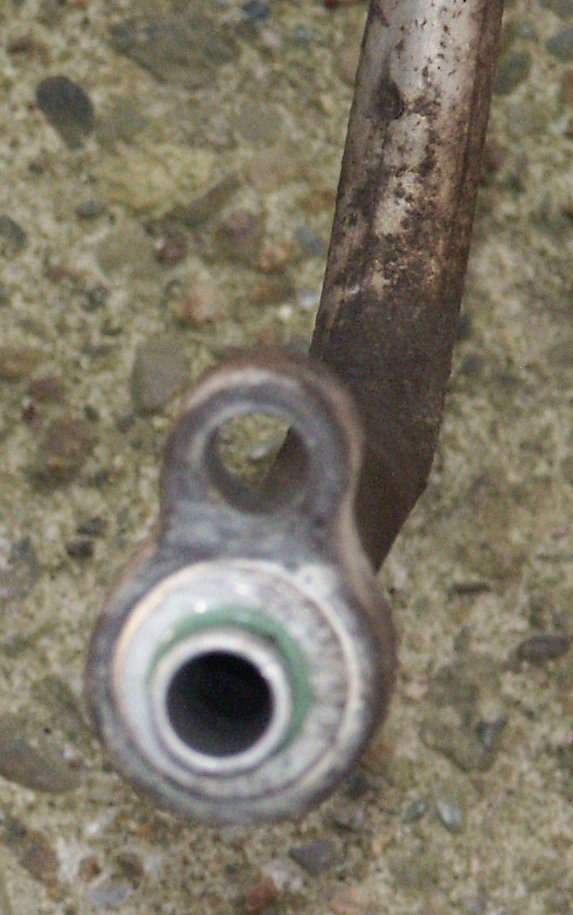

The discharge hose assembly that connects the compressor to the
condenser
![](PICT0254-vi.jpg)
![](PICT0262-vi.jpg)
![](PICT0264-vi.jpg)

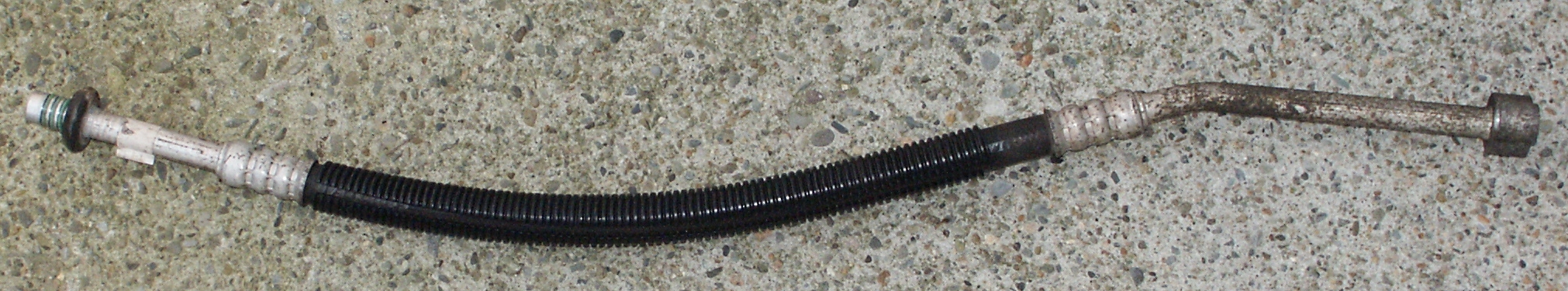

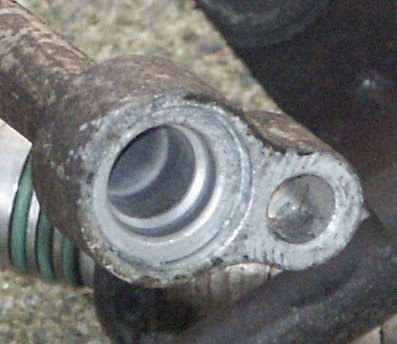

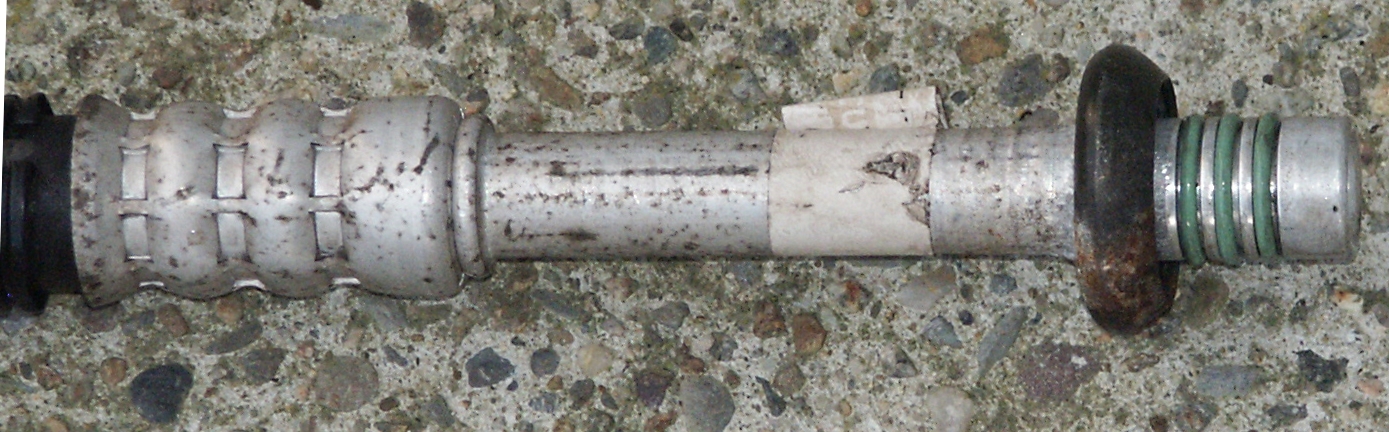

The lower liquid line that connects the condenser to the lower
evaporator tube
![](PICT0258-vi.jpg)
![](PICT0260-vi.jpg)
![](PICT0271-vi.jpg)

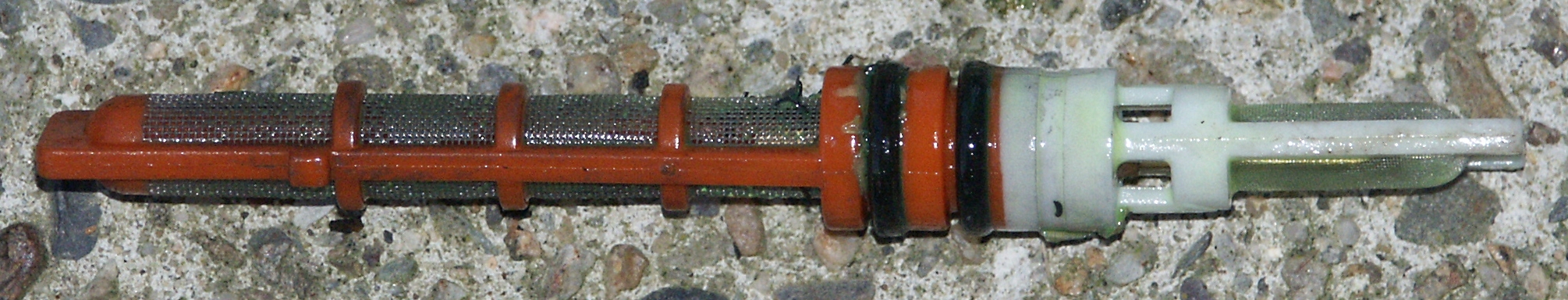

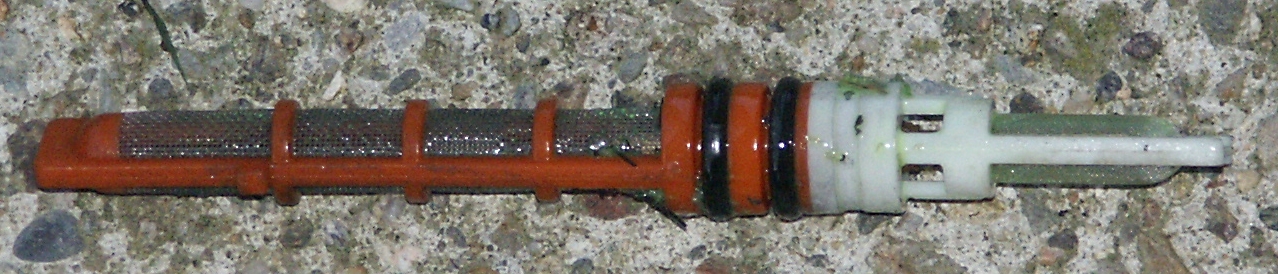

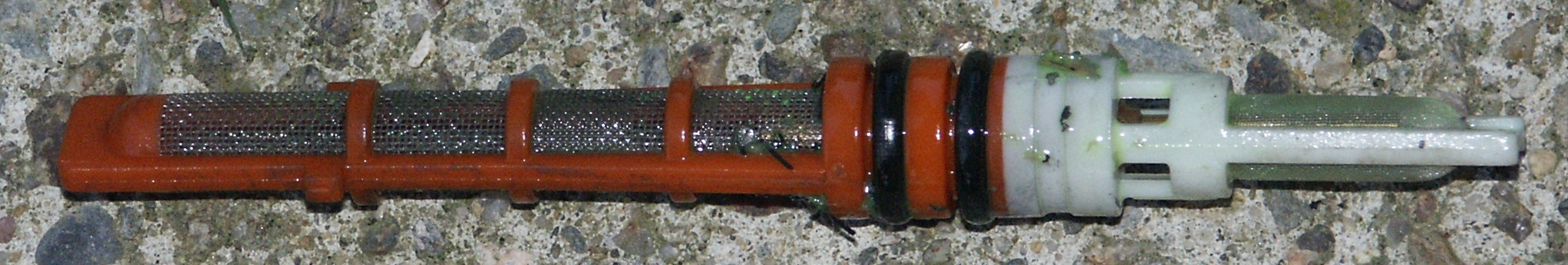

The old orifice tube
![](PICT0291-vi.jpg)
![](PICT0285-vi.jpg)
![](PICT0294-vi.jpg)

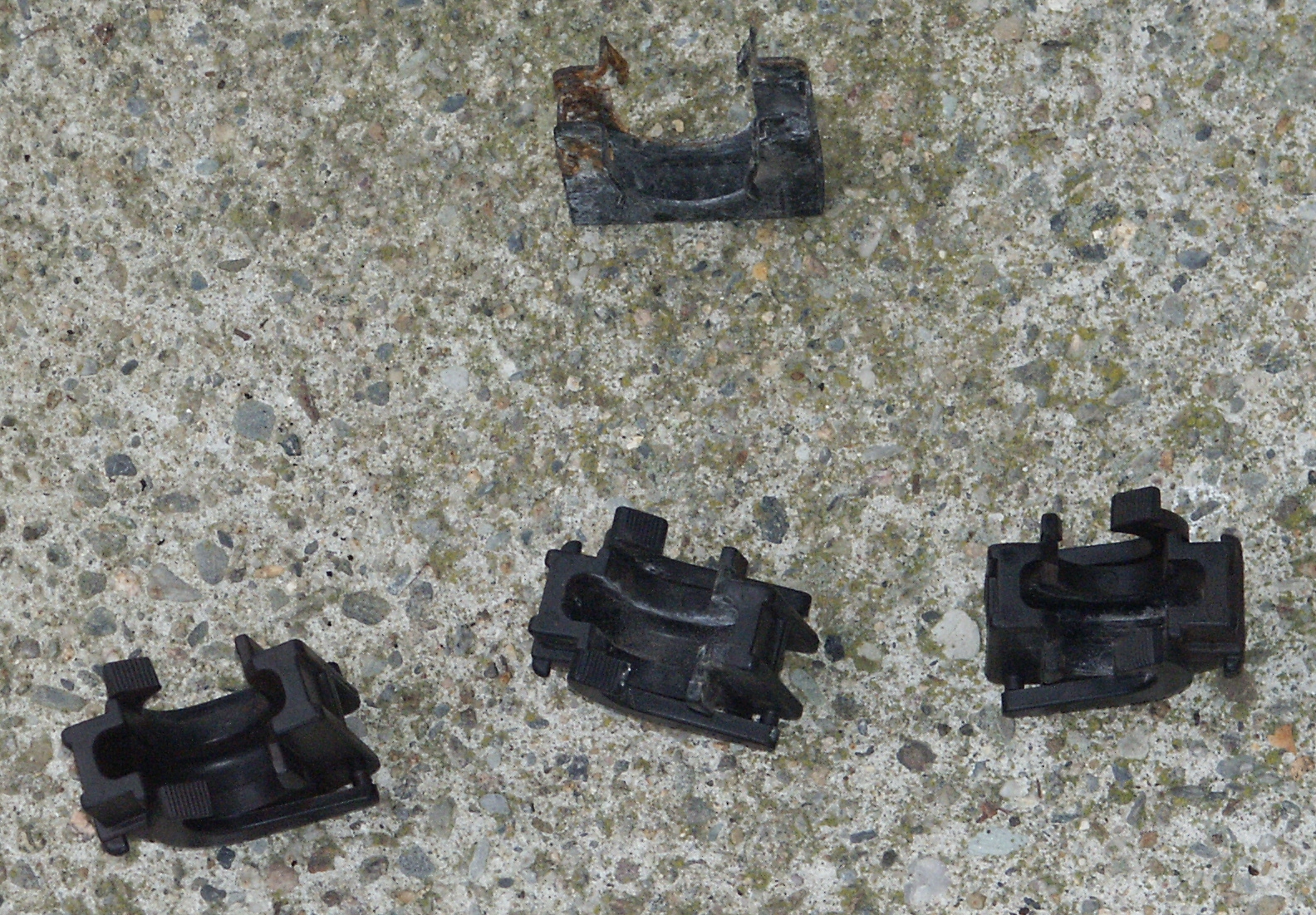

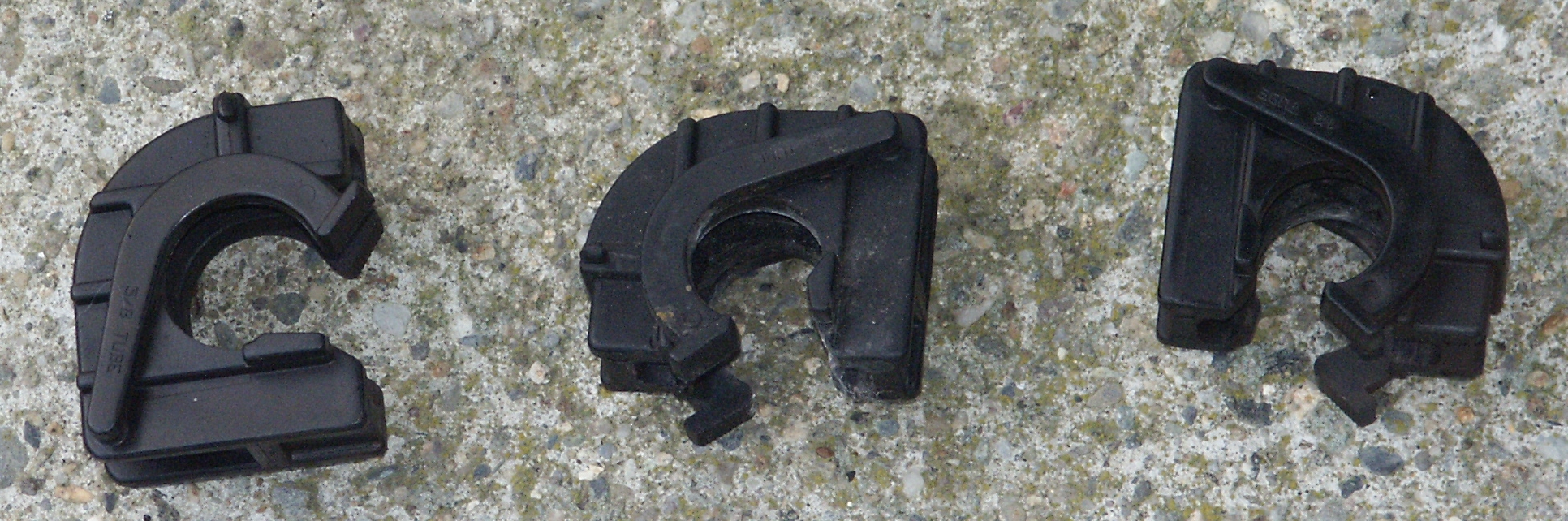

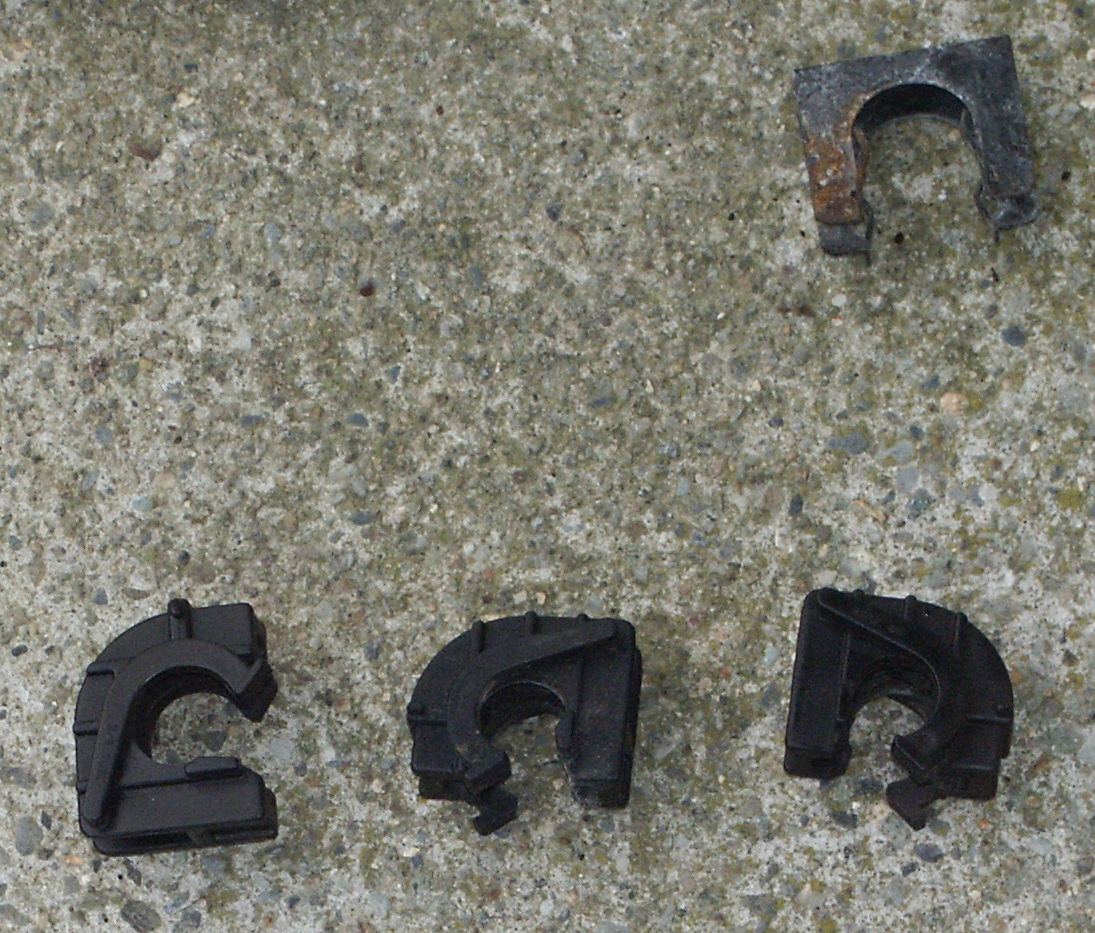

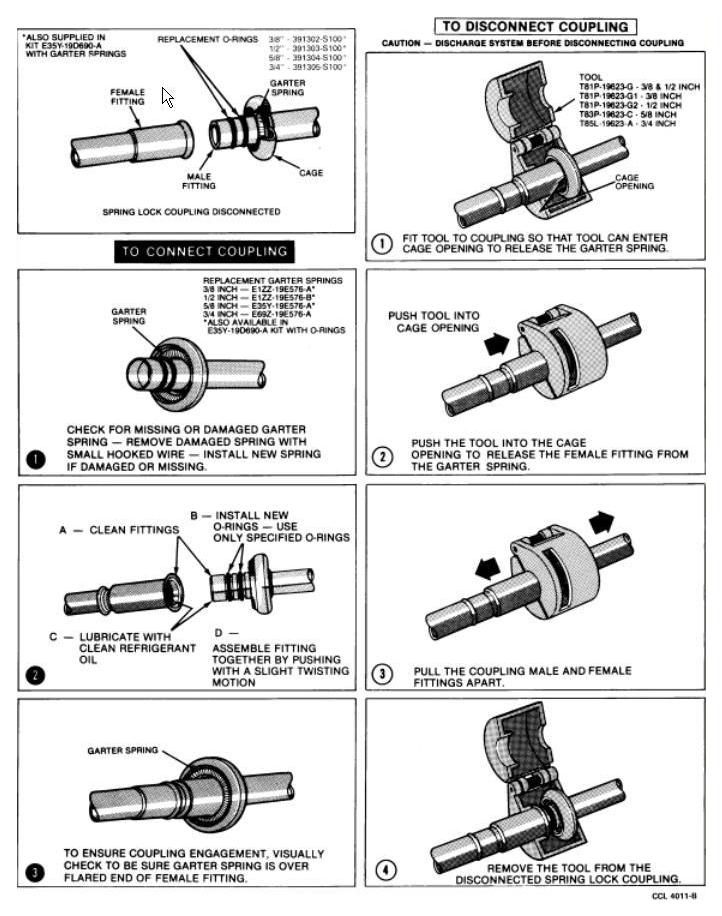

The retaining clips which limit movement of the springlock junction
when installed on the car
![](PICT0266-vi.jpg)
![](PICT0268-vi.jpg)
![](PICT0272-vi.jpg)

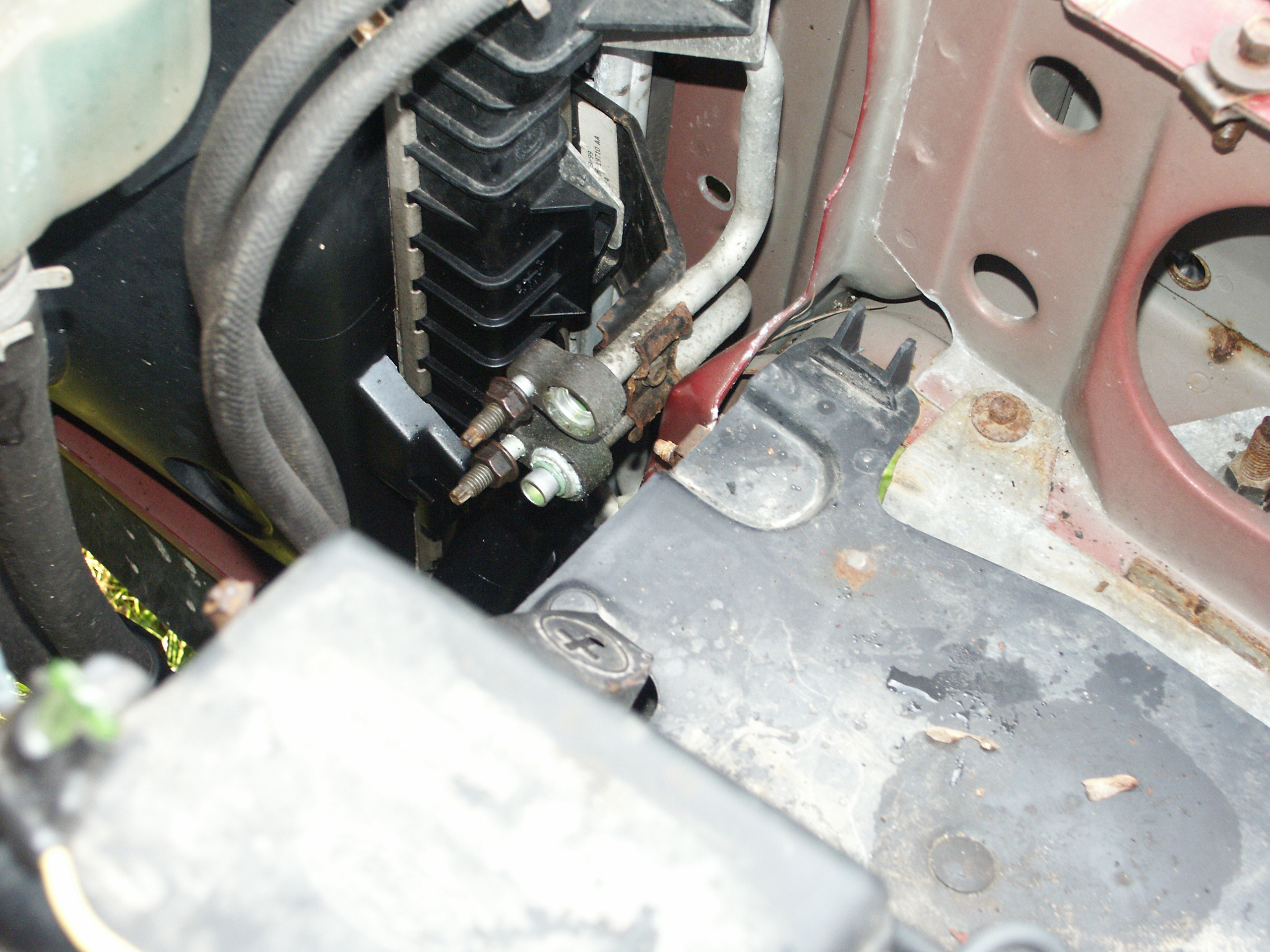

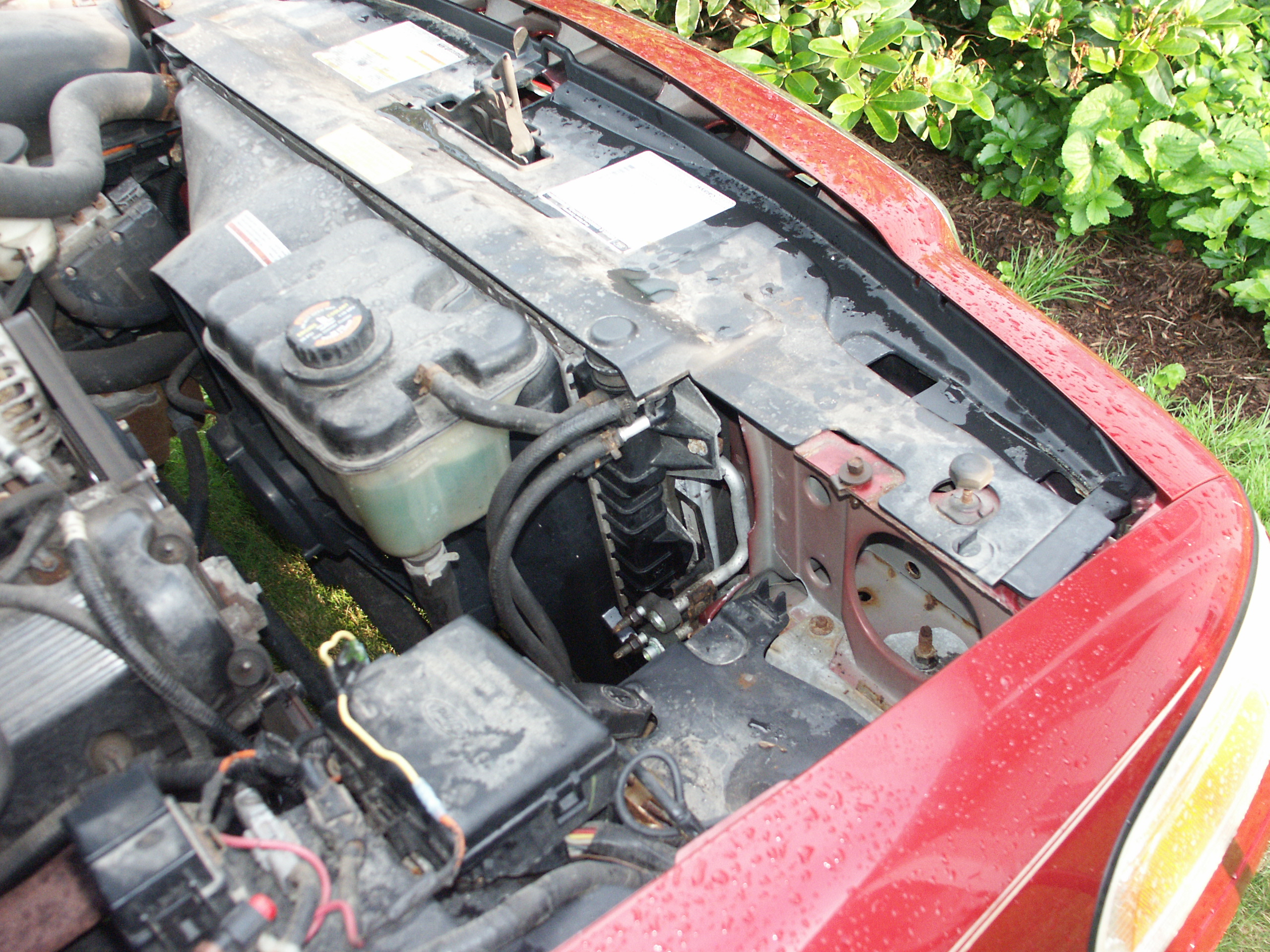

The condenser hose connection points
![](PICT0279-vi.jpg)
![](PICT0284-vi.jpg)

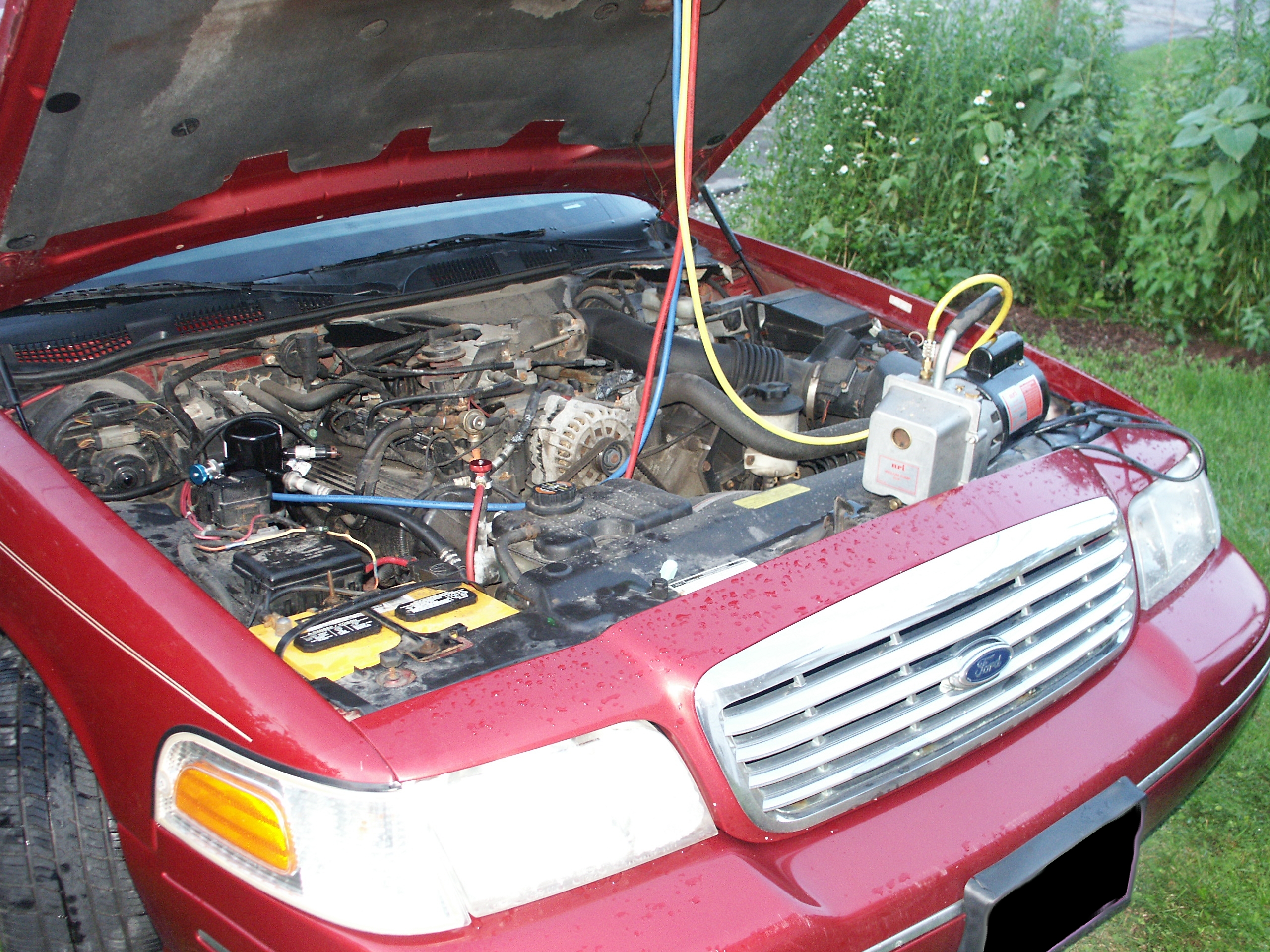

Now lets reassemble everything and vaccum the system down
![](PICT0295-vi.jpg)
![](PICT0297-vi.jpg)
![](PICT0299-vi.jpg)
![](00crownacspecs.jpg)
![](springlockdisco.jpg)
Now it's time to add some refrigerant to the
system.
