Valve Covers

Part Number
From
To
Comments
Suggested Retail
March 2009
F6AZ-6582-HA
1992
2002
LH
Driver's side oil fill
92-97 fuel lines on drivers side
92-97 fuel line connection points are located towards the rear of the drivers side fuel rail.
Supercedes:
F1AZ-6582-B
F4AZ-6582-A
F5AZ-6582-BA
$146.65
F6AZ-6582-JA
1992
2002
RH
98-02 fuel lines on passenger side
98-02 fuel line connection points are located towards the front of the passenger side fuel rail
Supercedes:
F1AZ-6582-A
$138.32





2C2Z-6582-CB
2003
2004
LH
New fitting for pcv breather connection
PCV breather still connects via rubber hose
04+ p71 has new engine air intake "Zip Tube"
Supercedes:
2C2Z-6582-BA
2C2Z-6582-CA
$128.32
2C2Z-6582-EA
2003
2004
RH
New Very Large Diameter PCV Valve Fitting
PCV valve still connects via plastic hose with rubber ends
Passenger side oil fill
Fuel lines remain on passenger side
One fuel line deleted. Fuel supply system is now returnless.
Fuel supply line connection point is in the middle of the passenger side fuel rail
04+ New engine air intake "Zip Tube"
Supercedes:
2C2Z-6582-AA
$139.98





4L2Z-6582-AA
2005
2006
LH
New Cam-lock PCV breather fitting
Heated PCV Valve System
Crown vics are now "drive-by-wire"
No mechanical accelerator cable
No mechanical cruise control throttle acuatator cable
$104.98
4L2Z-6582-CA
2005
2006
RH
New Cam-lock PCV Valve Fitting
Heated PCV Valve System
$79.98





7W7Z-6582-AA
2007
2009
LH
Cam-lock PCV breather fitting
Cover is now smooth. No raised textured portion on the top of the valve cover like in prior years.
$106.65
7W7Z-6582-B
2007
2009
RH
Cam-lock PCV Valve Fitting
Cover is now smooth. No raised textured portion on the top of the valve cover like in prior years.
PCV valve relocated towards the front of the car on the valve cover
Round cylinder shape added to top of valve cover for the pcv valve to mount in
Supercedes:
7W7Z-6582-A
7W7Z-6582-BA
$120.62

Notes:

Valve Cover->Cylinder Head Gaskets

Part Number
From
To
Comments
Suggested Retail
March 2009
F6AZ-6584-BA
1992
2002
LH
Supercedes: F1AZ-6584-B
$21.52
F6AZ-6584-AA
1992
2002
RH
Supercedes: F1AZ-6584-A
$19.98

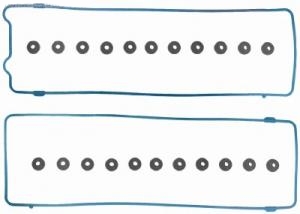

Aftermarket Fel-Pro
VS-50377R

1992
2002
LH & RH
PermaDry molded rubber gaskets
includes valve cover grommets

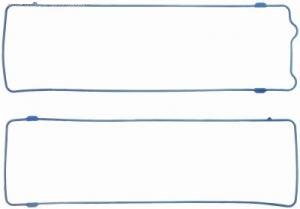

Aftermarket Fel-Pro
VS-50377R1

1992
2002
LH & RH
PermaDry molded rubber gaskets
does not include valve cover grommets






2C2Z-6584-BA
2003
2006
LH
$19.98
2C2Z-6584-AA
2003
2006
RH
$19.98

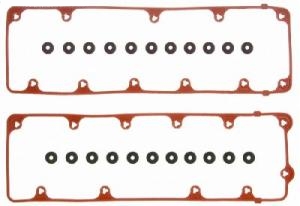

Aftermarket Fel-Pro
VS-50564R

2003
2006
LH & RH
PermaDry molded rubber gaskets






4L2Z-6584-AA
2007
2009
LH
$26.14
4L2Z-6584-BA
2007
2009
RH
$29.22



Valve Cover PCV Valve Grommets

Part Number
From
To
Comments
Suggested Retail
March 2009
F6AZ-6A892-BA
1992
2002
PCV Valve Grommet
Supercedes F1AZ-6A892-A
$8.32

Valve Cover Bolt Grommets

Part Number
From
To
Comments
Suggested Retail
March 2009
F1AZ-6C518-A
1992
2002
11 Per Valve Cover
22 Per Car
$6.83
2C2Z-6C518-AA
2003
2009

$6.65

Oil Fill Caps

Part Number
From
To
Comments
Suggested Retail
March 2009
F3AZ-6766-B
EC-743
1992
2000
Oil Fill Cap
$8.62
1L3Z-6766-AA
EC-755
2001
2002
Oil Fill Cap
$12.06
1F1Z-6766-AA
EC-756

2003
2008
Oil Fill Cap

$12.06
8F1Z-6766-A
EC-777
2009
2009
Oil Fill Cap $12.08

PCV Valves

Part Number
From
To
Comments
Suggested Retail
March 2009
D9ZZ-6A666-A
EV-98B
1992
2002
PCV Valve
$8.93
2L3Z-6A666-AA
EV-258
2003
2004
PCV Valve
$16.09
5L3Z-6A666-BA
EV-273
2005
??2006??
Heated PCV Valve
$60.82
7L3Z-6A666-A
EV-281
??2007??
2008
Less electric heated PCV Valve
$8.91
6W7Z-6A666-AA
EV-279
??2006??
??2007??
2008
With electric heated PCV Valve
$32.30





2X4Z-6A666-AA
EV-257
2003
2004
Mercury Marauder DOHC PCV Valve

$12.51

Notes:
Air Intake Plenum->PCV Valve Hose Assembly

Part Number
From
To
Comments
Suggested Retail
F1AZ-6C324-A
1992
1994

$29.98
F5AZ-6C324-A
1995
1995

$21.65
F6AZ-6C324-AA
1996
1997
Includes PCV Valve
Supercedes: F6AZ-6C324-AB
$23.62
F8AZ-6C324-BA
1998
2002

$18.32
3W7Z-6853-A 2003
2004
plastic hose, rubber fittings on each end
Supercedes: 3W7Z-6853-AA
$33.60
5W7Z-6A664-AA
KCV-162
2005
2006
cam-lock fittings on each end
$30.67
7W7Z-6A664-AA
KCV-207
2007
2009
cam-lock fittings on each end
pcv valve relocated towards the front of the car on the valve cover
$23.00

Generic rubber vacuum hose can be substituted for the pcv valve line assembly, but it will have a rather short life with heated oil gases flowing through it. The factory OE setup has a very short length of rubber tube at each end with a molded plastic tube in between.

PCV Breather Hose (Air Intake Zip Tube->Driver's Side Valve Cover Fitting)

Part Number
From
To
Comments
Suggested Retail
F6VZ-6853-AB
1996
1997

Obsolete
F8VZ-6853-AA 1998
2002

$15.13
3W7Z-6758-A
2003
2005
04-05 Zip Tube has 2 Air Ports
plastic hose. rubber fittings on each end.
Supercedes: 3W7Z-6758-AA
$21.65
5W7Z-6758-BA
2006
2009
06+ Zip Tube has 1 Air Port
cam-lock fittings on each end
Supercedes: 5W7Z-6758-CA
$26.65

6758
9B659
9F805

Driver's Side Valve Cover Breather Fitting

Part Number
From
To
Comments
Suggested Retail
2W7Z-6762-AA


Elbow - 5/8 x 90 $10.00
4L2Z-6762-AA
2005

Elbow - Crankcase Vent Tube
$14.98

Zip Tube (Air Cleaner Box->Throttle Body Rubber Air Intake Hose)

Part Number
From
To
Comments
Suggested Retail
4W7Z-9B659-AA
2003
2004
Supercedes: 3W7Z-9B659-BA
$56.18
5W7Z-9B659-AA


Police
with Internal Hydrocarbon Filter
2 air ports
Electronic Throttle Control (Drive-By-Wire)
No Idle Air Control Valve
$193.98
(limited availability)
5W7Z-9B659-BF


Police
without Internal Hydrocarbon Filter
1 air port
Electronic Throttle Control (Drive-By-Wire)
No Idle Air Control Valve
$88.67
5W1Z-9B659-BE

Civilian
with two large resonator cavities
less of a bend into the throttle body
Electronic Throttle Control (Drive-By-Wire)
No Idle Air Control Valve
$92.47

Throttle Body->Intake Manifold Spacer Plenum

Part Number
From
To
Comments
Suggested Retail
F6AZ-9A589-CH
CM-5028
1996
2002
Plastic Intake Manifold Introduced
Supercedes:
F6AZ-9A589-BD
$87.94
3W7Z-9A589-CA
CM-5042
2003
2004
PCV Vacuum Feed Port Diameter Enlarged
one vacuum port relocated
??one vacuum line deleted??
Supercedes:
3W7Z-9A589-AA
$109.04
5W7Z-9A589-AA
CM-5095
2005
2009
Cam-lock fitting setup for pcv hose connection
Electronic Throttle Control (Drive-By-Wire)
No Idle Air Control Valve
On early revisions, IAC mounting point still cast into plenum, but air flow hole not cut out
On later plenums, IAC mounting point completely eliminated
$59.78



United States Patent 6390080 - Intake manifold with a heated PCV passage
In very cold climate conditions, there can be a freeze up in the connection of the PCV hose with the intake manifold. To alleviate possible conditions of freeze up, some PCV systems have a fitting that is heated by engine coolant at the point of intersection between the PCV hose and the manifold.


PCV System Monitor - 2003 MY OBD System Operation Summary for Gasoline Engines
Ford plans to comply with the PCV monitoring requirements by modifying the current PCV system design. The PCV valve will be installed into the rocker cover using a quarter-turn cam-lock design to prevent accidental disconnection. High retention force molded plastic lines will be used from the PCV valve to the intake manifold. The diameter of the lines and the intake manifold entry fitting will be increased so that inadvertent disconnection of the lines after a vehicle is serviced will cause either an immediate engine stall or will not allow the engine to be restarted. Some vehicles will incorporate such designs beginning in the 2001 MY. In the event that the vehicle does not stall if the line between the intake manifold and PCV valve is inadvertently disconnected, the vehicle will have a large vacuum leak that will cause the vehicle to run lean at idle. This will illuminate the MIL after two consecutive driving cycles and will store one or more of the following codes: Lack of O2 sensor switches, Bank1 (P1131 or P2195), Lack of O2 sensor switches Bank 2 (P1151 or P2197), Fuel System Lean, Bank1 (P0171), Fuel System Lean, Bank 2 (P0174)
