Ford Crown Victoria Alternators:

From
To
Comments
Lester KwikFinder Catalog #
Ford Part Numbers
1992
1994
95 Amp
3G "Small Case"
Closed lower mounting ears
7 Groove Pulley (Early 1992 only)
6 Groove Pulley (Late 1992 and After)
Conventional i-line controlled voltage regulator
Early Output Stud
7753
F1VU-10300-BB
F1VU-10300-BC
F1VU-10346-AD
F1VY-10346-A
F1VY-10346-B
F1VY-10346-BRM
GL-312RM
F1VY-10346-BRM1
GL-472RM
1992
1995
130 Amp
3G "Large Case"
Closed lower mounting ears
6 groove pulley
Conventional i-line controlled voltage regulator
Early Output Stud
7764
F3AU-10300-AC
F3AZ-10346-A
GL-317
F3AZ-10346-ARM
GL-317RM
F3AZ-10346-ARM1
GL-475RM
F3AZ-10346-ARM2
GL-476RM

1993
1995
Police Option
130 Amp
3G "Large Case"
Closed lower mounting ears
6 groove pulley
Unique rectangular regulator plug
Conventional i-line controlled voltage regulator
Early Output Stud
7784
F3AU-10300-CA
F5AU-10300-AA
F3AZ-10346-A
GL-317
F3AZ-10346-ARM
GL-317RM
F3AZ-10346-ARM1
GL-475RM
F3AZ-10346-ARM2
GL-476RM
1995
2000
Compressed Natural Gas (CNG)
4G
Open lower mounting ears
6 groove pulley
Conventional i-line controlled voltage regulator
7781
F6LU-10300-CA
F6LU-10300-CB
F6LU-10300-CC
F6LU-10300-CD
F6ZU-10300-BB
F6ZU-10300-BC
F6ZU-10300-BE
F6ZU-10300-BG
F6LY-10346-A
GL-357
F6LY-10346-ARM
GL-357RM
F6LY-10V346-ARM
GLV-8357RM
F6ZZ-10346-B
GL-356
F6ZZ-10346-BRM
GL-356RM
F6ZZ-10V346-BRM
GLV8-356RM
1996
1997
Police & Civilian
130 Amp
3G "Large Case"
Closed lower mounting ears
6 Groove Pulley
New Output Battery Post
Conventional i-line controlled voltage regulator
7776
F6AU-10300-AA
F6AU-10300-AB
F6PU-10300-BA
F6PU-10346-BA
F6PU-10346-EB
F6PZ-10346-B
F6PZ-10346-BRM
GL-351RM
F6PZ-10346-EA
F6PZ-10346-EARM
GL-373RM
F6ZZ-10344-A2A
GP-717
F6PZ-10346-EARM1
GL-485RM
F6ZU-10300-AA
F6ZU-10300-AB
F6ZU-10300-AC
F7AZ-10346-AA
F7AZ-10346-AARM
GL-432RM
1998
2002
Police
130 Amp
6G
Open lower mounting ears
6 Groove Pulley
New Output Battery Post
Conventional i-line controlled voltage regulator
In 2000, the alternator pulley diameter was increased and the engine idle speed raised
7795
F8AU-10300-AB
F8AU-10300-AC
F8AU-10300-AD
F8AZ-10346-AB
GL-407
F8AZ-10346-ABRM
GL-407RM
F8AZ-10V346-ABRM
GLV8-407RM
1998
1998
Civilian
130 Amp
6G
Open lower mounting ears
6 Groove Pulley
New Output Battery Post
Conventional i-line controlled voltage regulator
1998 civilian crownvics had the same alternator as 1998 police cruisers
7795
F8AU-10300-AB
F8AU-10300-AC
F8AU-10300-AD
F8AZ-10346-AB
GL-407
F8AZ-10346-ABRM
GL-407RM
F8AZ-10V346-ABRM
GLV8-407RM
1999
2002
Civilian
110 Amp
4G
Open lower mounting ears
6 Groove Pulley
New Output Battery Post
99-00 different pulley than 01-02
Conventional i-line controlled voltage regulator
1999 crownvics manufactured before 12/20/98 used a 6G alternator instead of the 4G one
7773
XW7U-10300-AA
XW7U-10300-AC
XW7U-10300-AD
XW7Z-10346-AA
GL-434
XW7Z-10346-AARM
GL-434RM
XW7Z-10V346-AARM
GLV8-434RM
2003
2003
Police
130 Amp
6G
Open lower mounting ears
6 Groove Pulley
New Output Battery Post
New PCM controlled voltage regulator
Also used in towncar limo 03-05
8315
3W1U-10300-BB
3W1Z-10346-BA
GL-534
3W1Z-10346-BARM
GL-534RM
3W1Z-10346-CA
GL-637
5W1Z-10346-AA
GL-617
6W1Z-10346-AA
GL-661

2003
2004
Civilian
110 Amp
4G
Open lower mounting ears
6 Groove Pulley
New Output Battery Post
New PCM controlled voltage regulator
8313
3W1U-10300-AA
3W1U-10300-AB
3W1Z-10346-AA
GL-526
3W1Z-10346-AARM
GL-526RM
3W1Z-10346-AARM2
GL-943RM
2003
2004
Mercury Marauder
4G
Open lower mounting ears
New Output Battery Post
New PCM controlled voltage regulator
Clutched Pulley
8314
3W3U-10300-AA
3W3Z-10346-AARM
GL-547RM
3W3Z-10V346-AARM
GLV8-547RM
3W3Z-10346-AA
GL-547
2004
2010
Police
Manufactured by Mitsubishi
190 Amp/200 Amp
Open lower mouning ears
6 Groove Pulley
One way clutch in pulley
New PCM Controlled Voltage Regulator

Uses ford 6G regulator connector
4.6L "Saddle Mount"
Uses 6G upper mounting bracket
No internal parts shared with any other ford alternators
11026
4W73-10300-AA
4W73-10300-AC
4W7Z-10346-AA
GL-577
4W7Z-10346-AB
4W7Z-10346-AC
GL-598
6W7T-10300-AB
6W7Z-10346-AA
GL-671
7W7T-10300-AA

2005
2008
Civilian
135 Amp
6G
Open lower mounting ears
6 Groove Pulley
New Output Battery Post
New PCM controlled voltage regulator
The alternator first introduced in 2003 police cruisers is now standard in civilian crown vics
However, a larger diameter pulley is installed on this model to lower accessory belt noise
Some parts catalogs also list this alternator as being different than the 2003 cvpi one because of a chip inside the voltage regulator that's supplied by a different vendor
8472
5W1T-10300-AB
5W1Z-10346-AA
GL-617
6W1Z-10346-AA
GL-661


2009
2010
Civilian
Manufactured by Nippondenso
PCM Controlled
SC2

Uses ford 6g voltage regulator connector
4.6L "Saddle Mount"
Uses 6G upper mounting bracket
No internal parts shared with any other ford alternators

9W7Z-10346-A
GL-958
9W7T-10300-AA
BC2T-10300-BA

AW7Z-10346-A
GL-964
AW7T-10300-AA

Clicking on any of the numbers in the Lester KwikFinder table column will show pictures of the alternator model in question

Notes:
Direct-fit alternators with clutched pulleys:

Originally Intended For
Type
Will Fit In
Comments
Lester Part #
Ford Part Numbers
2003 - 2004 Mustang Mach I
4G
1999-2002 Civilian Crown Victoria
1999-2002 Grand Marquis
Clutched Alternator Pulley
Conventional "I" line controlled voltage sense regulator

Note: 2003 - 2004 Mustang Cobra has supercharger pulley where alternator is located on crown vic. Alternator in  03-04 cobra located down low on driver's side of engine.
8436
3R3U-10300-AA
3R3Z-10346-AA
GL-580
3R3Z-10346-AB
GL-589
3R3Z-10346-AARM
GL-582
3R3Z-10346-ABRM
GL-589RM
2003-2004 Mercury Marauder
4G
2003-2004 Civilian Crown Victoria
2003-2004 Grand Marquis
Clutched Alternator Pulley
PCM controlled voltage regulator
8314
3W3U-10300-AA
3W3Z-10346-AARM
GL-547RM
3W3Z-10V346-AARM
GLV8-547RM
3W3Z-10346-AA
GL-547

Note: Some aftermarket re-manufacturers of alternators may install a regular pulley instead of a clutched pulley to lower cost.

There is also a clutched 6g alternator used in some of the 2005-2006 lincoln navigators and 2005-2006 ford expeditions. Two different alternator models were used in these vehicles, so finding a pre-owned "large case" clutched model that you're after can be difficult because there are a lot of "small case" unclutched models out there. A very limited number of 2003-2004 navigators/expeditions also will have clutched 6g alternators in them. But no clutched alternators were factory installed by ford in the 03-04 navigators/expeditions. Instead, ford issued a technical service bulletin (tsb) to their ford dealerships advising them to install a clutched alternator model if customers came in with certain electrical problems. Do note that the 03-06 navigator/expediton alternators with the clutch will have a 60mm pulley which is kind of large for a crownvic. The 03-04 navigator/expediton alternator (WAI 1-2533-31FD) has an I-FR-A voltage regulator that should work in the 1992-2002 crownvics. The 05-06 navigator/expediton alternator (WAI 1-2668-31FD) has an  FR-SIG-A voltage regulator that should work in the 2003-2010 crownvics.

Regulator Plugs:

Part Number
Comments

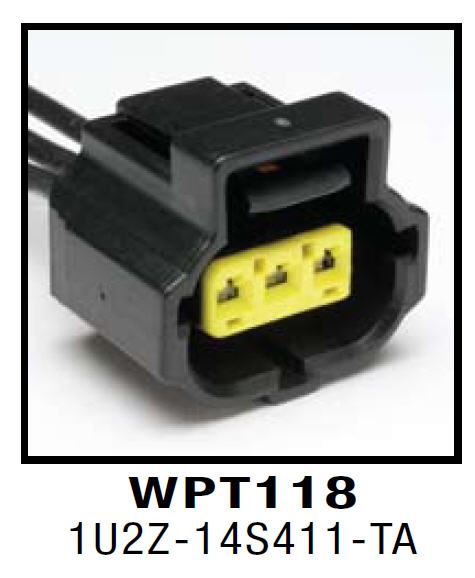

WPT-118
1U2Z-14S411-TA

Ford Regulator connector used on Ford 6G alternators
and also the Mitsubishi alternator factory installed in 2004+ police cruisers.

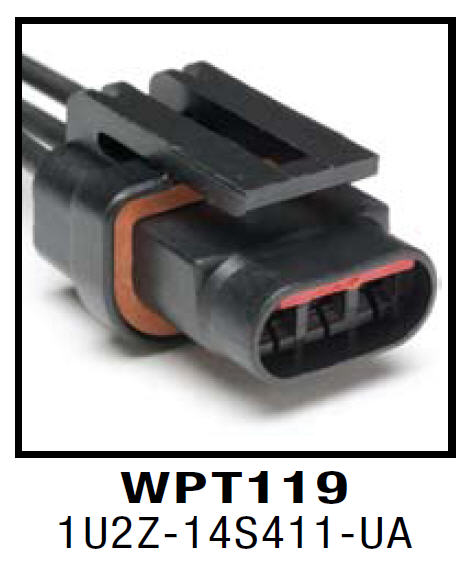

WPT-119
1U2Z-14S411-UA

Ford Regulator connector used on both Ford 3G and Ford 4G alternators
this regulator connector is also used in the legacy "box body" crown vics with the 2G alternator

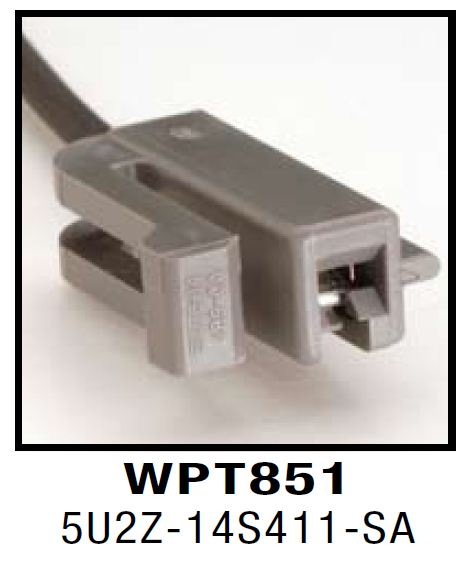

WPT-851
5U2Z-14S411-SA

Ford Single cavity male connector used on Ford 3G alternators


Napa ECH-EC261
Aftermarket regulator connector for Ford 6G alternators
Napa ECH-VRC441 Aftermarket regulator connector used on both Ford 3G and Ford 4G alternators
WAI 46-2802
Transpo WAA-794

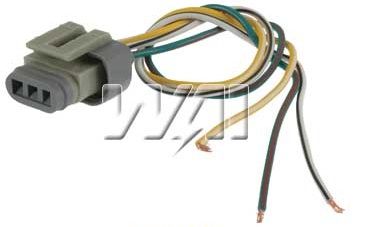

Aftermarket regulator connector for Ford 2G/3G/4G alternators
Transpo WAA-600

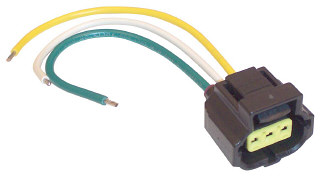

Aftermarket regulator connector for Ford 6G alternators
WAI 46-2804

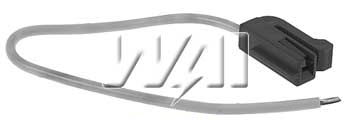

Aftermarket 3G Repair Harness - Stator Terminal

Note: The same electrical connector is used on the 1998+ crownvic 6G alternator regulator as on the 1995+ crownvic brake master cylinder reservoir fluid level sensor. But the master cylinder reservoir sensor has a ~20AWG wire on pin 3 rather than the ~14AWG wire that you need for a 6G alternator.

Regulator plugs also avaliable aftermarket from:
www.alternatorparts.com
www.napaonline.com
www.rjminjectiontech.com

Alternator->Intake Manifold brackets:

Part Number
From
To
Comments
F4AZ-10153-B
1992
1995
For old all aluminum intake manifold with old component layout
3G Alternator
Supercedes F1VY-10153-A and F4AZ-10153-A




F6AZ-10153-A
1996
1997
Plastic X-Over
3G Alternator
F8AZ-10153-EA
1996
1997
Service Aluminum X-Over
3G alternator




F8AZ-10153-AE
1998
2000
Plastic X-Over NPI Intake Manifold
6G Police Alternator
F8AZ-10153-GA
GY-1543
1998
2000
Aluminum X-Over NPI Intake Manifold
6G Police Alternator
F8AZ-10153-BA
1999
2000
Plastic X-Over NPI Intake Manifold
4G Civilian Alternator
F8AZ-10153-FA
GY-1542
1999
2000
Aluminum X-Over NPI Intake Manifold
4G Civilian Alternator




1W7Z-10153-BA
GY-1452
2001
2002
Plastic X-Over PI Intake Manifold
6G Police Alternator
1W7Z-10153-DA
GY-1455
2001
2004
Aluminum X-Over PI Intake Manifold
Ford 6G Alternator
2004+ Mitsubishi Police Alternator
1W7Z-10153-AB
2001
2002
Plastic X-Over PI Intake Manifold
4G Civilian
1W7Z-10153-CA
GY-1454
2001
2004
Aluminum X-Over PI Intake Manifold
4G Civilian




3W3Z-10153-BA
GY-1554
2003
2004
Mercury Marauder DOHC Only
??Supercedes 3W3Z-10153-AA??




9W7Z-10153-A
GY-1566
2005
2009
Aluminum X-Over
Ford 6G Civilian Alternator
2004+ Mitsubishi Police Alternator
No raised area to protect fuel rail crossover hose
Fuel rail crossover hose relocated towards back of engine on later cars
Supercedes: 5W7Z-10153-BA GY-1552

Note: The engine appearance cover may need to be replaced with a different unit after a different alternator bracket is installed. The appearance cover serves no mechanical purpose and is cosmetic only. Many police departments remove this cover as soon as their cruisers are placed into service, and never reinstall it.

Note: The alternator upper bracket in the 1998+ cars serves two purposes. It's a crash bracket to protect the fuel rail in a really high energy frontal collision. It also holds the alternator stationary so the bottom mounting bolts aren't overloaded. The normal mounting load on this part is very minimal, and some people have run their crownvics without this bracket installed for short periods of time without a problem. Some have even run their cars for years without the top alternator bracket installed, but others have had the bottom two bolts break leaving them stranded on the side of the road without any front engine drive accessories rotating anymore. Do note that without the waterpump spinning, engine coolant will really heatup and your engine could be damaged beyond economic repair or seize up all together.

6W7Z-10344-AA
GP-749
2004-2008 Police Interceptor Clutched Mitsubishi Alternator Pulley
Supercedes: 4W7Z-10344-AA GP-748

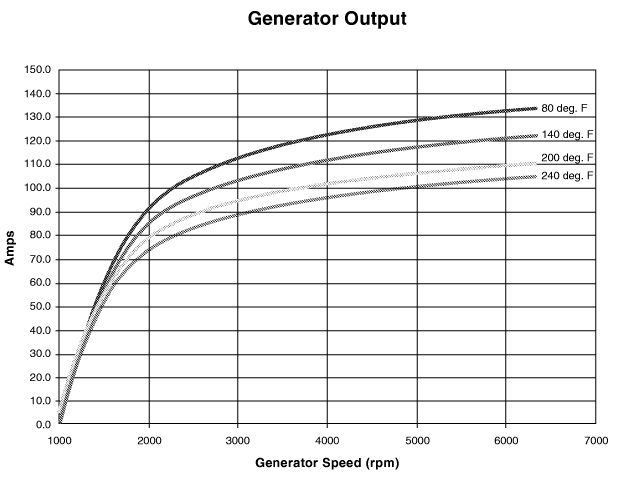

Here is a graph from the 2003 police interceptor modifers guide showing a graph of the 6G alternator shaft speed versus alternator output. Keep in mind that the alternator is overdriven and spins faster than the engine crankshaft.

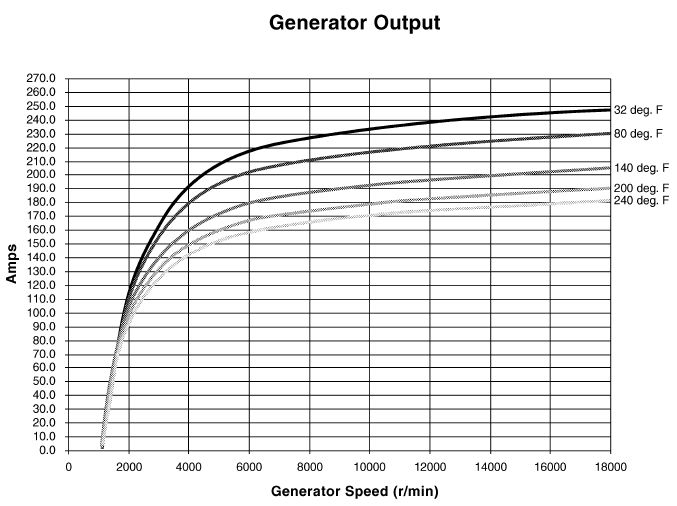

Here is a graph from the 2004 police interceptor modifers guide showing a graph of the 190amp mitsubishi alternator shaft speed versus alternator output. Keep in mind that the alternator is overdriven and spins faster than the engine crankshaft.
